JBL JSBT Series - Amplifier Functions; MP3 Player Unit Controls

7
8
1
2
3
12
3
+
+
+
-
-
-
-
MODE
AMPLIFIER FUNCTIONS
1 - INPUT AC:equipment power supply input and fuse port (3.15A);
2 - HH SELECTOR: 127V or 220V selector switch;
3 - ON/OFF SWITCH: it turns the equipment on when in position 'I' or off
when in position '0';
4 - LINE OUT - connector with SPLIT function, allowing connection of two
or more JS-BT boxes active among themselves;
IMPORTANT: 'this input is located post pre-amplication in the circuit.
When a box is turned off, the remaining boxes connected to it will not
output audio.'
The connection cable between the boxes must be type XLR 'Male'/XLR
'Female'
PLUG XLR (BALANCEADO)
1 - Ground
2 - Signal
3 - Negative
PLUG XLR (BALANCEADO)
5 - MIC IN - input connector for microphone type P10 (1/4" TRS) or XLR.
This input has a 20 dB gain regarding the line input (LINE IN);
6 - LINE IN - line input connector type RCA stereo or XLR;
7 - MP3 PLAYER UNIT CONTROLS - exclusive controls for the MP3
Player unit;
8 - SD CARD - SD audio input, compatible with MP3 les;
9 - DYMANIC LCD DISPLAY - with le and folder control;
10 - USB - USB audio input, compatible with MP3 les;
11 - MIC GAIN CONTROL - used for adjusting the microphone signal input
gain;
12 - LINE GAIN CONTROL - used for adjusting the line signal input gain;
13 - VOLUME CONTROL - used for adjusting the system general gain;
14 - TREBLE CONTROL - it is part of the equalizer and its function is to adjust
the high frequencies
15 - BASS CONTROL - it is part of the equalizer and its function is to adjust
the low frequencies;
16 - LED INDICATORS:
GREEN LED: when it ashes, it shows that the amplier is on.
RED LED: it shows that the amplier is saturating the audio signal. When
this happens, the volume or the equipment gain must be reduced.

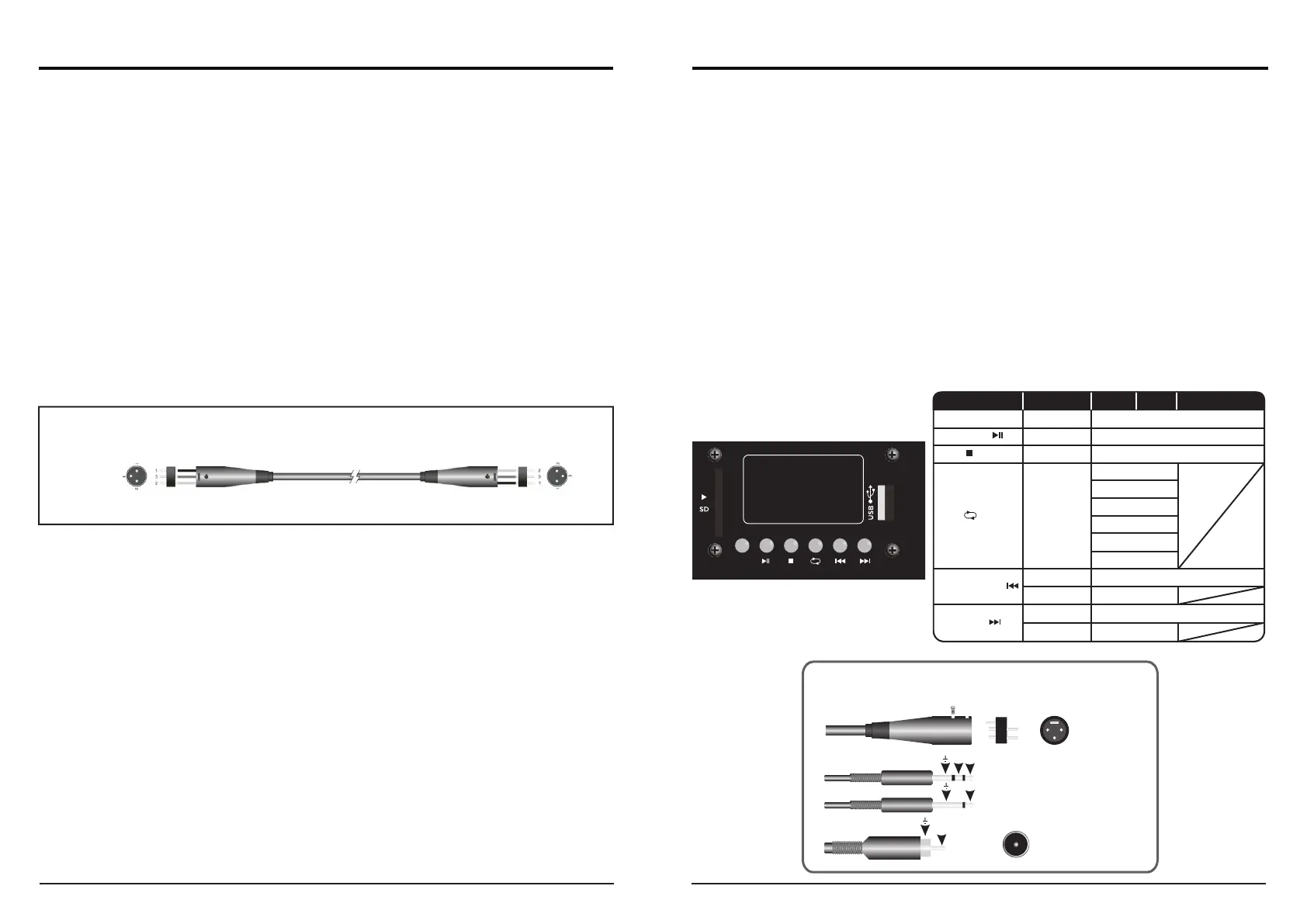

MP3 PLAYER UNIT CONTROLS
Connector XLR
Connector 1/4" (P10)
RCA Connector
3 - Negative
2 - Signal
1 - Ground
CONNECTORS
JSBT Line
JS-8BT / JS-10BT
JSBT Line
JS-8BT / JS-10BT
COMMAND USAGE USB SD BLUETOOTH
MODE Brief touch Select mode
Play/Pause Brief touch Play/pause
Stop Brief touch Stop/Access les
Loop Brief touch
1- Repeats the track selected
F - Repeats all tracks in folder
N - Plays the entire list
R - Plays the tracks randomly
I - Plays the introduction (10s)
repeatedly
A- Plays the entire list repeatedly
Brief touch
Pushing
Moves to the previous track
Volume Down
Brief touch
Pushing
Moves to the next track
Volume UP
Move Previous
Move Next
