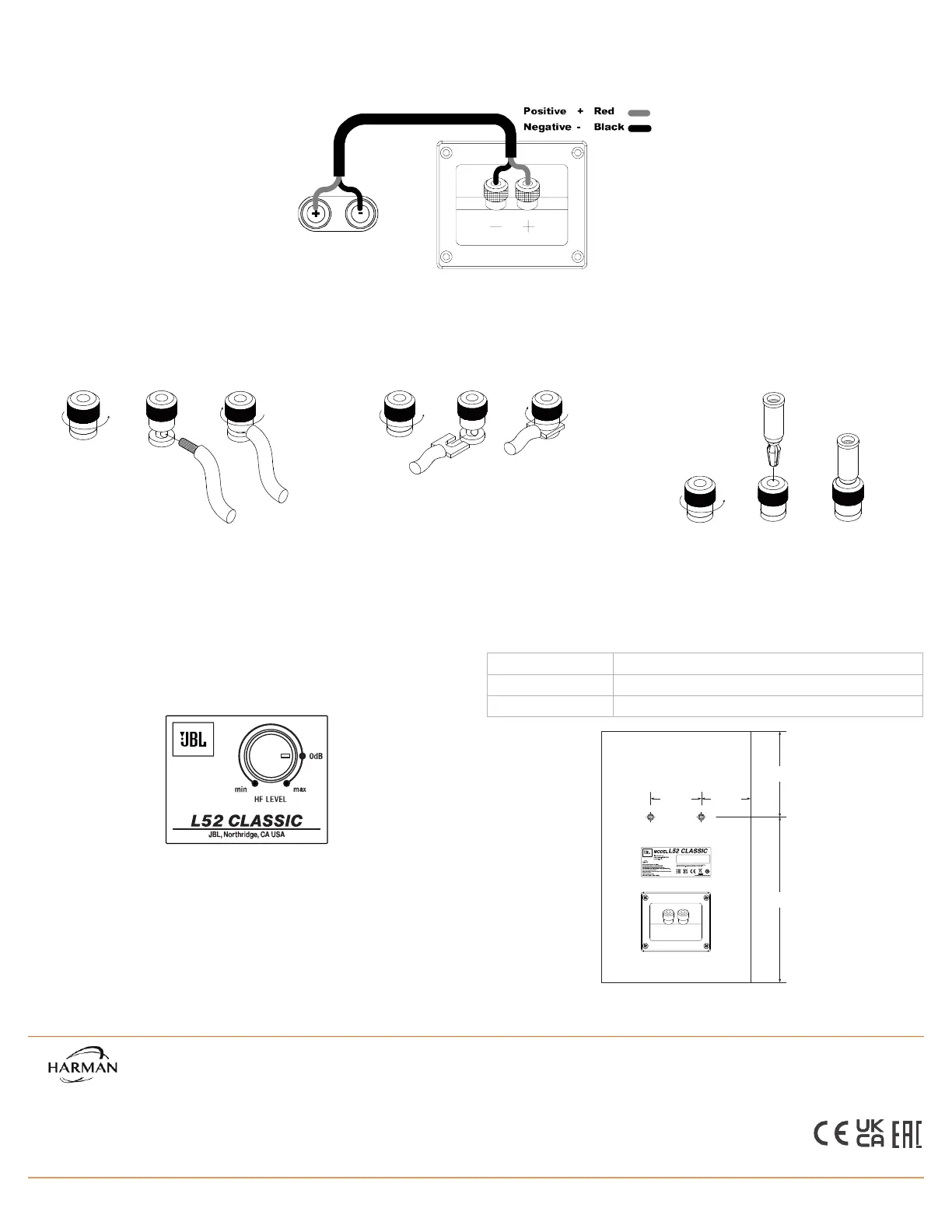

Wiring and Connections

IMPORTANT! Wiring Precautions

●

Ensure that the positive (+) and negative (-) bare wire or spades DO NOT touch when connected to the binding posts as this will short out the amplifier

channel.

●

Ensure that the appropriate polarity is maintained from amplifier to speaker to ensure proper phase for both speakers.

1 2 3

Bare Wire

2 31

Spade Connector

1 2 3

Banana Plug

Controls and Adjustments

This speaker features a HF level control that can be used to adjust the HF

level independently from the level of the woofer. The default setting of 0dB

represents a flat balance between the woofer and tweeter, however in some

cases there may be a need to adjust the level of the tweeter.

●

For rooms where the high frequencies sound bright, lower the relative HF

level by turning the knob counterclockwise.

●

For rooms where the high frequencies sound dim, raise the relative HF

level by turning the knob clockwise.

Wall Mounting

The L52 contains threaded inserts on the rear to allow for the L52 to be wall

mounted. A mount is not available from Harman, but the spec below will allow

for properly using these threaded inserts.

Wall Bracket Specifications:

Size: M6 x 1.0 thread, 12 mm max screw length

Spacing 2.64in (67 mm) center-to-center

Minimum Weight 11 lbs. (5.0 kg)

67.0mm.

(2.64 in.)

64.9mm.

(2.56 in.)

112.74mm.

(4.44 in.)

218.23mm.

(8.59 in.)
