JBL MS115 - Page 2

JBL MS115/WH
JBL MS115/WH

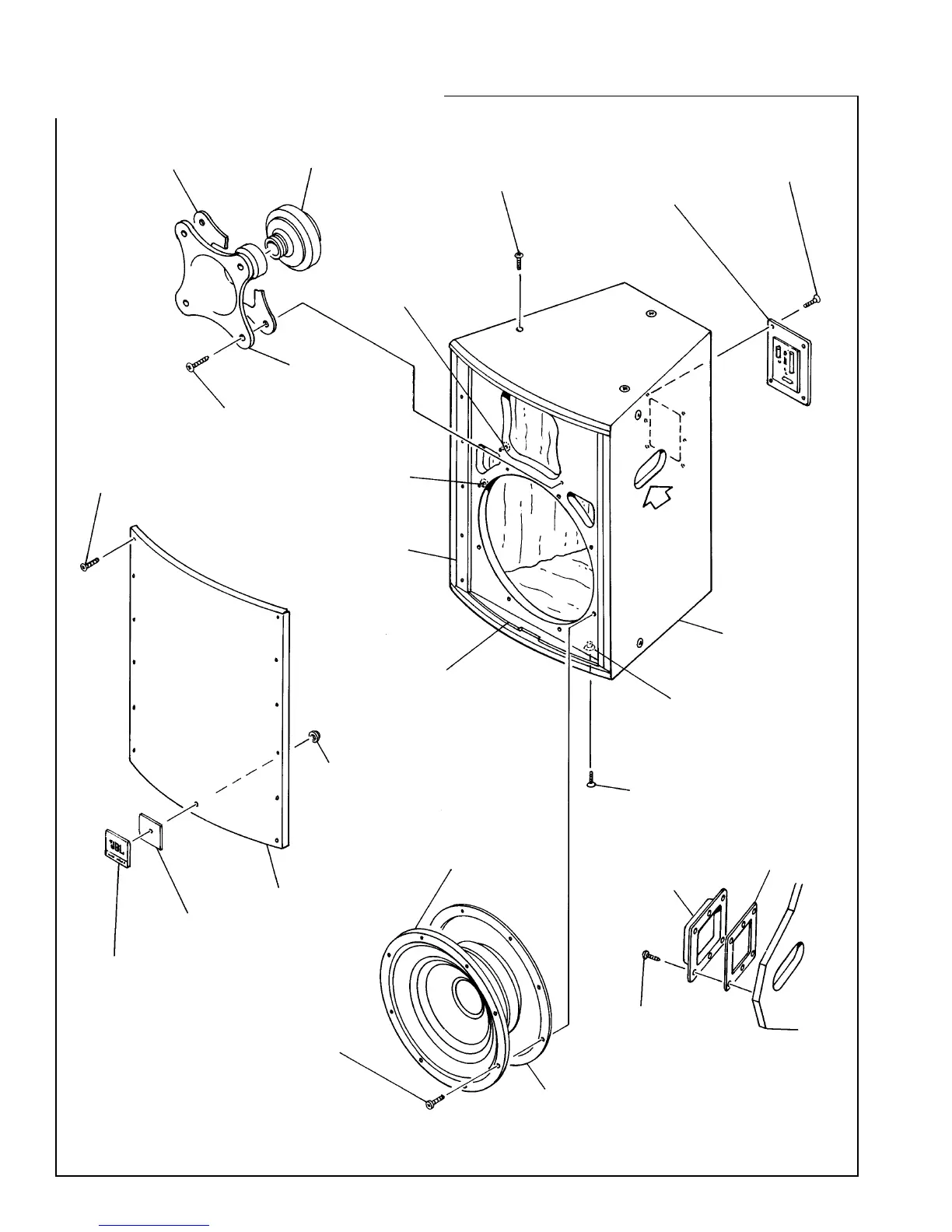

COMPONENT EXPLODED VIEW
Gasket, Cup (2)
359-00061-06
T-Nut (8)
61861
10-32
T-Nut (4)
61860
8-32 x 11/32
T-Nut (2)
805-90000-00
M8 x 9.2mm LG
Grille Stick (2)
389-00014-00
Horn
126-00013-00
Screw (4)
N52014
No. 8-32 x 1-1/4
PH FLTHD BLK
Logo
950-00031-00
Cup, Handle (2)
923-00017-00
923-00018-01 (Wh)
Screw (12)
66740
No. 8 x 1/2
PN PH PB
Screw (12)
707-11810-25
M10 x 1.5 x 25
FL PH BLK
Speaker,
High Freq
2418H
Diaph Repl
D8R2418
Repl Unit
315436-001X
Screw (8)
33841
No.10-32 x 1
FIL FLHD
Treated Cones:
Install Sheet 980-00037-00
WR2 (2 oz)
WR16 (16 oz)
Grille
Support (2)
389-00015-00
Cabinet
(Not For Sale)
Grille
128-00323-65
128-00323-00 (Wh)
Speaker,
Low Freq
2032H
(318219-001X)
Cone Repl
C8R2032
Network
129-20039-00
Logo Pad
55830
Keps Nut
803-30110-00
10-32 BLK
Gasket
359-00200-03
Gasket
359-00110-03
Screw (6)
61867
No. 6 x 3/4
OVHD PH
Screw (12)
61867
No. 6 x 3/4
OVHD PH
Screw (2)
706-11810-25
M8 x 1.25 x 25mm
FL PH BLK
*
*
A
VIEW A
NOTE: BLACK DURAFLEX REPAIR
KIT 16677
WHITE DURAFLEX REPAIR KIT
16679
