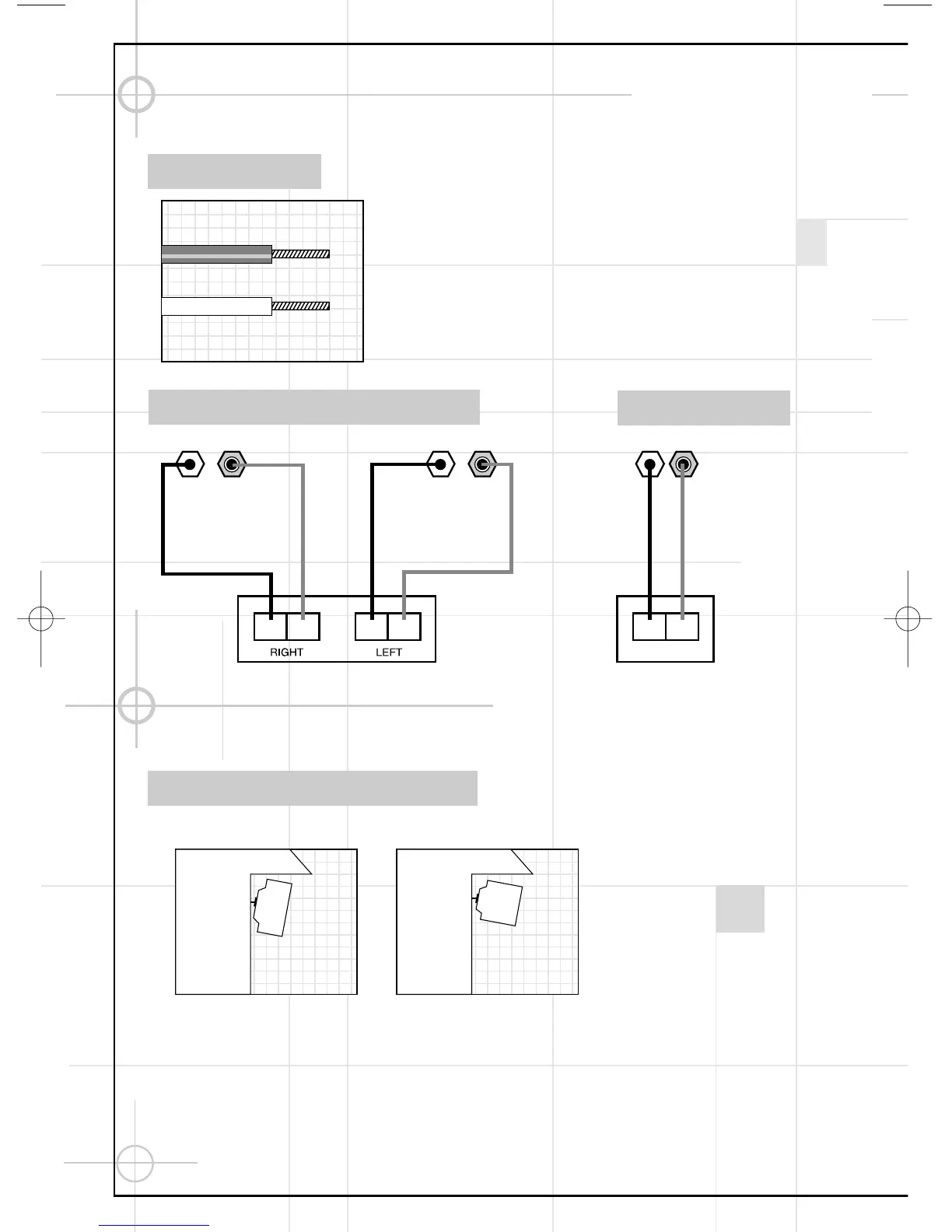

JBL N24 - Speaker Connections and Mounting; Speaker Connection Tips; N24, N24 AW, N26, N26 AW Connection Diagrams; N-CENTER Connection Diagram

CONNECTION TIPS
SPEAKER CONNECTIONS
WALL MOUNTING
Speakers and electronics
terminals have corre-
sponding (+) and (–)
terminals. It is important to
connect both speakers
identically: (+) on the
speaker to (+) on the
amplifier and (–) on the
speaker to (–) on the
amplifier. Wiring “out of
phase” results in thin
sound, weak bass and a
poor stereo image.
MODELS:N24,N24AW,N26,N26AW
The Northridge Series
speaker models indicated
above may be wall-mounted.
The customer is responsible
for proper selection and use
of mounting hardware,
available through hardware
stores, to properly and safely
wall-mount the speakers.
This product is not intended
for ceiling mounting.
Adjustable wall-mounting
brackets are included with
models N24 and N24AW.
Optional adjustable wall-
mounting brackets are
available from JBL for
models N26 and N26AW.
Contact your dealer or call
800-336-4JBL for a dealer
near you.
Vertical
Horizontal
– +– +
– +
Speaker Outputs
LEFT
RIGHT
– +
MODELS:N24,N24AW,N26,N26AW
MODEL:N-CENTER
Speaker Outputs
– +
CENTER
CENTER
– +
