3) If your receiver/ampli-
fier has preamp output
jacks and main input
jacks for the left and
right channels or you
have a separate pre-
amp/processor and
power amplifier.

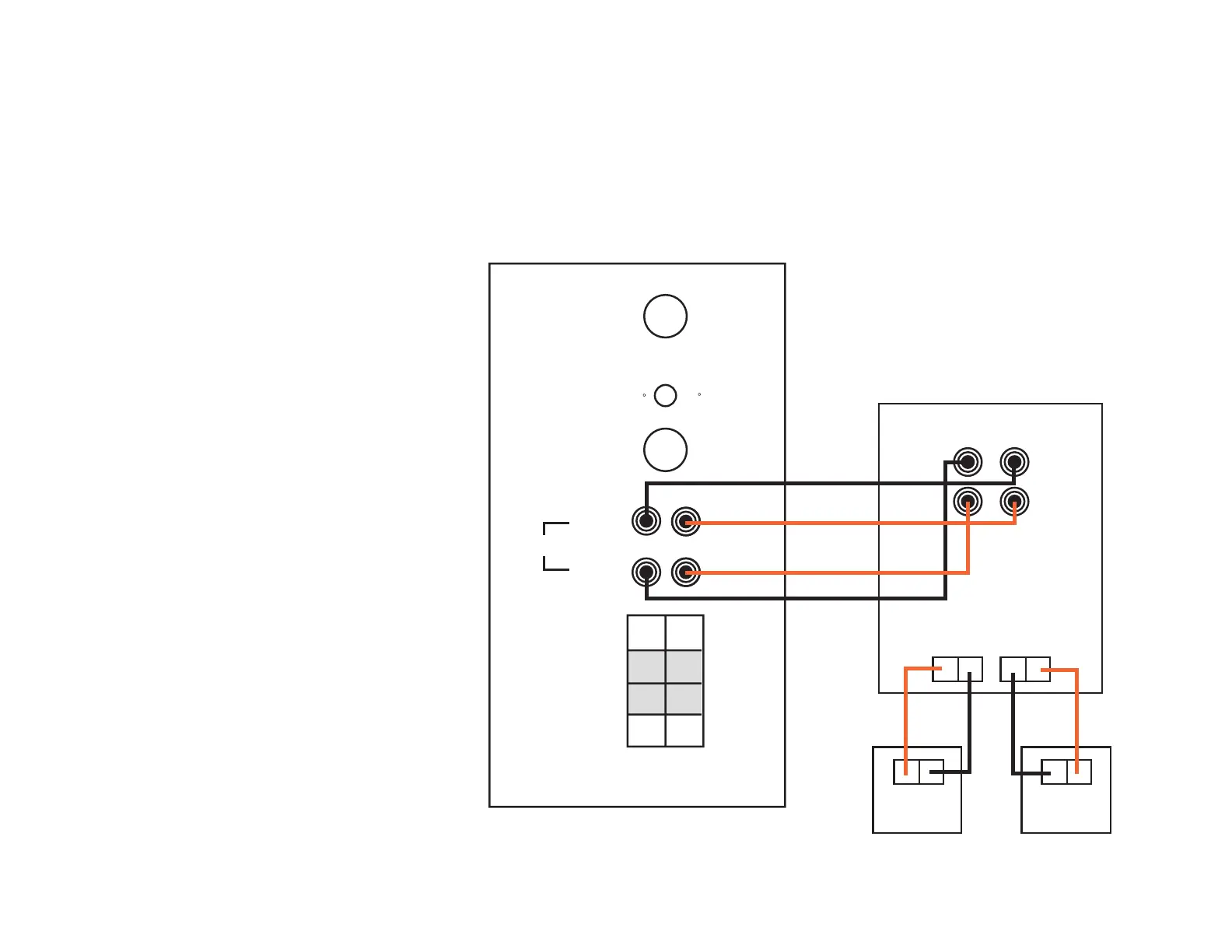

This method of hookup can
offer the highest level of per-
formance for your complete
loudspeaker system. The
PSW-D110 incorporates a
variable high-pass crossover
in addition to a variable
low-pass crossover. When
hooked up as shown above,
the subwoofer will limit the
low-frequency information
that is returned to your
receiver/amplifier. Your
receiver/amplifier does
not need to waste valuable
power reproducing the low
frequencies. In addition,
since no
low-frequency
information is being sent
to your main loudspeakers,
they are able to reproduce
mid and high frequencies with
greater clarity.
RECEIVER/AMPLIFIER
MAIN SPEAKER OUTPUT
LEFT
RIGHT
RIGHT
+ –
RIGHT
LOUDSPEAKER
LEFT
+ – – +
– +
LEFT
LOUDSPEAKER
PRE
OUT
MAIN
IN
Line
SPKR
Out
SPKR
In
High
Pass
High-Pass
Output
Input
Phase
L R
60
180
0
180
120
90 150
Low
Pass
60
180
120
90 150
L
R
L
R
+
–
–
+
+
–
–
+
PSW-D110 OM 7/17/98 11:51 AM Page 5

JBL PSW-D110 Specifications

Power

power output (RMS)	150 watts

Driver

driver size	10"
driver material	High-Polymer Laminate

Inputs and Outputs

inputs	Line Level and Speaker Level
outputs	Line Level and Speaker Level

Frequency

frequency range	60Hz – 180Hz
frequency response	30Hz – low-pass crossover setting

Weight and Dimensions

dimensions	15-3/8 x 15-3/8 x 17" / 391 x 391 x 432mm
weight	33 lbs / 15 kg
