JBL SCS136 User Manual

7
DOLBY* PRO LOGIC* (NON-DIGITAL)
– SPEAKER LEVEL
Use this installation method
for Dolby Pro Logic applica-
tions (not Dolby Digital, DTS
®
or other digital processing),
where the receiver/processor
does not have a subwoofer
output, or a volume-controlled
preamp (line-) level output:

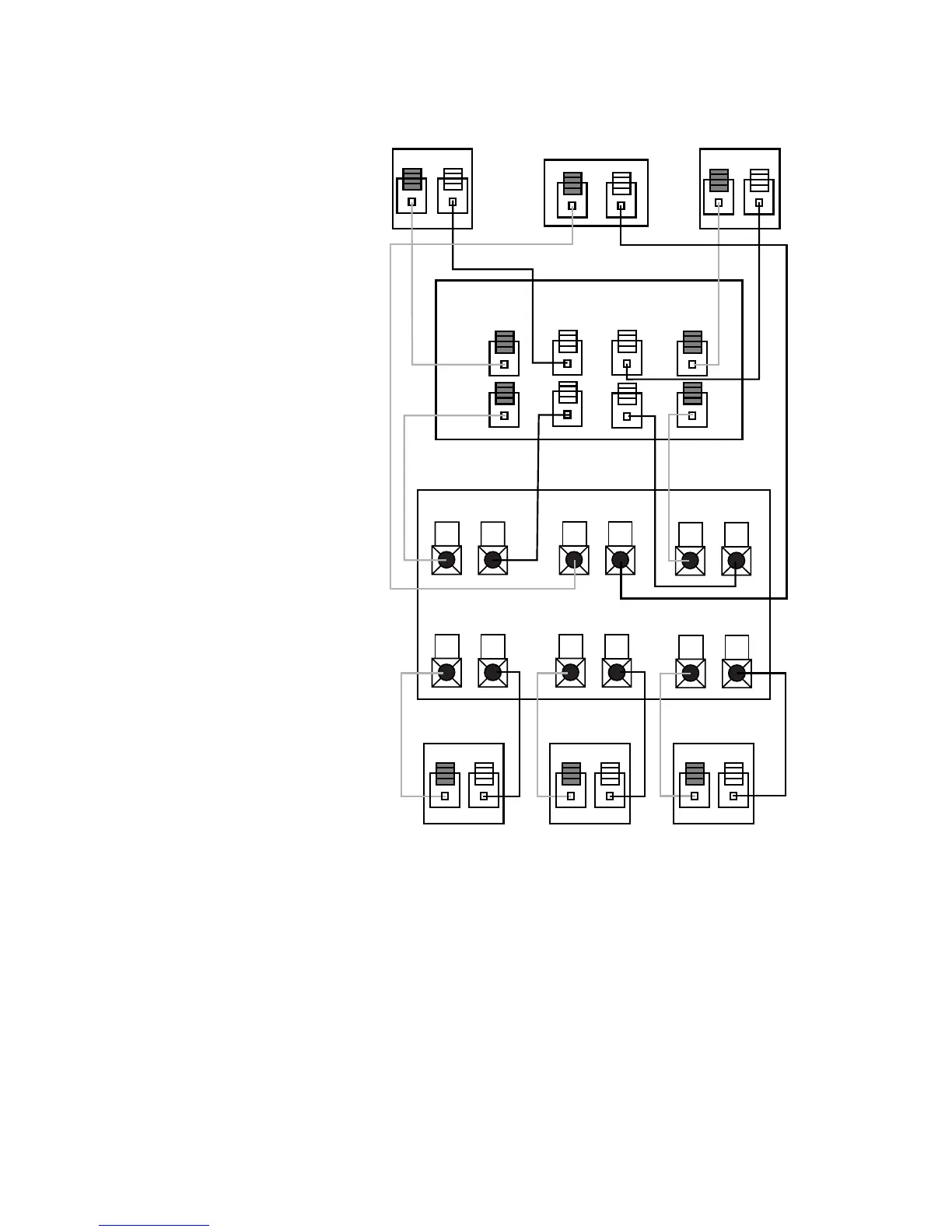

Connect your receiver or
amplifier’s front left and right
speaker terminals to the left
and right terminals on the
subwoofer that are marked
“High Level In.” Connect the
left and right terminals on the
subwoofer that are marked
“High Level Out” to the
corresponding terminals on
the back of your front left
and right speakers.
Connect your receiver or
amplifier’s center, surround
and surround back speaker
terminals to the correspon-
ding terminals on the back of
your center and surround
speakers.
Right Front
Right Surround
Left Front
Left Surround
Center
+ – + –
+ –
+ –
+ –
+ –
+ –
Left Front Center
+ –
Left Surround
Right Front
+ –
Right Surround
Surround Back
+ –
+ –
Surround Back
+ –
Subwoofer
Receiver
HIGH LEVEL
+ – – +
L R
OUT
IN
