JBL SRX712M
JBL SRX712M

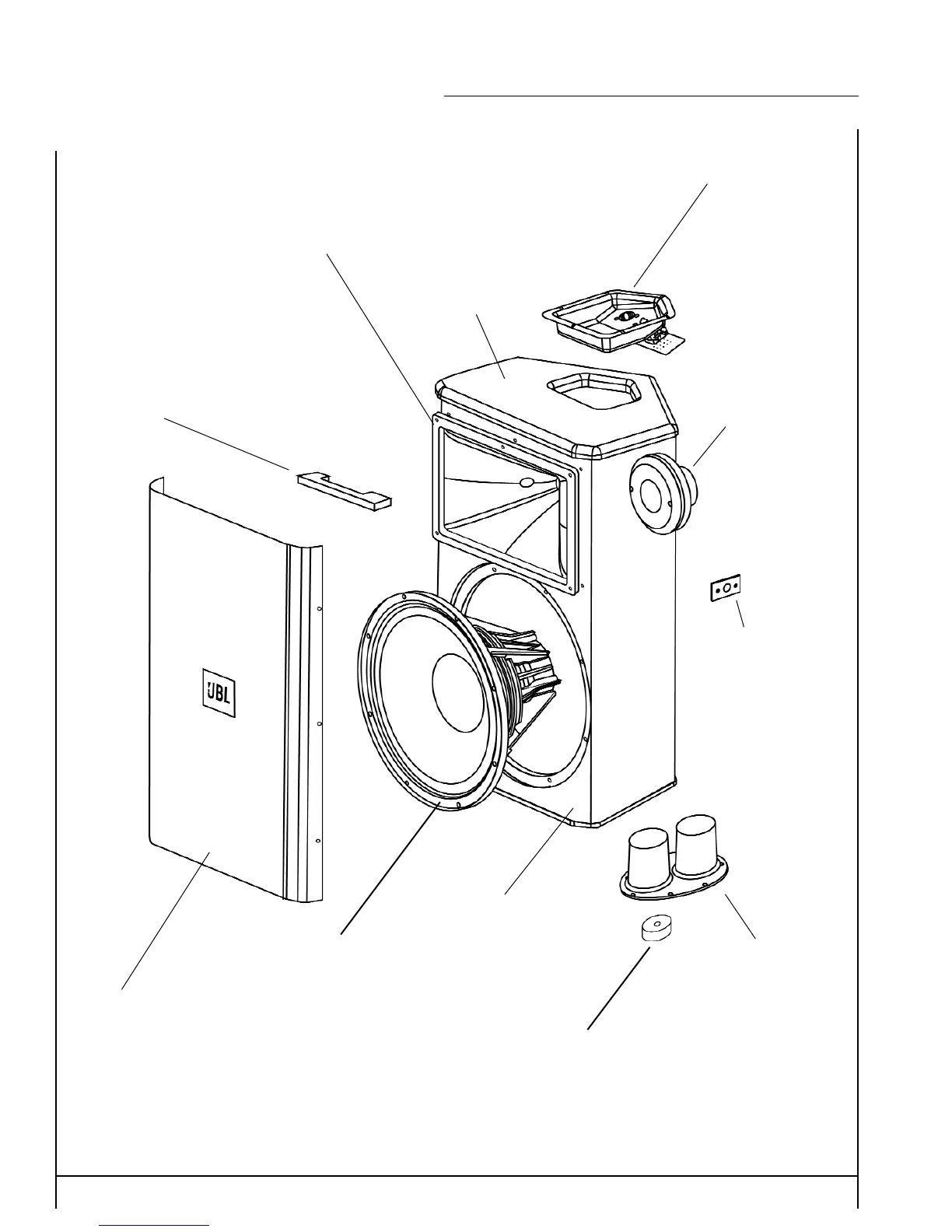

COMPONENT EXPLODED VIEW
Driver
Low Freq 2262HPL
(338312-004X)
Cone Repl
C8R2262
Gasket
339391-001
12” Woofer
Screw (8)
804-01110-16
10-32 x 1
FIL, PH, BLK
ZINC, LCS
Dust Dome
71646-06
Foot (8)
353445-001
Screw (8)
884-41110-12
10 x 3/4
PAN, PH, PB,
BLK ZINC, LCS
Cup
Dual Pole
351256-001
Gasket
Dual Pole Cup
352957-001
Screw (6)
Pole Cup
804-41110-12
10-32 x 3/4
PAN, PH, PB,
BLK ZINC, LCS
T-Nut (6)
352214-001
10-32 x 1/4
Zinc Plated
Enclosure Assembly
(Not for Sale)
Grille Support
352486-002
Input Cup Assembly
353425-006
Screw (8)
882-51110-12
6 x 3/4
OV, PH, PTCL, BLK
Zinc, LCS Screw,
Screw (6)
883-41110-08
#8 x 0.5
PAN, PH, PB, BLK
ZINC, LCS
Kurly-Lok (4)
925-00005-01
Input Plate Overlay
353425-006
T-Nut (14)
61861
10-32 x 7/16
Step Barrel
Grille
352248-001
Grille Badge
353849-001
Screw (6)
882-51110-12
6 x 3/4
OV, PH, PTCL,
BLK ZINC, LCS
Horn
353299-001
Gasket
353616-002
Screw (6)
804-41110-16
10-32 x 1
PAN, PH, BLK
ZINC, LCS
Screw (2)
806-73014-05
1/4-20 x 5/16
SKT, HEX, BLK
ZINC, ALLOY
Sticker,Horn
337882-001
Driver, High Freq
2431H
(339894-001X)
Diaph Repl
D8R2431
Screw (4)
883-41110-08
#8 x 0.5
PAN, PH, PB, BLK
ZINC, LCS
Mounting Bracket (2)
338652-001
Flat Single
Bolt (2)
352051-001
M10 x 25mm
Hex Black
