[F1] HELP This is a compilation of help topics, tips and tricks on nearly every aspect of DACS4 operation.
[F2] AUTO–EQ Initiates automatic equalization of the active channel
[F3] ACCEPT Press [F3] when you have completed all adjustments on the active channel. Pressing [F3] transmits the
final settings to the SDEC, and puts a check mark in the channel status indicator.
[F4] TEST Runs a test of the currently active channel.
[F6] EXIT Program Quit.
[F7] Room EQ Inserts a special EQ instruction dialog in the online help window
[F8] GAIN/DELAY Pops up a dialog box that displays the current gain setting and the microphone-to-speaker
distance for all channels.

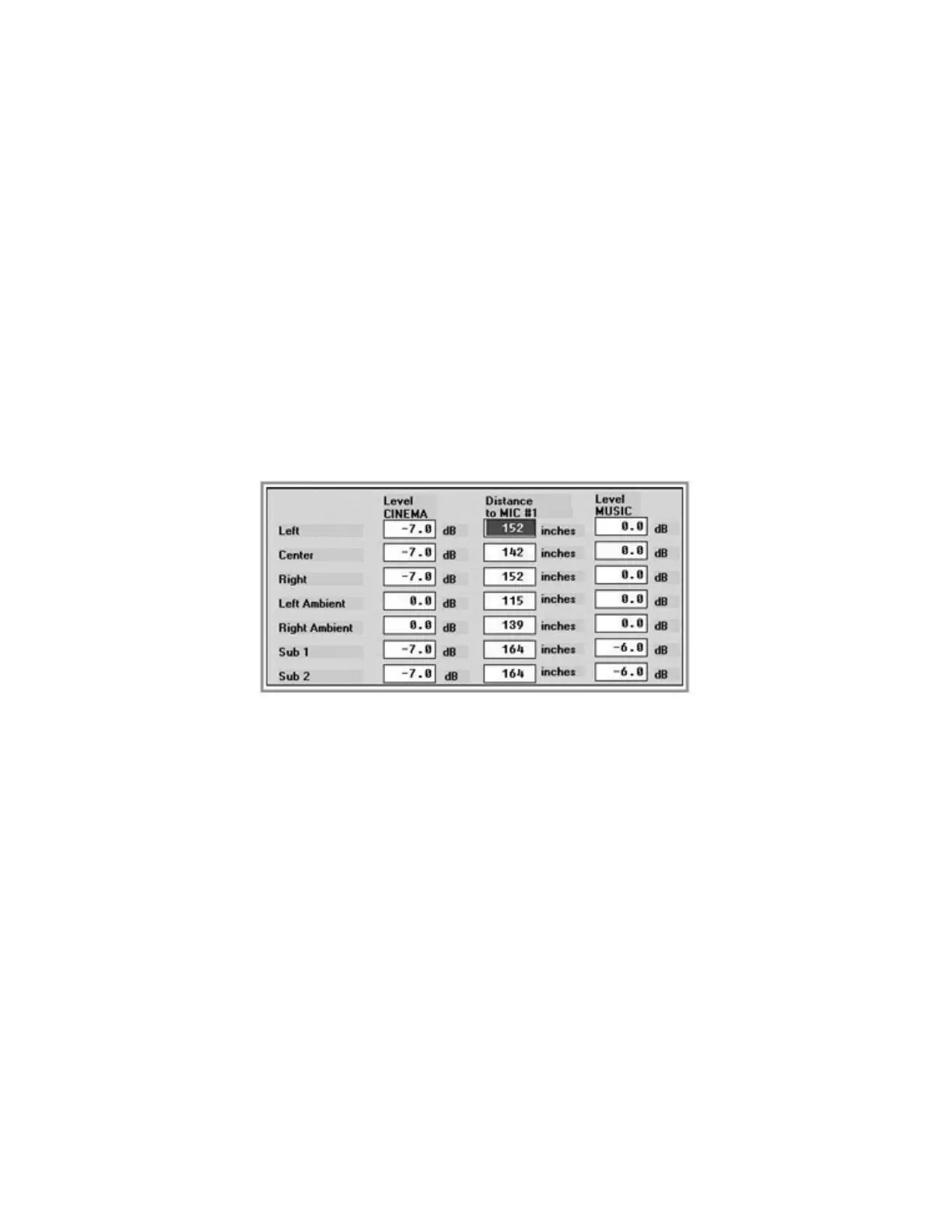

Figure 26:
Channel Gain and Delay Information
4.6
DACS4 MAIN SCREEN
45
