JBL VT4880A - Component Exploded View

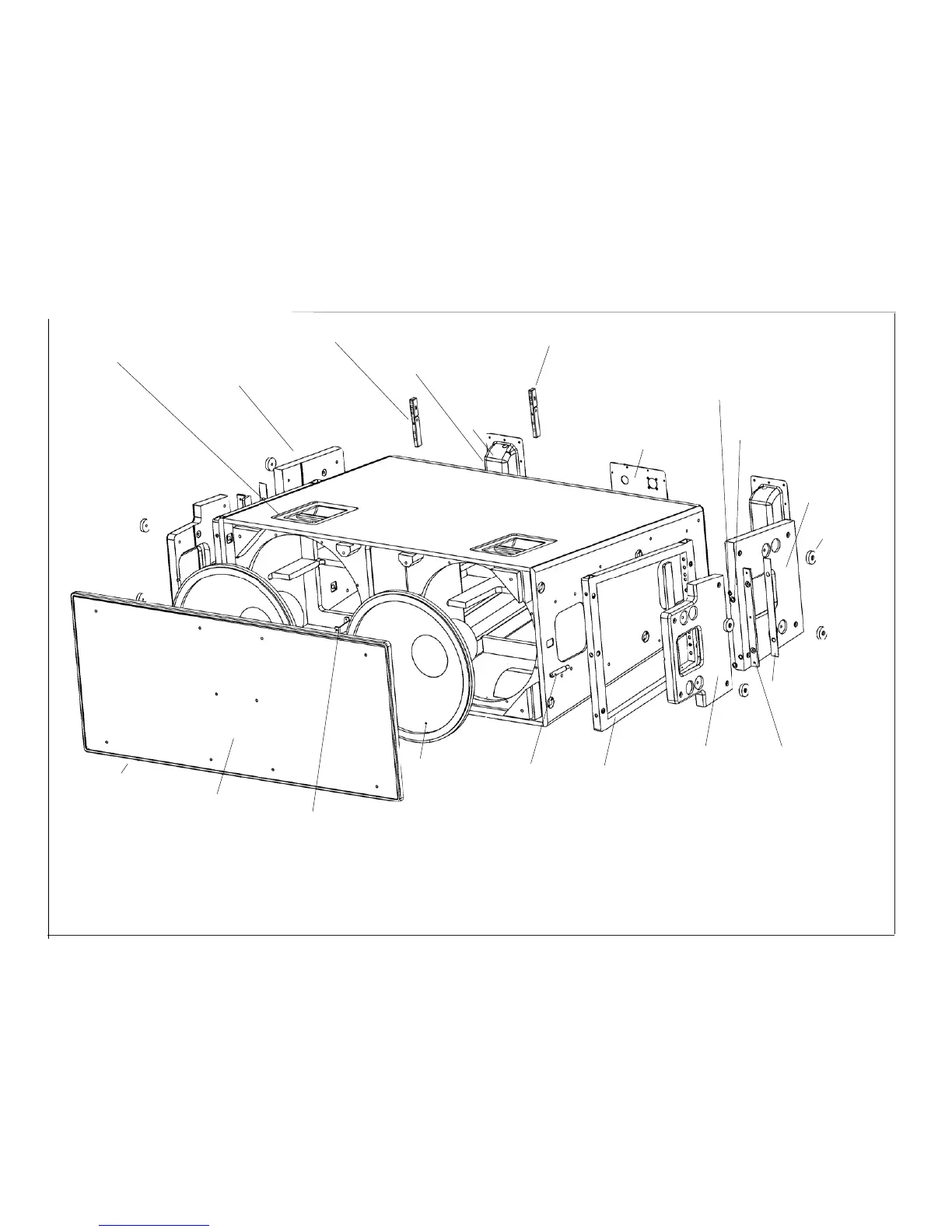

COMPONENT EXPLODED VIEW
JBL VT4880A
Grille Trim
338838-001
Grille
338792-001
Screw (10)
804-41110-12
10-32 x 3/4
PAN,TORX,BLK,
ZINC,LCS
Bracket (2)
361292-001
Screw (4)
882-41110-10
6 X 5/8
PAN,PH,PB,BLK,
ZINC,LCS
Driver, Low Freq
2269H
(354096-001X)
Cone Repl
C8R2269
Screw (16)
804-72110-24
10-32 X 1 1/2
SKT,TORX,BLK,
ZINC,LCS
Gasket, Rear (8)
60578
Gasket, (8) 18” Self Adh.
71848-03
Pin, Dolly Lock (2)
351798-002
Nut (2)
836-36110-00
3/8 - 24 Nylon,
BLK,ZINC,LCS,RIGHT
Retainer, Dolly Pin (2)
351696-001
Rigging Frame (2)
338978-001
Pin,Quick Release
361344-001
Screw (8)
804-41110-06
10-32 X 3/8
PAN,PH,BLK,
ZINC,LCS
End Cap, Front (2)
338941-001
Screw (8)
806-42010-32
1/4-20 X 2
PAN,TORX,BLK,
ZINC,LCS
Washer, Flat (8)
337183-001
25 X .5 ZINC
Hinge Lock Bar (2)
338950-001
Screw (6)
884-11000-12
FLT,PH,WD,
CLR,ZINC,
LCS
Lock Bar Cushion(2)
338951-001
Feet (8)
338948-001
Screw (8)
806-42010-32
1/4-20 X 2
PAN,TORX,
BLK, ZINC,LCS
End Cap, Rear (2)
338942-001
Screw (4)
806-42010-32
1/4-20 X 2
PAN,TORX,BLK,
ZINC,LCS
Washer (4)
844-01110-07
1/4 SAE,REG,BLK,
ZINC,CS
Washer, Flat (4)
337183-001
.25 X .5 ZINC
Wave
Washer (4)
339236-001
Washer Flat (4)
339235-001
Hinge Cushion (2)
339201-001
Input Connector
Assembly
360952-001
Screw (8)
804-42110-12
10-32 X 3/4
PAN,TORX,BLK,
ZINC,LCS
Handle (2)
364978-001
Gasket, (2)
360937-001
Screw (8)
804-42101-16
10-32 x 3/4
PAN,TORX,
BLK,ZINC,LCS
Washer, Amp Mount (8)
351905-002 (7/8”)
(Cabinet Back)
Screw (8)
806-42010-16
1/4-20 X 1
PAN,TORX,BLK,ZINC
Washer (8)
844-00110-06
1/4 X .06
FLTPL, REG,BLK
ZINC,CS
Handle (6)
923-00022-07
Screw (24)
804-42110-12
10-32 X 3/4
PAN,TORX,BLK,
ZINC,LCS
Screw (36)
884-42110-12
10 X 3/4
PAN,TORX,PB,BLK,
ZINC,LCS
Gasket, Handle (8)
382-00337-00
Knob, Slider
350839-002
Rear Hinge (2)
364597-001
R.A.P.
354965-001
Screw (12)
884-42110-12
10 X 3/4
PAN,TORZ,PB
BLK ZINC,LCS
Knob, Slider
350839-001
Front Hinge (2)
364596-001
R.A.P.
354965-001
JBL VT4880A
