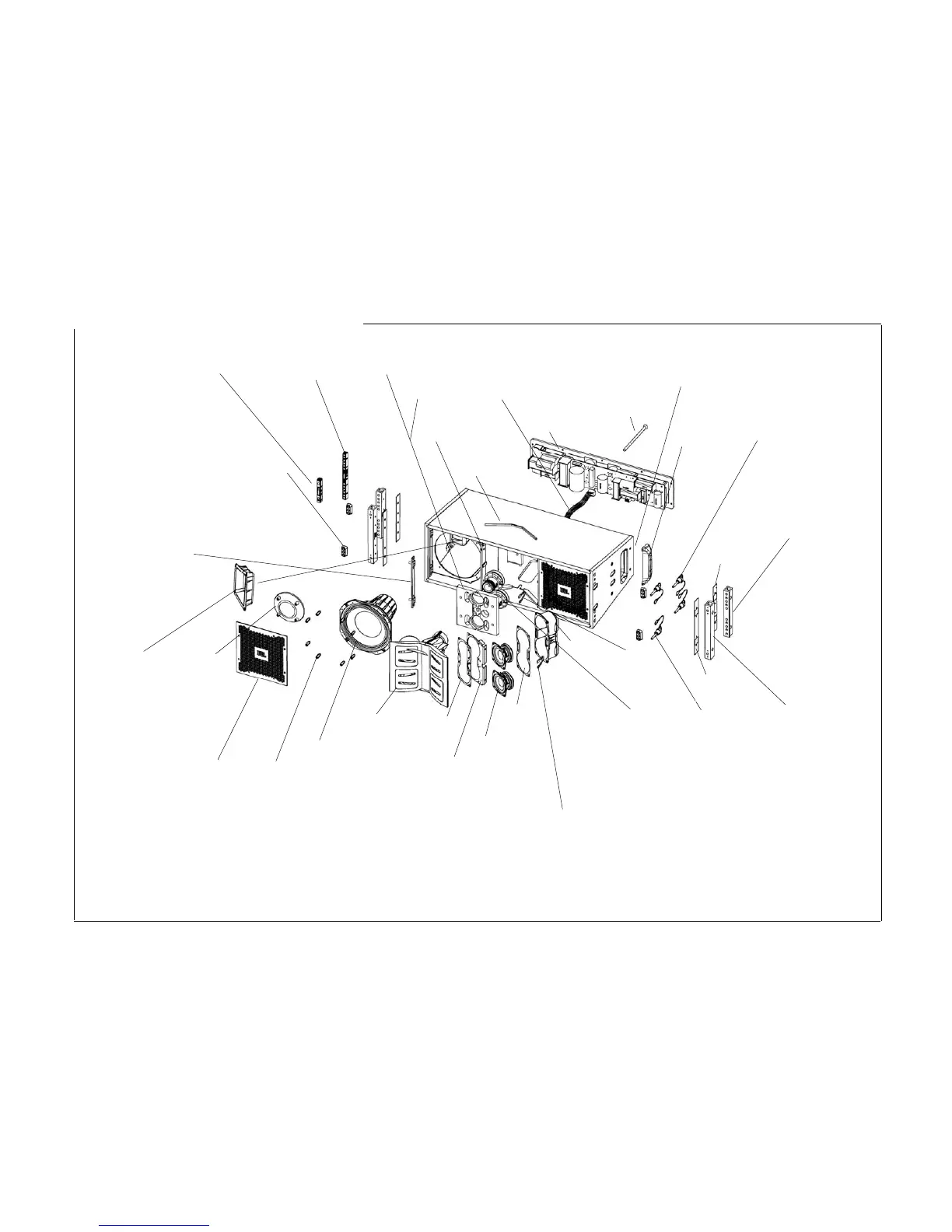

JBL VT4886 - Component Exploded View

Grille (2)
442452-001
Screw (16)
801-51010-04
4-40 x 1/4
OVAL,PH,
BLK ZINC,LCS
Grille
Standoff
(16)
443553-001
Threadlock
352951-001
9 Gram Stick
Loctite 248
Gasket,(2)
443514-001
Mid Cup
Handle Grip (2)
444163-001
Screw (4)
803-41010-10
8-32 x 5/8
PAN,PH,BLK
ZINC,LCS
Network Assembly
443492-001
Screw (10)
873-13014-08
8-32 x 1/2
FLT,SOC,BLK
ZINC,ALL
Screw
443996-001
1/4-20 x 5.5
FLT,
SOCKET
BLK
Bumper (4)
443552-002
Screw (8)
801-31010-05
4-40 x 5/16
TRUSS,PH,
BLK ZINC
LCS
Left RBI (2)
443946-001
Screw (8)
801-51010-04
4-40 x 1/4
OVAL,PH,BLK
ZINC,LCS
Driver, Low Freq. (2)
2166H
(442216-001X)
Cone Repl
C8R2166
Screw (8)
803-41010-08
8-32 x 1/2
PAH,PH,BLK ZINC,
LCS
Gasket (2)
443512-001
Dome (2)
31305-10
JBL VT4886
COMPONENT EXPLODED VIEW
JBL VT4886
Wire Harness
443670-002
Enclosure Assembly
C4886 (Available to
VerTec Dealers and
Service Centers)
Gasket (2)
443513-001
Bracket,
Horn/Mid,(2)
444666-001
Screw (4)
803-111010-08
8-32 x 1/2
FLT,PH,BLK
ZINC,LCS
443394-001
Horn Assembly
Driver,
Midrange (4)
2103G
(442205-001X)
Dome (4)
66136-002
Jumper,Mid (2)
443673-002
Mid Cup,(2)
443409-001
Plug,Cup
Midrange (2)
333050-002
Screw (16)
872-33004-09
6-32 x 9/16
CAP
Washer (16)
841-03100-00
SPLIT #6,
CLR ZINC
Driver,
High Freq.(2)
2414H
(342423-
002X)
Gasket
338463-001
(clocking)
place gasket
between the
H/F driver and
horn to align
termials with
plate
Jumper,HF
443672-001
Ball Lock Pin (4)
444618-002
Screw (4)
802-41010-02
6-32 x 1/8
PAN,PH,BLK
ZINC, LCS
*Shim,Front
444242-002
Suspension
Tube, Front (2)
444619-002
Screw (4)
873-13014-14
8-32 x 7/8#
FLT,SOC,
BLK ZINC,AL
Threadlock
352951-001
9 Gram Stick
Loctite 248
*Shim,Front
Suspension
Tube,Rear (2)
444612-002
Screw (4)
873-13014-14
8-32 x 7/8#
FLT,SOC,
BLK ZINC,AL
Threadlock
352951-001
9 Gram Stick
Loctite 248
**Shim,Rear
**Shim,Rear
444243-002
Ball Lock Pin (4)
444618-002
Screw (4)
802-41010-02
6-32 x 1/8
PAN,PH,BLK
ZINC, LCS
Gasket,Horn(2)
444698-001
Gasket,
Baffle Edge (2)
444697-001
Baffle,HF
444683-001
(Horn)
61861 (4)
10-32 x
7/16
Step Barrel
Screw (4)
804-41110-12
10-32 x 3/4
PAN,PH,BLK
ZINC,LCS
Hinge Assembly
Rear (2)
444613-001
0-Ring,Hinge
444853-001
(100 pcs)
Hinge Assembly
Front (2)
444614-001
0-Ring,Hinge
444853-001
(100 pcs)
Threadlock
352951-001
9 Gram Stick
Loctitie 248
Screw (2)
873-33014-10
8-32 x 5/8
SCKTCAP,HEX
BLK ZINC
(Slider Knob)
Bracket,
Front Rigging (2)
443477-001
Screw (8)
804-11110-10
10-32 x 5/8
FLT,PH,BLK
ZINC, LCS
Plastic Handle
Cup (2)
442476-001
(located in the
side panels)
Screw (2)
882-41110-06
#6x.375
PB,PPH,BLK
Screw (8)
883-41110-08
8 x 1/2
PAN,PH,PB,
BLK ZINC,
LCS
Inserts (4)
8161207-001
8-32x4MM,
HXS,KNIFE326
D08x10zc
Screw (4)
882-41110-06
PB,PPH,#6x
.375,BLK,
Shoulder Nut
Shoulder Nut,
Rigging (4)
441870-001
Washer (4)
843-00110-06
10 x .06
FLT,PL,REG,
BLK ZINC,CS
