03 - Attachments, Couplings and Load Handling
10 - Excavator End Quickhitch
00 - General
03 - 11 9813/7900-2 03 - 11
5. Press the Quickhitch switch on the switch
console. The light on the control isolation switch
will start flashing on the switch panel.
6. Within 5 seconds press the control isolation
switch. The red LED on the boom side will start
flashing, a constant tone buzzer will be heard.
7. To unlock the quickhitch it will be necessary to
pressurise the circuit by crowding the bucket
only.
8. The Quickhitch is now unlocked and 'Quickhitch
unlocked' symbol will display on the instrument
panel. At this point operator can cancel the
procedure by pressing the Quickhitch switch or
deactivating the hydraulics or turning the ignition
off and Quickhitch will be locked.
Figure 8.
9. For deactivating the hydraulic.
Engage - Manual
1. Set the attachment on solid, level ground. Use
safe and correct lifting equipment to move the
attachment.
2. Position the machine so that Quickhitch and
attachment are correctly aligned as shown for
connection.

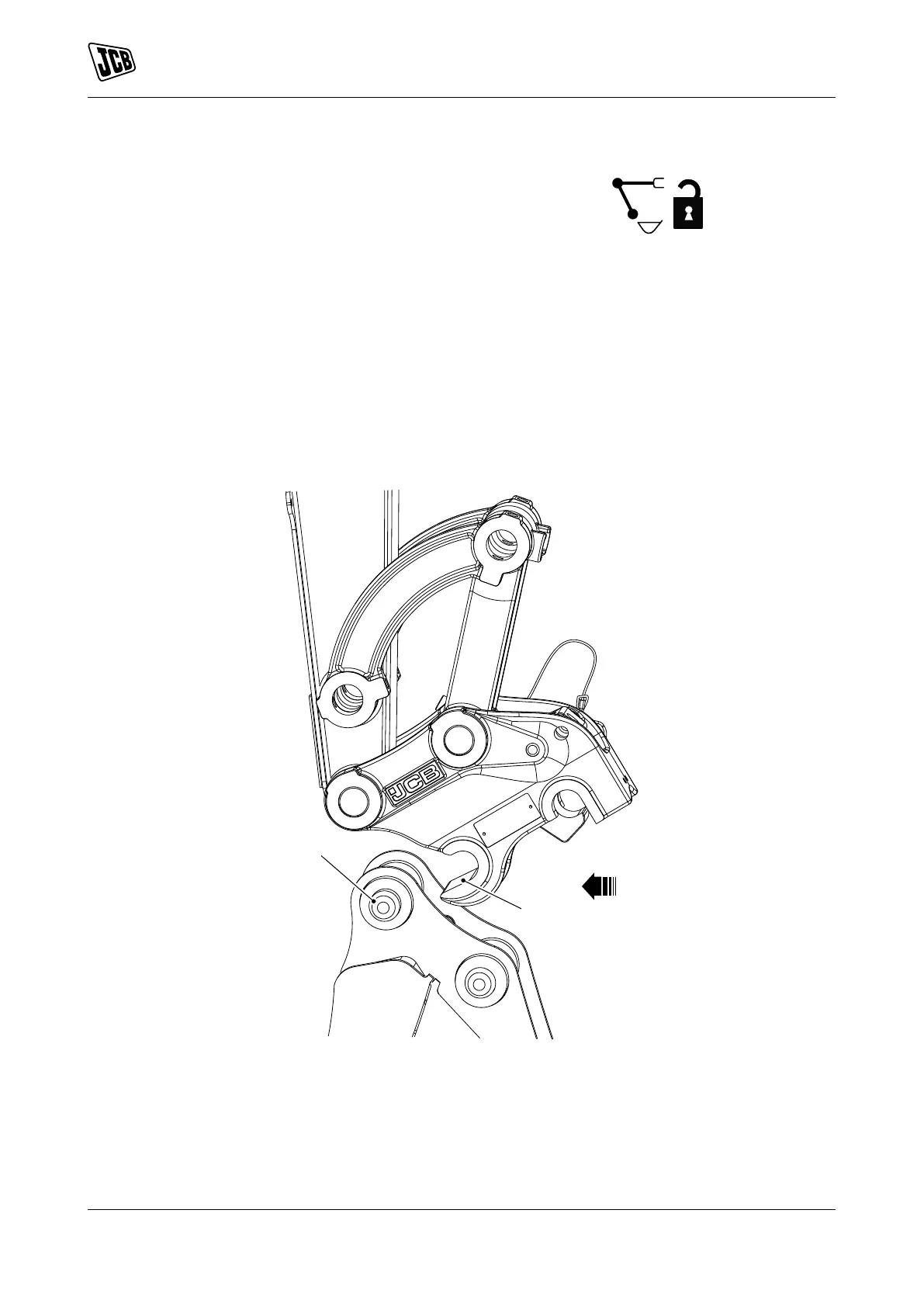

Figure 9.
A Jaw B Pivot pin
3. Use the excavator controls to engage the jaw
of the Quickhitch with the pivot pin of the
attachment.
4. Use the excavator controls to roll the Quickhitch
in the direction of arrow until the latch rests
against the pivot pin.
