03 - Attachments, Couplings and Load Handling
10 - Excavator End Quickhitch
00 - General
03 - 12 9813/7900-2 03 - 12

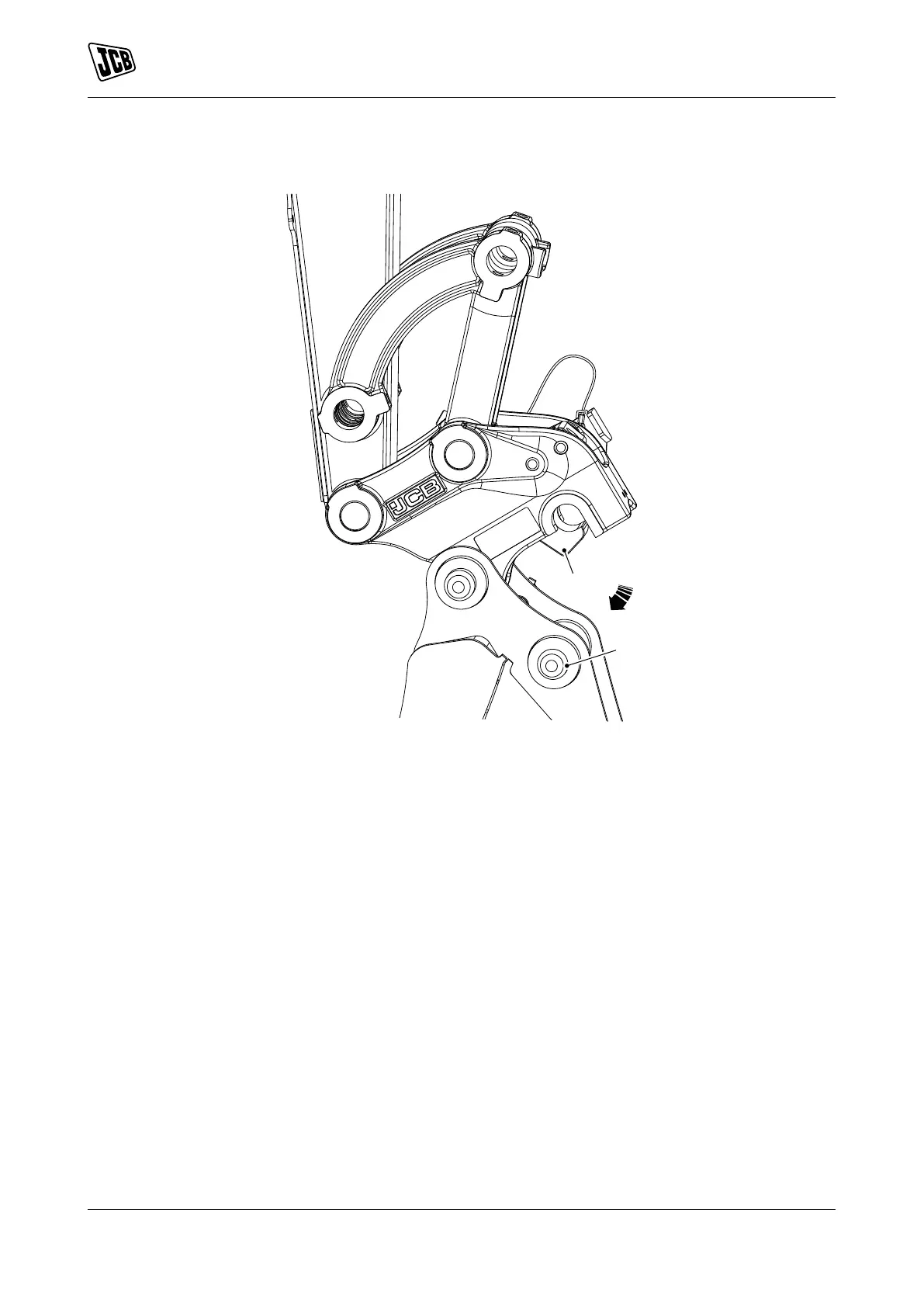

Figure 10.
A Latch B Pivot pin
5. Insert the tommy bar in latch hook hole to open
the latch.
WARNING! Make sure that the latch hook has
fully engaged, otherwise the attachment could
fall and you could be killed or injured
6. Make sure that the pivot pin has fully engaged
into the latch.
Disengage - Manual
1. Park the machine on solid, level ground.
2. Position the attachment just clear of the ground
and at an angle such that it does not detach
from the front pivot pin when the Quickhitch is
unlatched.
3. Stop the engine and disconnect the attachment
hydraulic hose(s) if fitted.
4. Insert the tommy bar into the hole of the latch
hook.
To Next Page
