03 - Attachments, Couplings and Load Handling
10 - Excavator End Quickhitch
00 - General
03 - 13 9813/7900-2 03 - 13

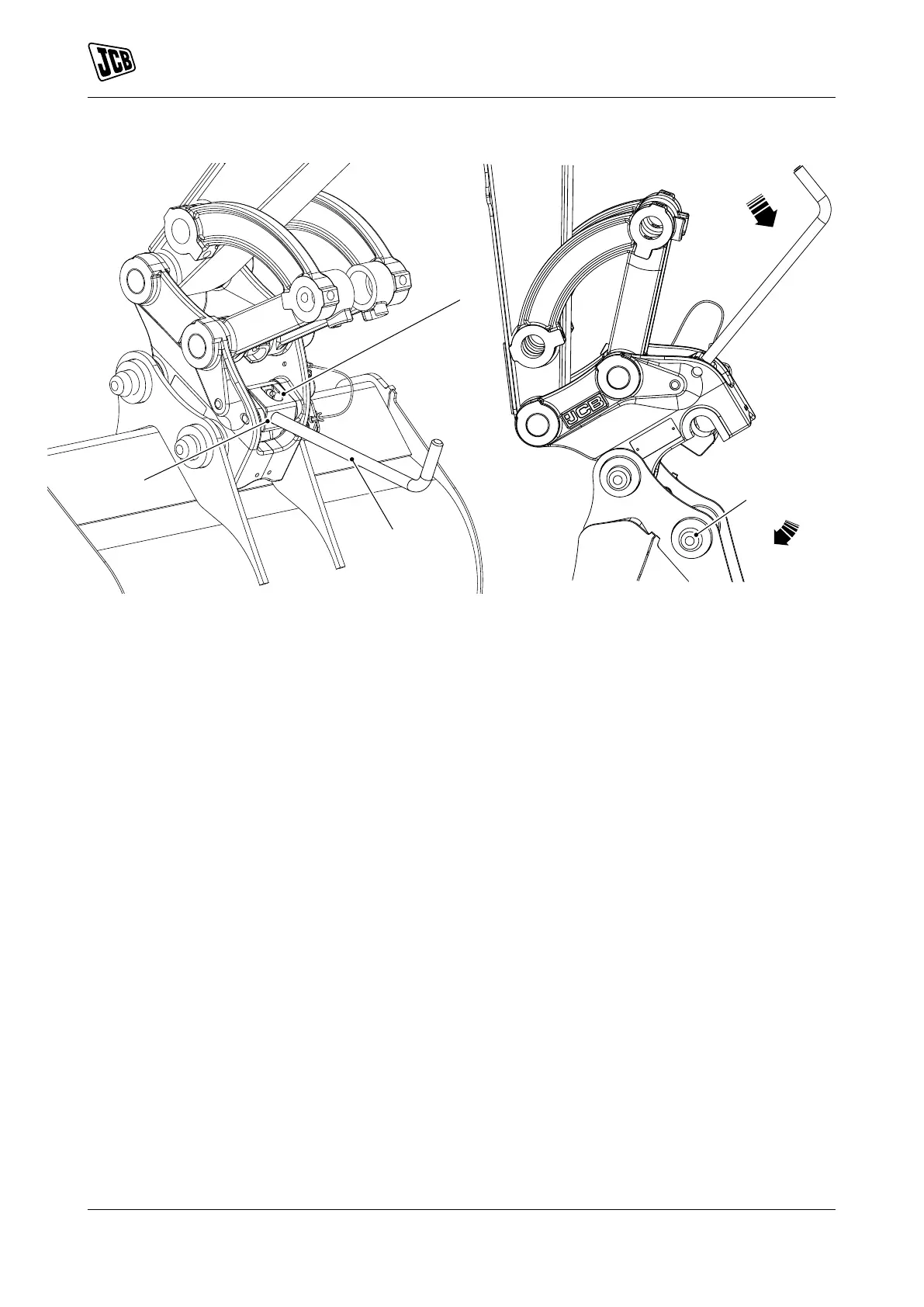

Figure 11.
A Latch hook
B Tommy bar
C Hole
WARNING! The attachment will move when
released. Stand clear and to one side when
releasing the attachment.
5. Apply a downward pressure on the bar to release
the attachment rear pivot pin from the latch hook,
allowing it to swing forward as shown.
Figure 12.
A Pivot pin
6. Remove the tommy bar from the Quickhitch.
7. Start the engine and carefully rest the attachment
on the ground.
8. Slowly roll the Quickhitch back in the direction of
arrow and simultaneously raise the dipper arm
to release the attachment’s front pivot pin from
jaws.
To Next Page
