27 - Maintenance Positions
01 - 14 9813/6750-1 01 - 14

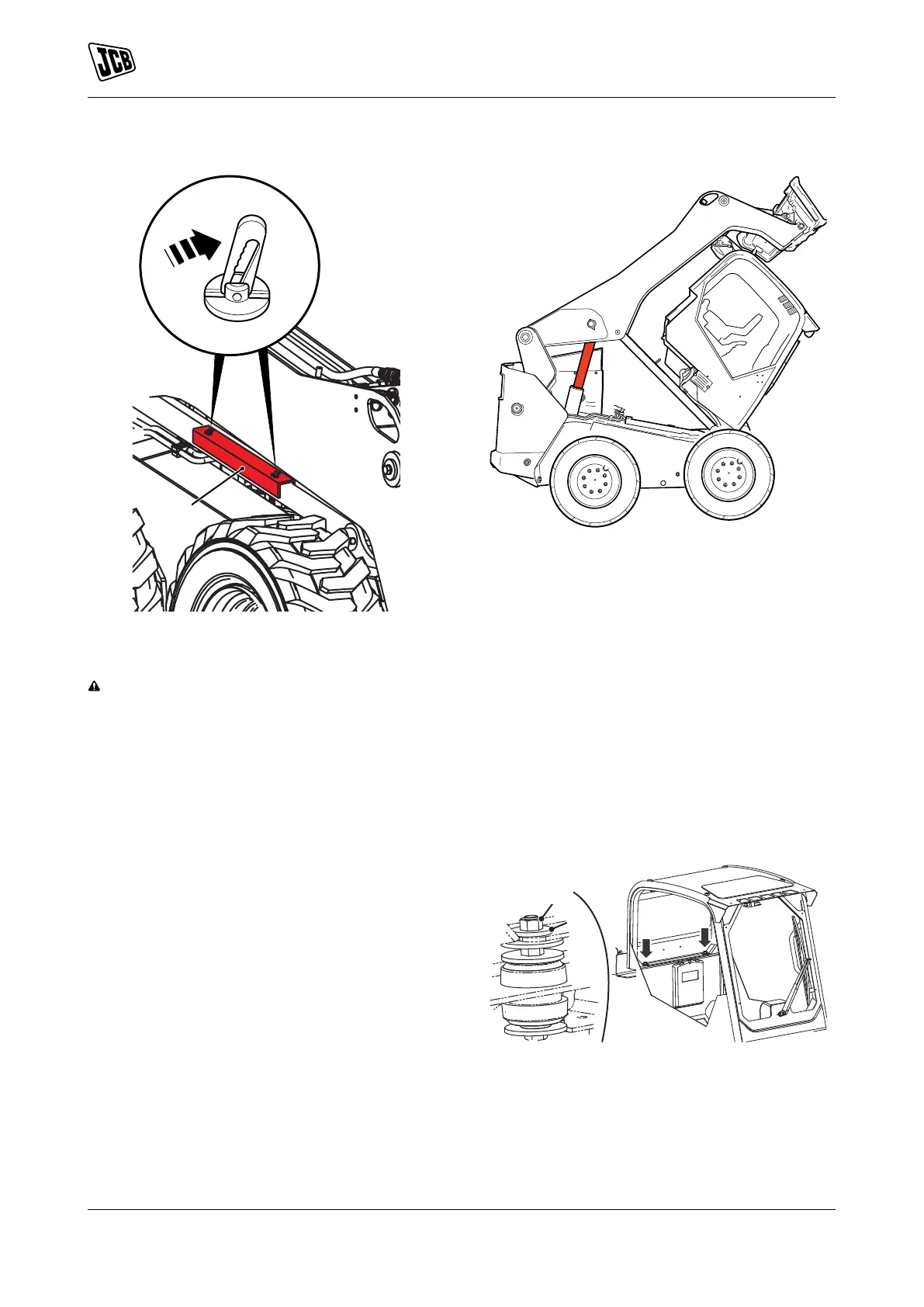

Figure 6.
C Stowage position
Cab Maintenance Position
WARNING Position the machine on a firm, level
surface before tilting the cab. The cab must
be fully raised and locked in position before
attempting any service procedure.
If you raise the cab/canopy to get access for
maintenance you must install the cab/canopy
maintenance strut.
The lift arm must be in maintenance position (lift arm
raised) before tilting the cab/canopy.
Figure 7.
Before installing the lift arm maintenance strut
remove any load on the forks and empty shovels or
attachments.
1. Remove the shovel or attachment.
2. Park the machine on level, solid ground.
3. Install the lift arm maintenance strut.
4. Stop the engine and remove the ignition key. If
the keyless ignition option is installed stop the
engine and wait
Duration: 15s
5. Remove the two rear mounting nuts and
compression plates that secure the cab/canopy.
Figure 8.
A Mounting nut
C Compression plate
6. Raise the cab/canopy by lifting the corner of the
cab/canopy behind the operator's door. Do not try
to raise the cab/canopy by pulling on the front of
the cab/canopy.
7. Remove locking pin.
To Next Page
