01 - Machine
09 - Description
15 - Service Point Locations
01 - 24 9813/9600-2 01 - 24
Service Points - Engine

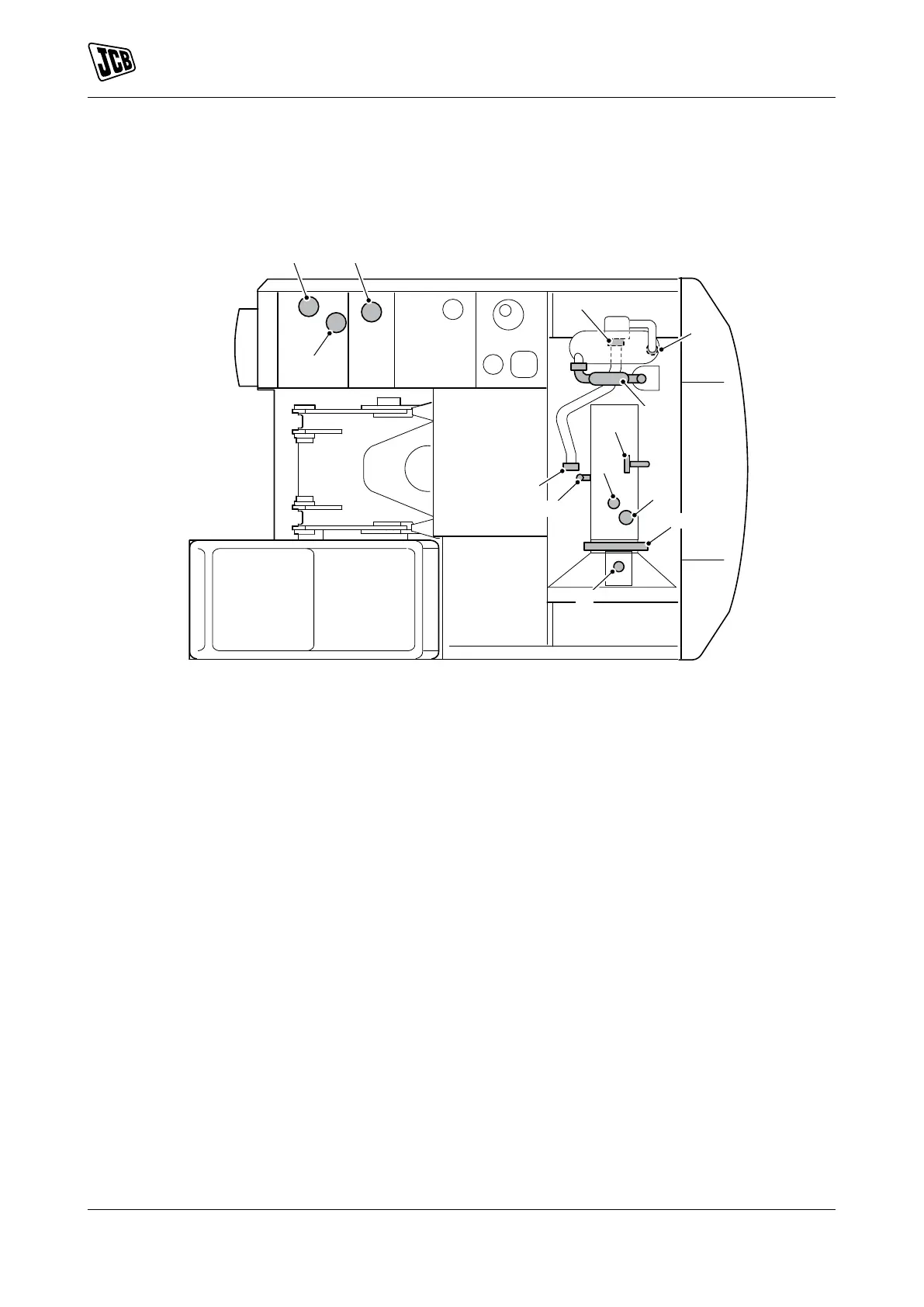

Figure 7. Upper structure
A Filter - refuel pump (inside toolbox) B Filter - DEF (Diesel Exhaust Fluid) pump supply
module (inside toolbox)
C Filler port DEF tank (inside toolbox) D Exhaust clamp - DEF dosing module
E Exhaust clamp - SCR (Selective Catalytic
Reduction) catalyst
F Exhaust silencer
G Exhaust clamp - turbocharger H Engine oil level dip stick
J Engine oil filler port K Crankcase ventilation filter
L Fan belt and FEAD (Front End Accessory Drive)
belt
M Coolant filler port - expansion tank
N Engine oil drain point (access from below the
machine)
