jcb 210X Service Manual

01 - Machine
09 - Description
15 - Service Point Locations
01 - 25 9813/9600-2 01 - 25

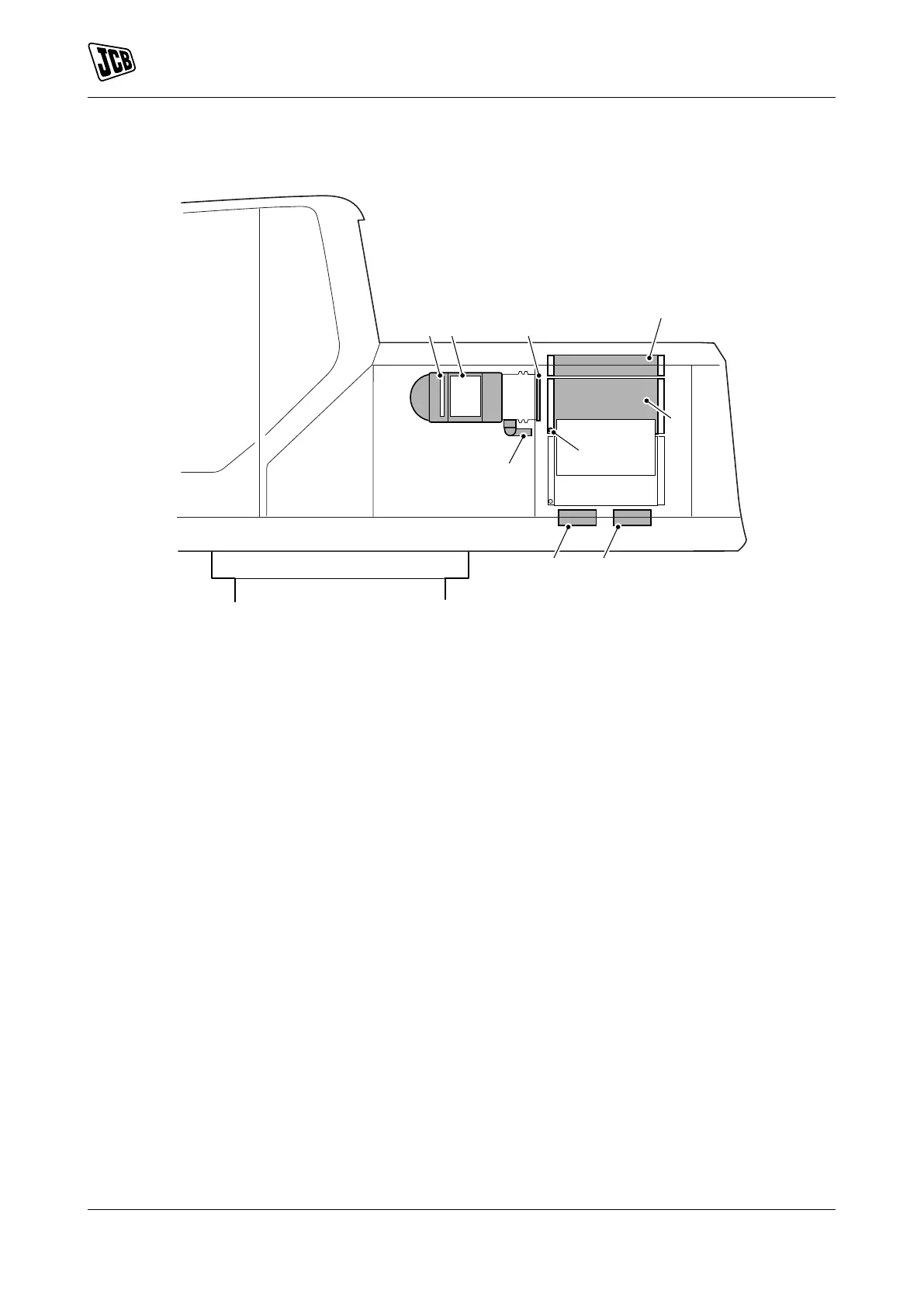

Figure 8. Battery / cooling compartment
C D E
G
K J
L
H
F
A B
A Battery compartment B Cooling compartment
C Induction air filter (outer) D Induction air filter (inner)
E Induction inlet grill F Scavenge intake
G CAC (Charge Air Cooler) (cooling pack) H Engine coolant radiator (cooling pack)
J Fuel cooler K DEF system cooler
L Engine coolant radiator drain plug
