About the Product
Product and Component Identification
11 9831/0200-4 11

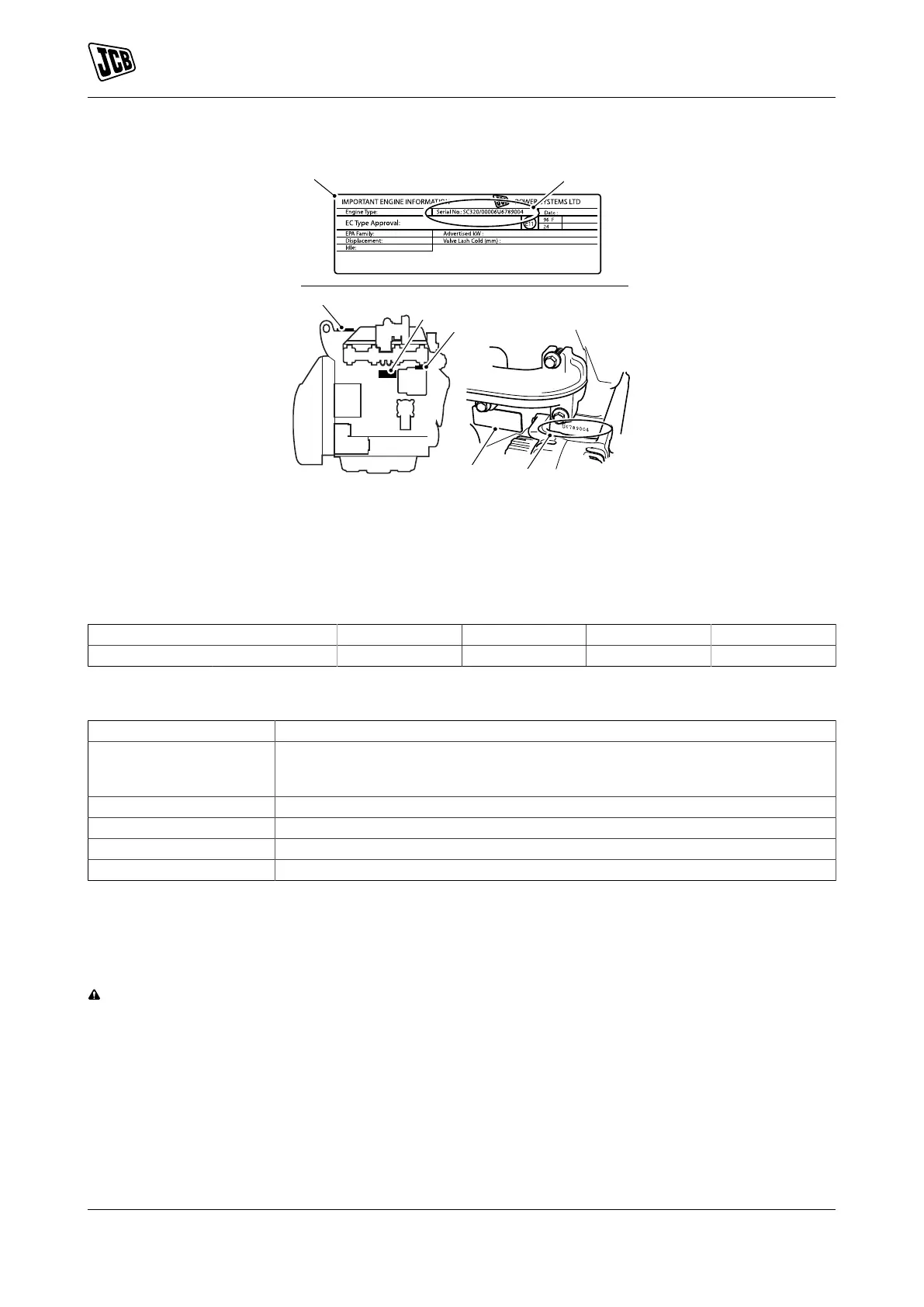

Figure 7.
A
E
D
C
B
C
B
A Engine data label B Engine identification number
C Cylinder block location D Rocker cover location
E Engine identification number on data label
The data label includes the engine identification number.
Table 3. Example of the engine identification number
SH 320/40001 U 00001 04
Digit 1-2 3-10 11 12-16 17-18
Table 4. Explanation of the engine identification number
Digit Explanation
1-2 Engine type. SH = 4.4L Electronic turbocharged and after cooled tier 4 interim.
SJ = 4.4L Electronic turbocharged and after cooled tier 4 final. SL = 4.4L Elec-
tronic turbocharged and after cooled tier 4 55kW.
3-10 Engine part number
11 Country of manufacturer. U = United Kingdom
12-16 Engine serial number
17-18 Year of manufacture
The country of manufacturer, engine serial number and year of manufacture of the engine are also stamped
on the cylinder block. Refer to Figure 7.
Operator Protective Structure
WARNING You could be killed or seriously injured if you operate a machine with a damaged or missing
ROPS/FOPS/FOGS. If the ROPS/FOPS/FOGS has been in an accident, do not use the machine until the
structure has been renewed. Modifications and repairs that are not approved by the manufacturer may be
dangerous and will invalidate the ROPS/FOPS/FOGS certification.
WARNING Machines with a ROPS, FOPS,FOGS or TOPS are equipped with a seat belt. The ROPS,
FOPS,FOGS or TOPS is designed to give you protection in an accident. If you do not wear the seat belt you
could be thrown off the machine and crushed. You must wear a seat belt when using the machine. Fasten
the seat belt before starting the engine.
