About the Product
Operator Station
16 9831/0200-4 16
Operator Station
Component Locations

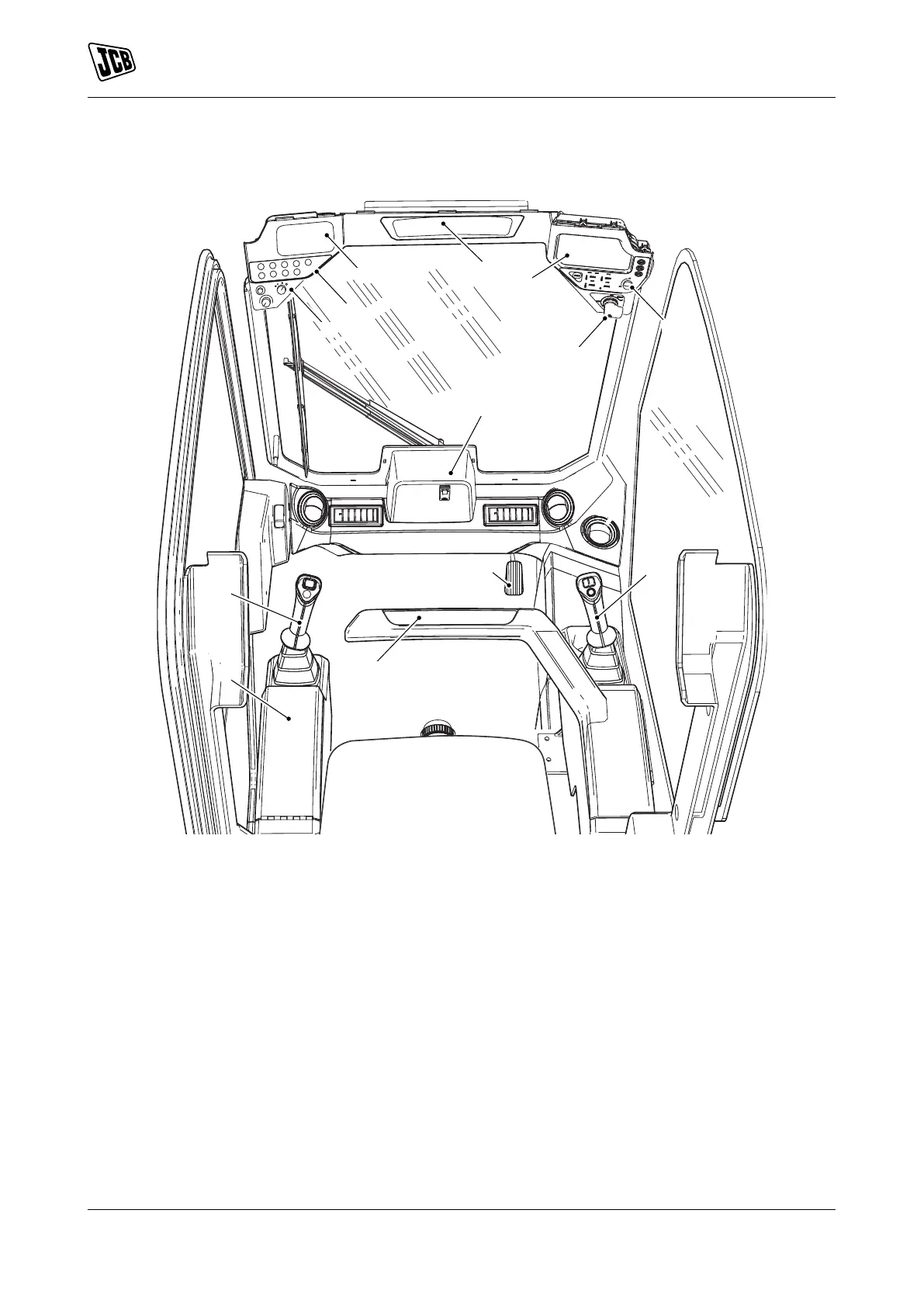

Figure 11.
A
B
C
D
P
G
L
K
J
Q
F
E
H
A Left armrest (contains 12V accessory socket),
Refer to: Safety Equipment (Page 53).
B Right interlock bar,Refer to: Safety Equipment
(Page 53).
C Left joystick control lever, Refer to: Drive
Controls (Page 55).
D Right joystick control Lever, Refer to: Operating
Levers/Pedals (Page 85).
E Left switch panel, Refer to: General
(Page 63).
F Radio, Refer to: General (Page 95).
G Front panel, Refer to: Console Switches
(Page 19).
H Cab HVAC (Heating Ventilation Air
Conditioning), (optional)Refer to: Heating,
Ventilating and Air-Conditioning (HVAC)
(Page 93).
J Instruments, Refer to: Instruments
(Page 63).
K Hand throttle, Refer to: Safety Equipment
(Page 53).
L Ignition switch, Refer to: Ignition Switch
(Page 17).
P Foot throttle control (optional), Refer to: Drive
Controls (Page 55).
Q Interior rear view mirror, Refer to: General
(Page 44).

jcb 260T Specifications

General

Operating Weight	9, 774 lbs
Engine Power	55 kW
Rated Operating Capacity	2, 600 lbs
Tipping Load	7, 429 lbs
Lift Path	Vertical
Net Engine Power	55 kW
Width	69.1 in
Max. Travel Speed	12.6 km/h
High Flow	90 L/min
Length with Bucket	3, 500 mm
Bucket Capacity	0.48 m³
Max Travel Speed	12.6 km/h
Breakout Force	38.6 kN
Length	3, 500 mm
Height	2, 200 mm
Pump Flow	60 L/min
