jcb 30PLUS Service Manual

01 - Machine
09 - Description
15 - Service Point Locations
01 - 23 9813/7850-2 01 - 23
15 - Service Point Locations
Introduction
For: 8026 CTS [T3] ................... Page 01-23
For: JCB 30PLUS ..................... Page 01-25
(For: 8026 CTS [T3])
The following illustrations identify the service points
for the operator to perform the daily and weekly
maintenance tasks.

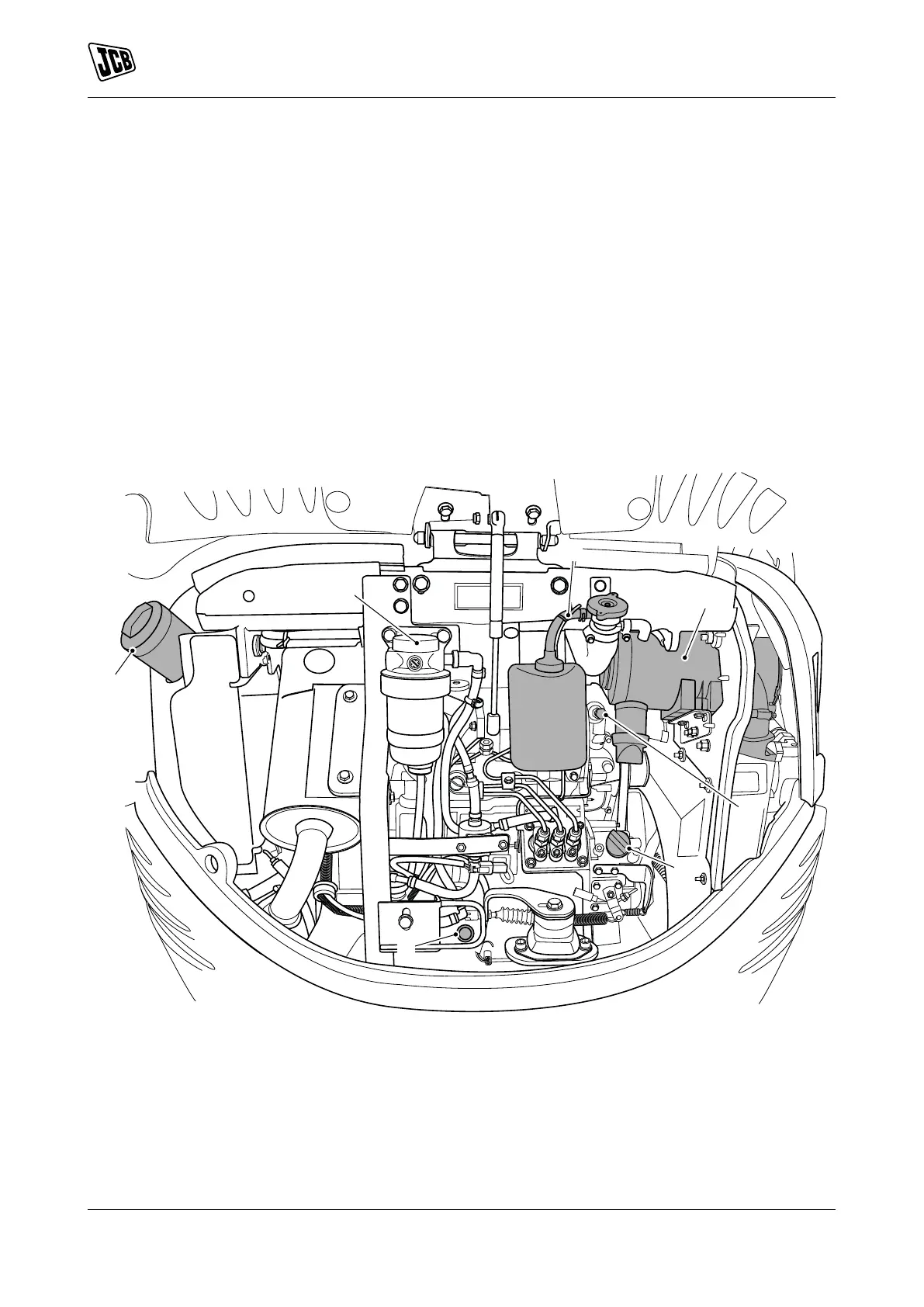

Engine Compartment
Figure 5.
A
B
C
E
F
D
G
A Water separator B Radiator cap and expansion bottle
C Air intake D Drive belt tensioner
E Engine oil filler cap F Engine oil dipstick
G Fuel tank filler cap
