35Z- 1 , 3 6 C - 1 | 17

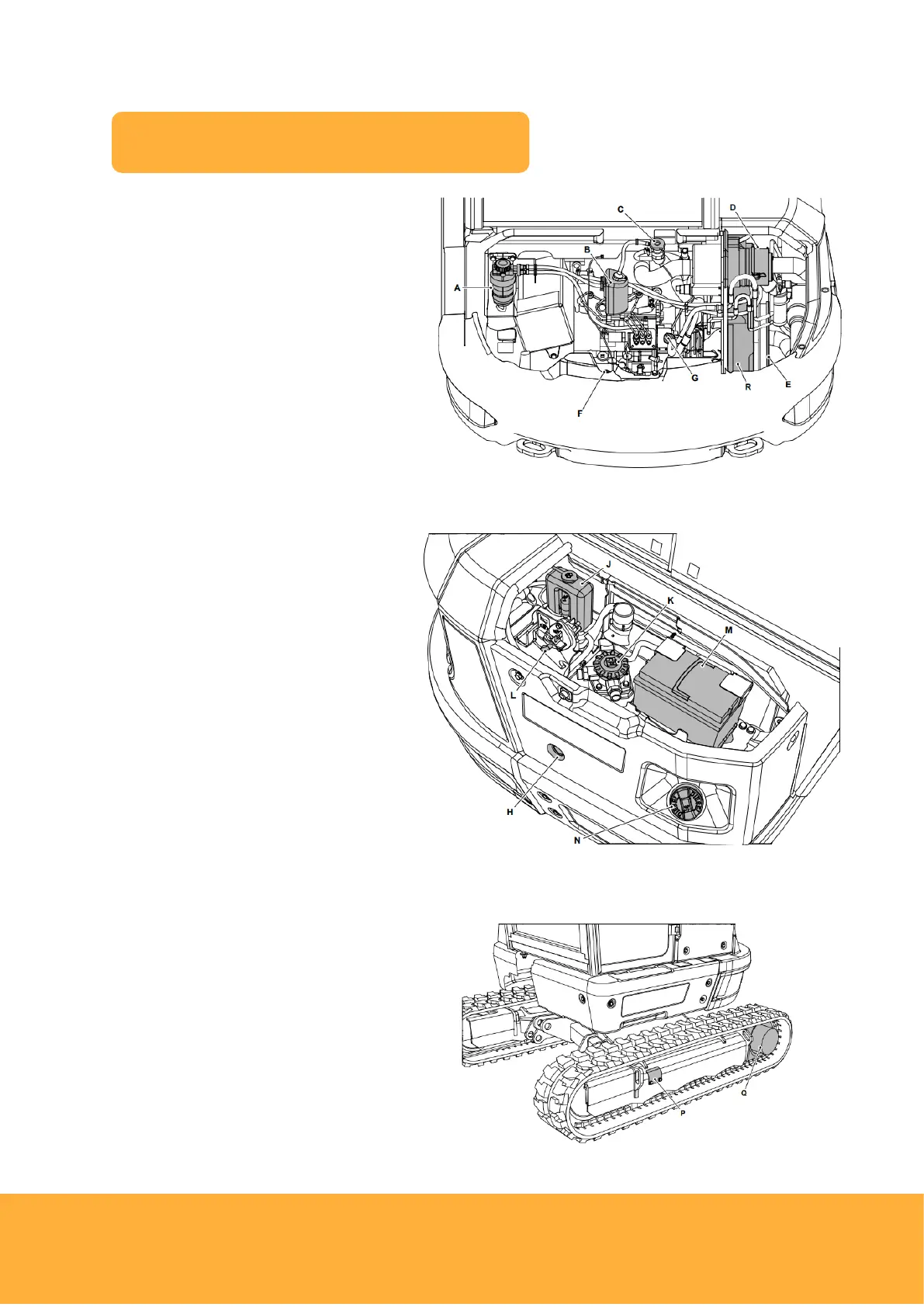

Engine Compartment
A. Main fuel filter
B. Overflow bottle
C. Coolant system filter cap
D. Air filter
E. Air conditioning condenser (if fitted)
F. Engine oil dipstick
G. Engine oil filler cap
R. Radiator
Hydraulic Compartment
H. Hydraulic oil level indicator
J. Window washer fluid tank
K. Hydraulic oil filler cap
L. Battery isolator
M. Battery
N. Fuel filler cap
Cab and exterior
P. Track tensioner cover
Q. Track gearbox
Service and Access Covers
