15 - Service Point Locations
Introduction
Engine Compartment
Figure 7.
K
F
J
G
B
D
E
A
C
L
H

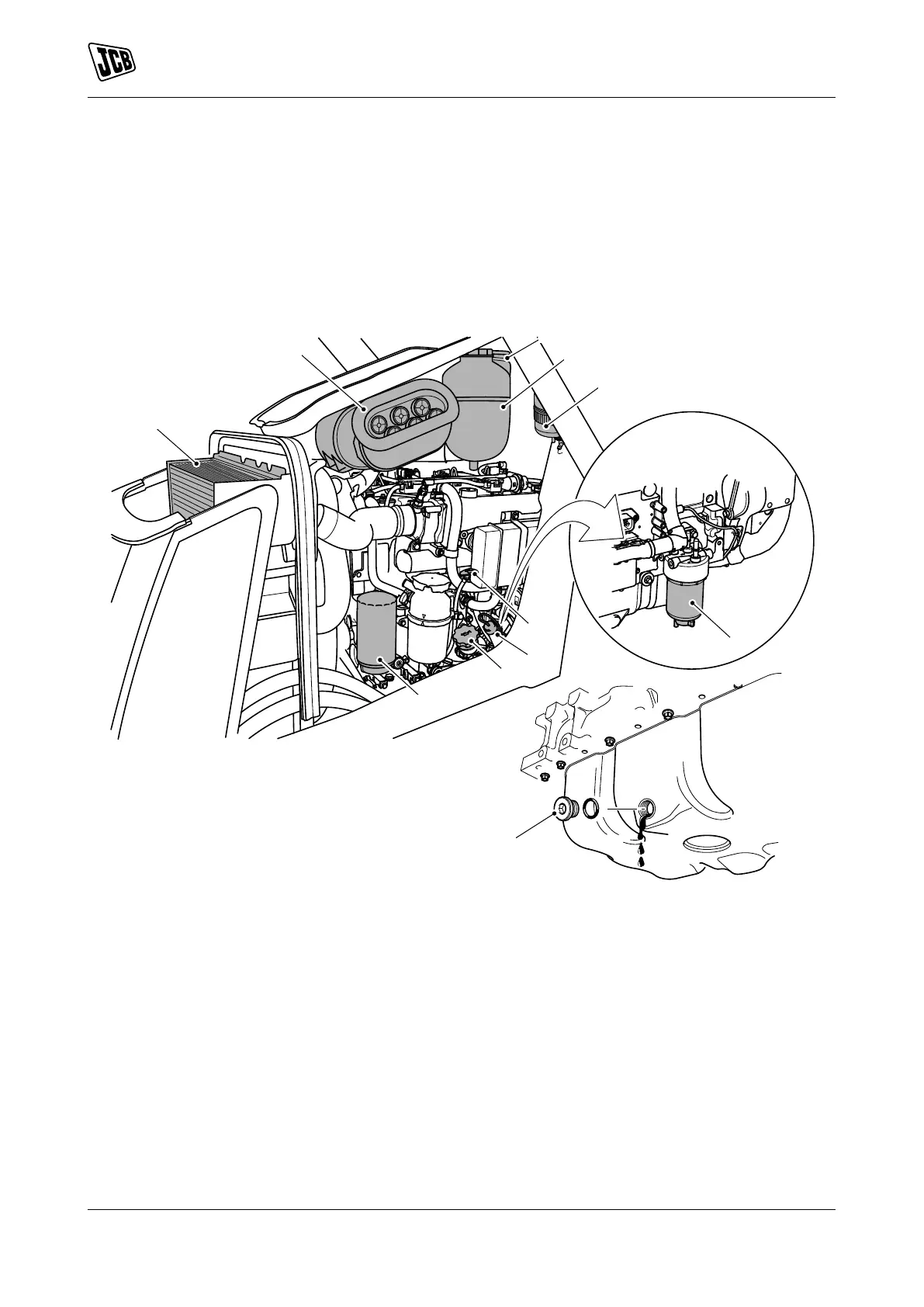

A Cooling pack B Air filter assembly
C Window washer fluid bottle D Coolant expansion bottle
E Fuel filter water separator F Engine fuel filter
G Engine oil dipstick H Gearbox oil dipstick
J Engine oil filler point K Engine oil filter
L Drain plug and o-ring.
