Remove and Install
Standard Teeth
Remove
1. Make the machine safe.
Refer to: PIL 01-03-27.
2. Put the bucket flat on level ground.
3. Stop the engine.
4. Remove the ignition key.
5. Discharge the hydraulic pressure.
Refer to: PIL 30-00-00.
6. Remove the nut and bolt.
7. Remove the relevant tooth.

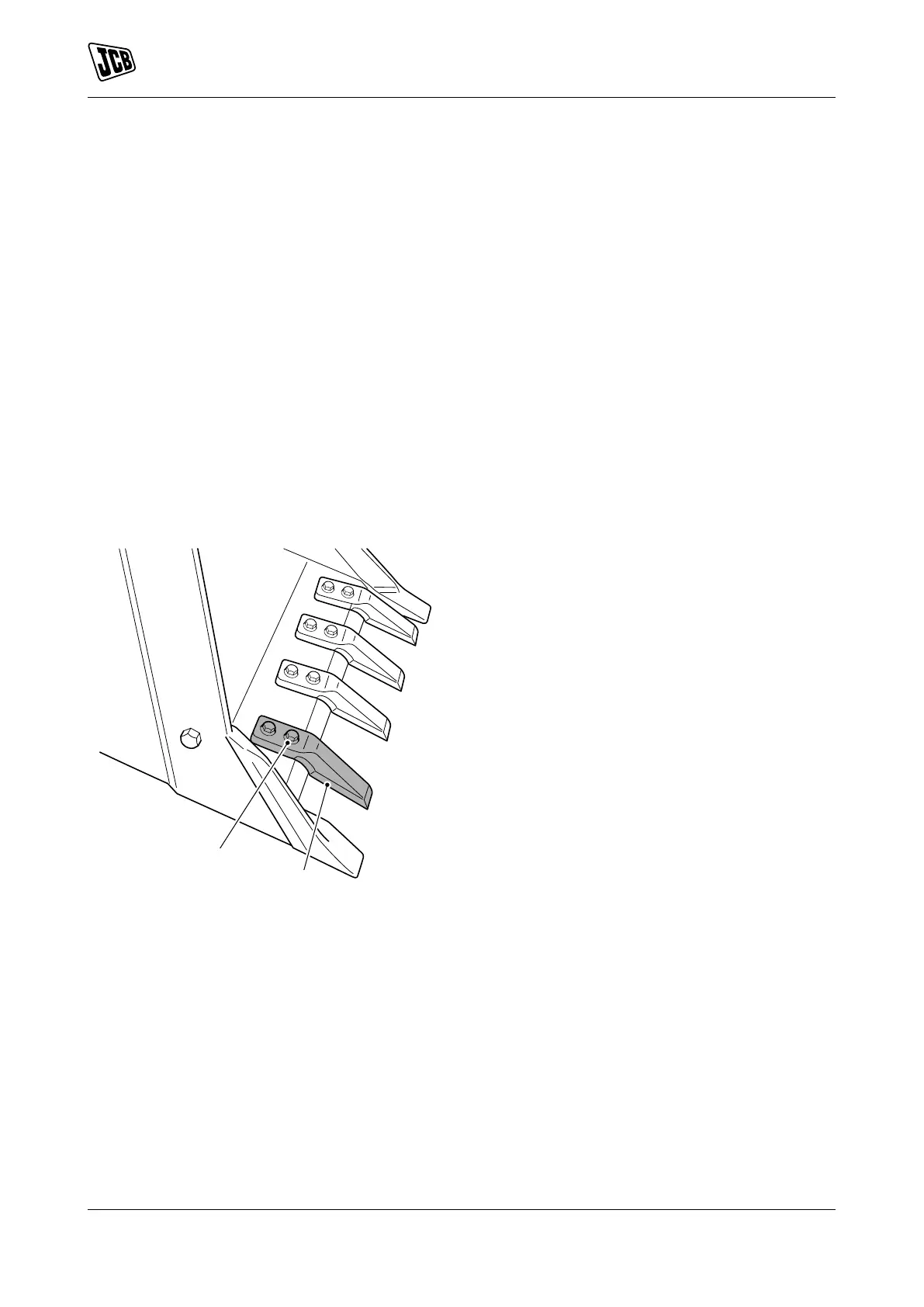

Figure 15.
A
B
A Tooth
B Nut and bolt
Installation
1. Put the tooth in position.
2. Install the nuts and bolts to secure the tooth in
position.
