15 - Engine
42 - Rocker and Fittings
06 - Rocker Cover
15 - 165 9823/0000-1 15 - 165
06 - Rocker Cover
Remove and Install
(For: JCB Tier 2/3 Mech Engine 4 Cyl)
Before Removal
1. Make sure that the engine is safe to work on. If
the engine has been running, let it cool before
you start the service work.
2. Clean the top of the rocker cover and around
the fuel injectors. Refer to Engine - Clean (PIL
15-00).
3. Disconnect and remove the fuel pipes from the
injectors.
Refer to: PIL 18-96.
3.1. Caps for blanking the open ends of the fuel
pipes are supplied with the rocker cover
gasket kit.

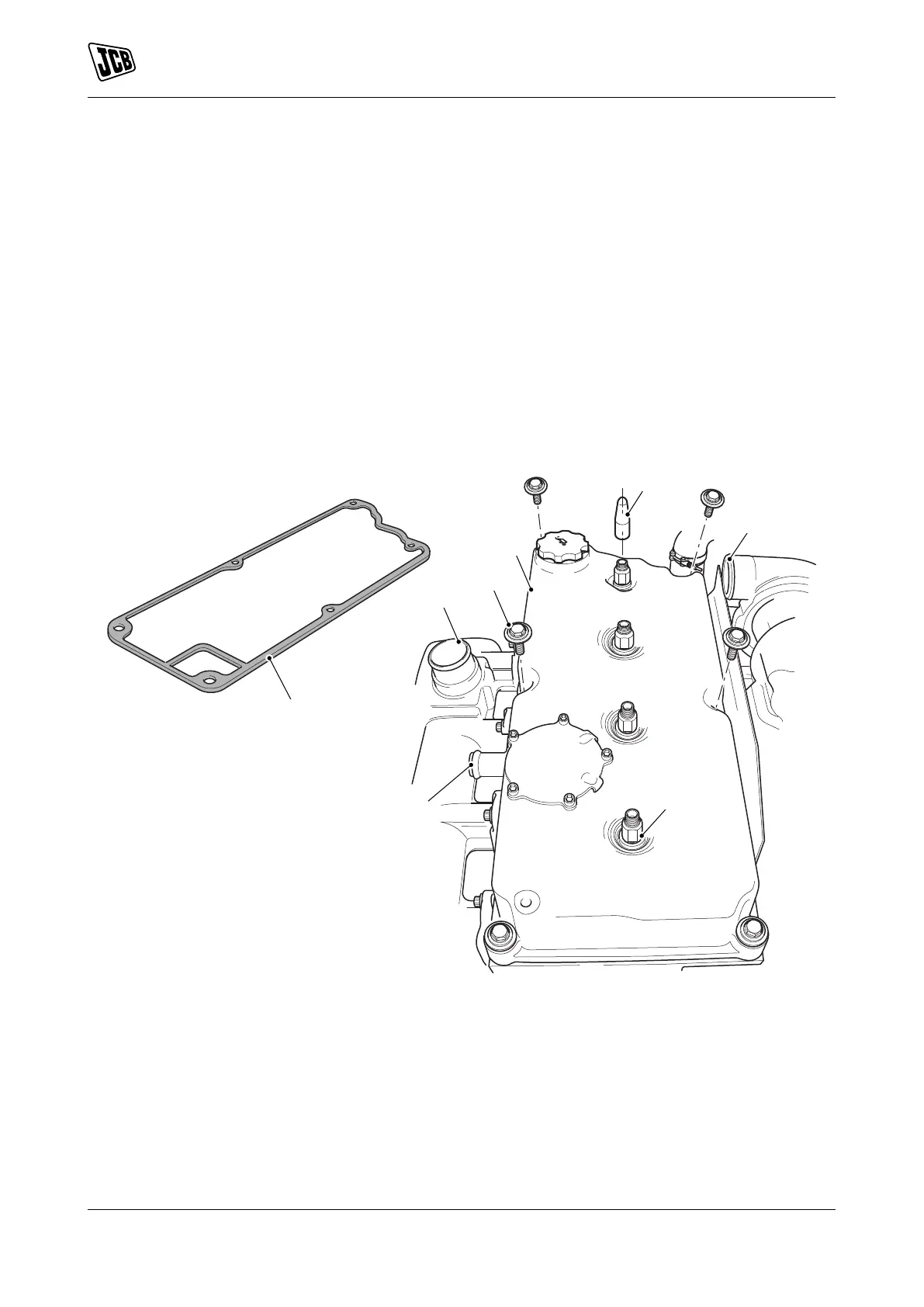

Figure 204.
1 Rocker cover 2 Bolts (x6)
3 Pipe stub (breather hose) 4 Turbocharger outlet (Turbocharged engines
only) Injector seals
5 Inlet manifold 6 Gasket
7 Injector sleeves/covers 8 Rocker cover injector seals
