Operator Station
16 9831/2000-4 16
Operator Station
Component Locations

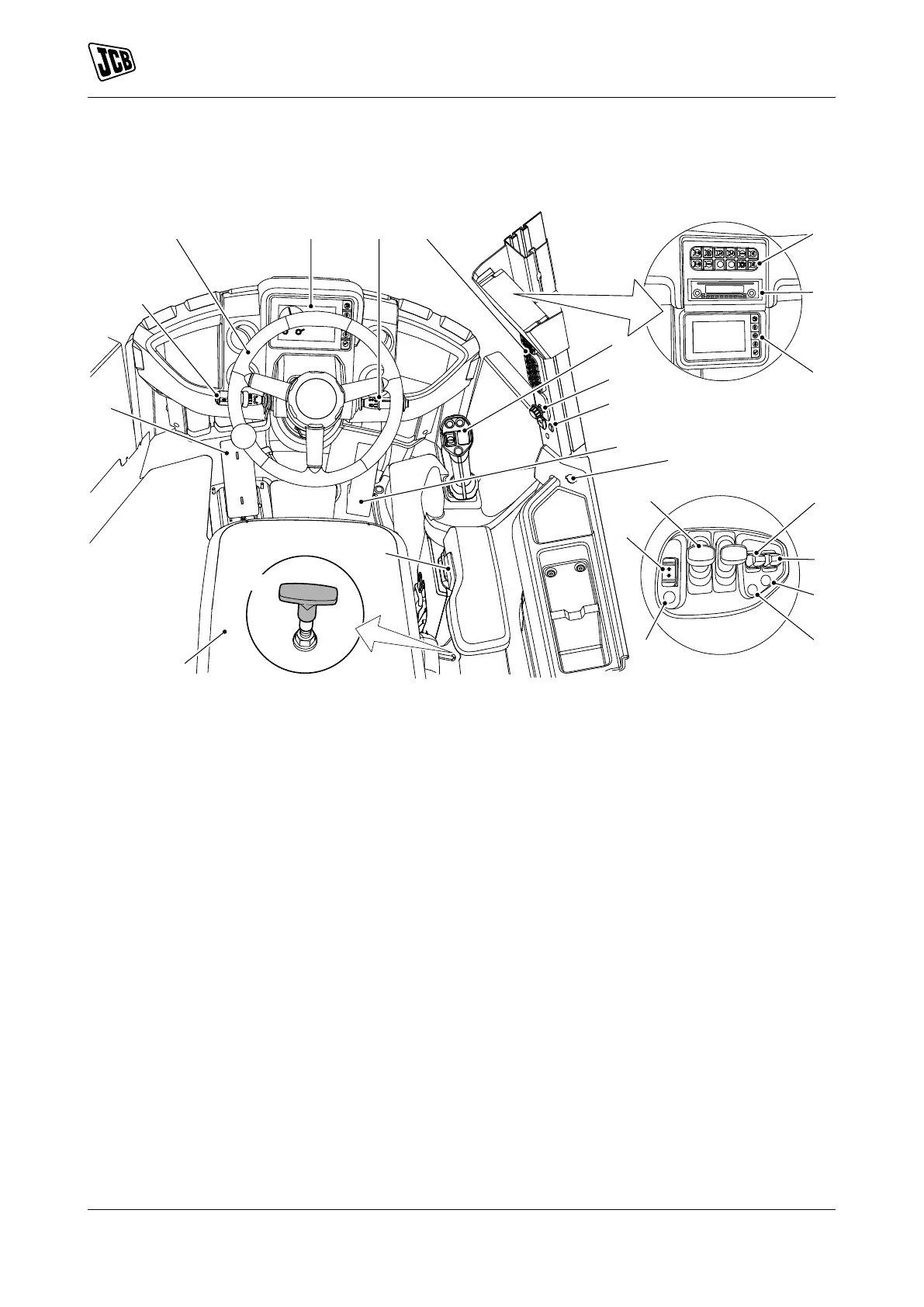

Figure 10.
A
Z
X
Y
B
D
F
L
K
J
N
H
E
G
C
Q
P
V
U
T
R
S
AA
W
A Transmission Refer to: Drive Controls
(Page 59).
B Steering wheel Refer to: Steering Wheel
(Page 60).
C Front display panel Refer to: Instruments
(Page 68).
D Multi purpose steering column switch Refer to:
Multi-Purpose Switch (Page 17).
E Console switches Refer to: Console Switches
(Page 20).
F ATC (Automatic Temperature Control) panel
or optional manual HVAC (Heating Ventilation
Air Conditioning) controls Refer to: Air-
Conditioning Controls (Page 94).
G Radio H Secondary display panel (option) Refer to:
Instruments (Page 68).
J Proportional lever controls Refer to: Operating
Levers/Pedals (Page 84).
K Rotary switch panel Refer to: Instruments
(Page 68).
L Park brake switch Refer to: Park Brake
(Page 63).
N Starter switch Refer to: Ignition Switch
(Page 17).
P Forward reverse switch Refer to: Forward,
Neutral and Reverse Switch (Page 61).
Q Multi lever controls Refer to: Drive Controls
(Page 59).
R Primary auxiliary controller (option)Refer to:
Auxiliary Circuit Controls (Page 86).
S Secondary auxiliary controller (option)
T Ergo traction (option) U Horn
V Transmission kickdown switch Refer to:
Transmission Kickdown Switch (Page 64).
W Armrest Refer to: Armrest (Page 40).
X Accelerator pedal Refer to: Accelerator Pedal
(Page 61).
Y Seat Refer to: Operator Seat (Page 37).
Z Service brake pedal Refer to: Service Brake
Pedal (Page 63).
AA Tow hitch lever
