03 - Attachments, Couplings and Load Handling
09 - Lift Arm Quickhitch
06 - Hydraulic Quickhitch
03 - 10 9813/4800-3 03 - 10

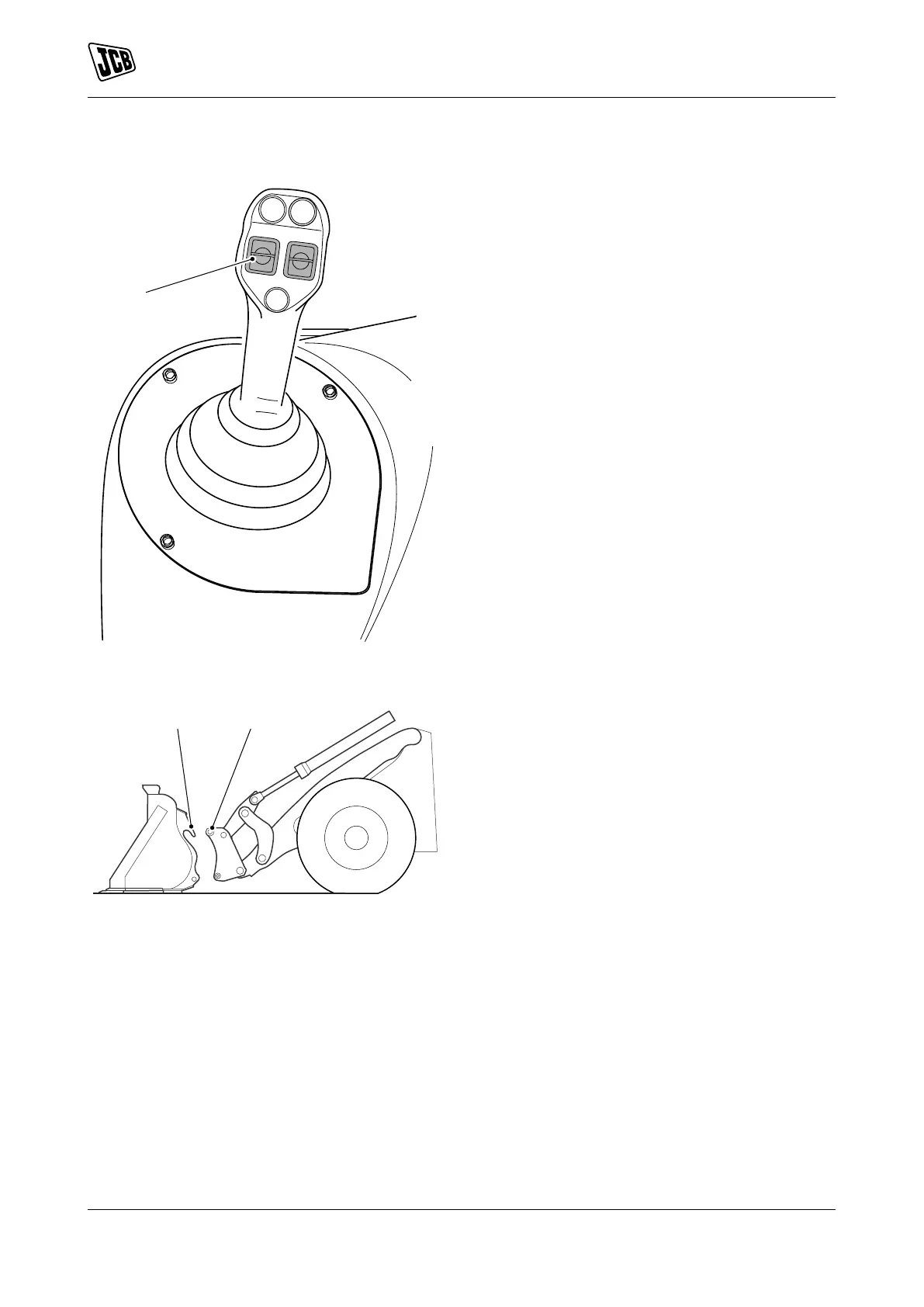

Figure 15.
B Auxiliary lever roller switch
Figure 16.
C Pivot shaft
D Hooks
Connect
1. Align the machine so that it is square with the
attachment.
2. Lower the loader arms to move the pivot shaft
below the level of the hooks on the attachment.
3. Drive the machine slowly forward, stop when the
pivot shaft touches the attachment.
4. Apply the park brake and put the transmission in
neutral.
5. Lift the loader arms and engage the pivot shaft
into the hooks. Stop the movement as soon as
the pivot shaft is engaged.
6. Engage the attachment.
6.1. Operate the auxiliary lever roller switch on
the operating lever to engage the locking
pins.
7. If installed, push and hold the quickhitch isolator
switch.
8. Engage the locking pins.
8.1. Operate the auxiliary lever roller switch on
the operating lever to engage the locking
pins.
9. Make sure that the locking pins in the base of the
quickhitch are fully engaged.
10. Release the quickhitch isolator switch.
11. If removed, connect the hydraulic hoses.
To Next Page
