81 - 4
Section F Transmission
9803/3280
Section F
81 - 4
Issue 1
Front Axle - SD55, SD70
Hub and Driveshaft - Dismantling (cont'd)

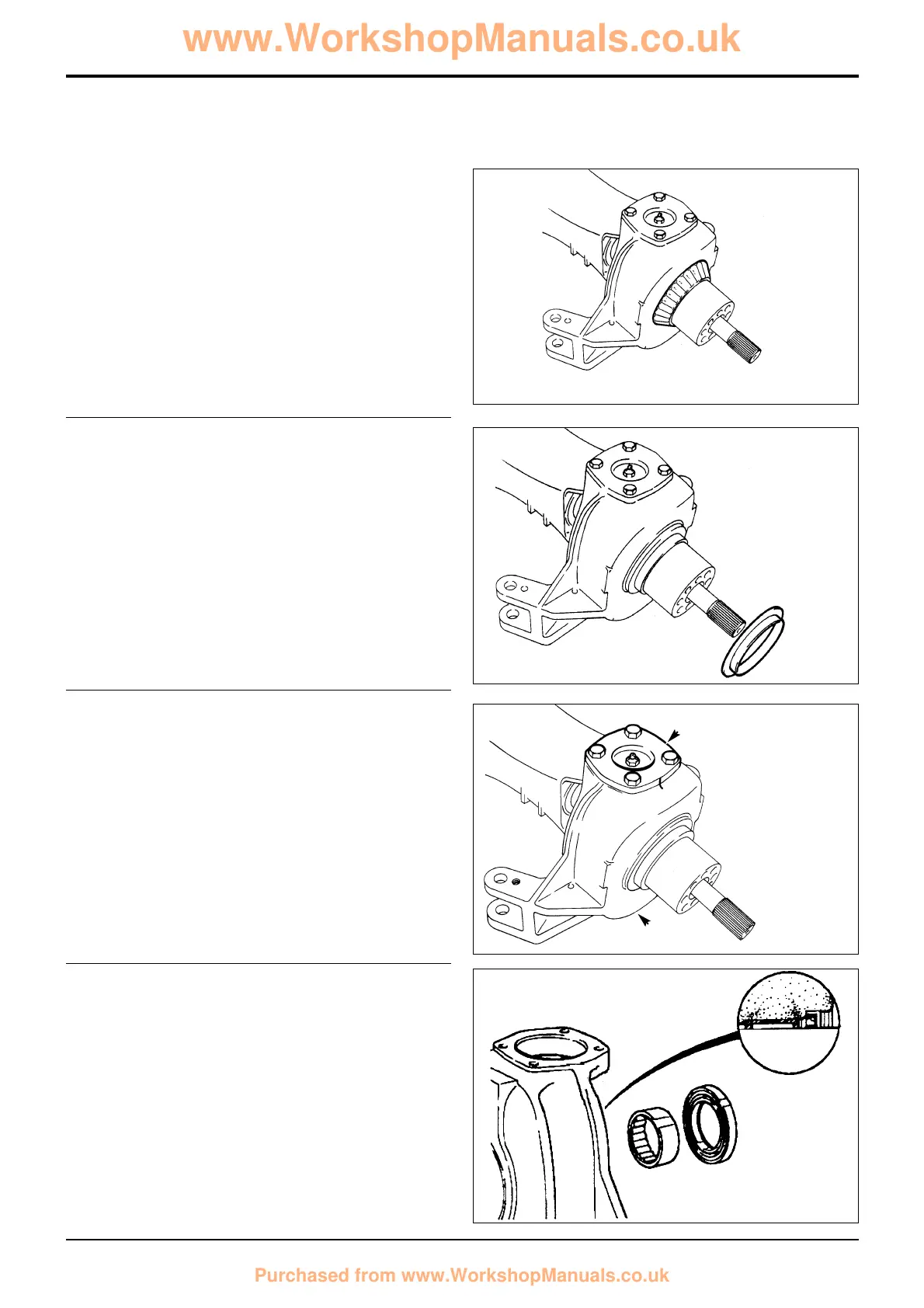

14 Pull off the inner bearing - see Note at step 13.
15 Remove and discard the seal.
Note: The inner bearing and oil seal may withdraw with the
bearing carrier.
17 Mark position of top and bottom trunnions H and
remove. Withdraw the hub carrier.
Note 1: Trunnions may be removed easily by pumping
grease through the grease nipple.
18 Use adaptor 993/59500 with slide hammer tool
892/00224 and remove driveshaft seal and needle roller
bearing from the hub carrier.
16 Remove and discard the combination seal. When
assembling the axle, a new combination seal must be
used.
S248880
S258260
S248890
S161460
H
H
