10 Please see operator manual for full details.
Joystick & Dozer Lever
Joysticks
Dozer Lever

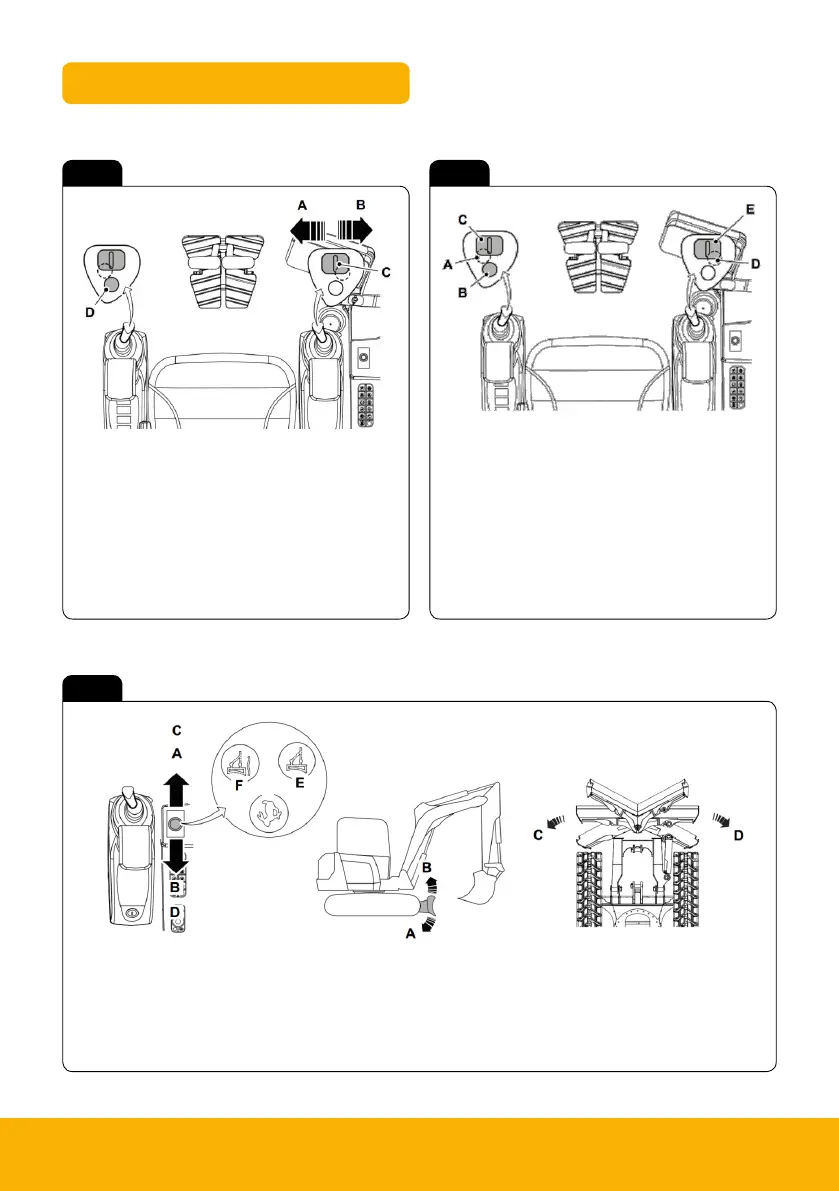

Fig 15
Fig 16
Fig 17
A Lower the dozer
B Raise the dozer
C Angle the dozer (left side in)
D Angle the dozer (right side in)
Swing Controls
A Swing left
B Swing right
C Swing thumb wheel control
D Swing/Aux change over button
Auxiliary Controls
A Tilt/grab changeover for tilt-rotator
B Swing/Aux change over button
C Thumb wheel control – Aux 2 (Low flow)
D Continuous flow button – Hammer circuit
E Thumb wheel control – Aux 1 (High flow)
Note: A & D located underside of joystick
E Dozer lift/angle changeover
F Dozer float mode on/off
G Travel speed selector
G
