jcb 51R-1 Quick Start Guide

14 Please see operator manual for full details.
Shutdown and Auxiliary Venting
Shutdown Sequence
1
1
4
2
2
5
3
3
6

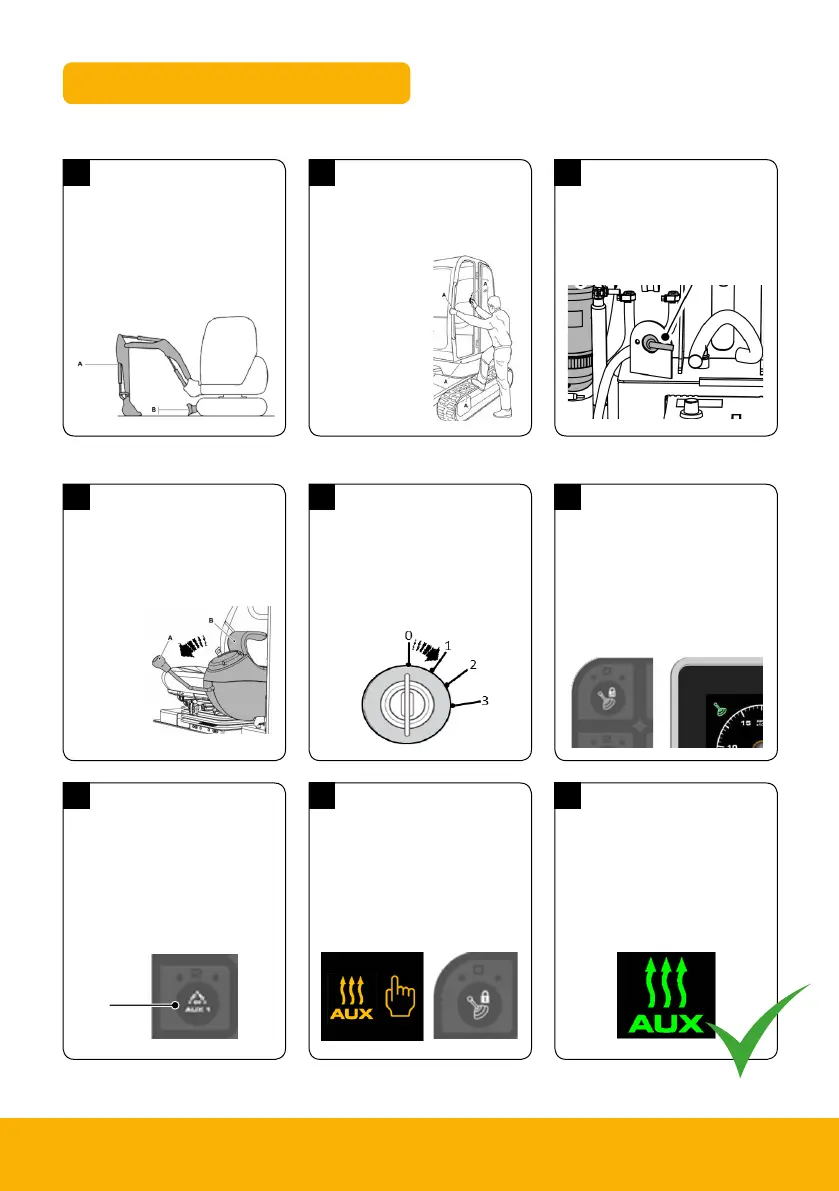

Park Machine Up
Lower LH Arm Rest
Activate Aux Venting
Leave & Secure
Turn Ignition On
Confirm Venting
Isolate Machine
Press 2 GO Button
Auxiliary’s Vented
Park machine on solid level
ground with the attachment (A)
and dozer (B) on the ground.
While sitting in the operating
station with engine off lower
LH arm rest.
Aux 1 button on the switch
panel will start to flash, press
(A) to start auto-venting
sequence.
Turn ignition to position 1 (A) so
that the instrument panel and
switches become active.
Instrument panel will indicate
need to confirm process (A).
To confirm process press 2 GO
button (B).
Press 2 GO button (A) to
activate hydraulics. Instrument
panel will illuminate (B)
when active.
During venting icon on
instrument panel will be green
(A) and buzzer will sound, once
complete the buzzer will stop
and the icon will disappear.
Switch off all switches. Leave
machine using the handrails
and footholds.
Close & lock
all doors and
windows to
secure machine.
Turn isolator key anti-clockwise
and remove key.
A
Auxiliary Venting (Within 1 Minute of Shutdown)
A Handle
B LH arm rest
A
A
A
B
A B
A
