Attachments
Buckets
99 9821/6100-4 99
Installation
1. Put the tooth in position.
2. Install the nuts and bolts to secure the tooth in position.
ESCO Teeth
Introduction
This information only relates to the ESCO buckets supplied by JCB. If a bucket from another source is used,
refer to the relevant manufacturer's manual.
A wide range of Super V-teeth are available for your machine, which are suitable for all digging conditions. The
Super V system consists of an adaptor, tooth and locking pin. Refer to Figure 85.
The adaptor remains attached to the bucket and the teeth can be easily and quickly changed by one person.
The method of removal/installation is the same for all types of teeth.

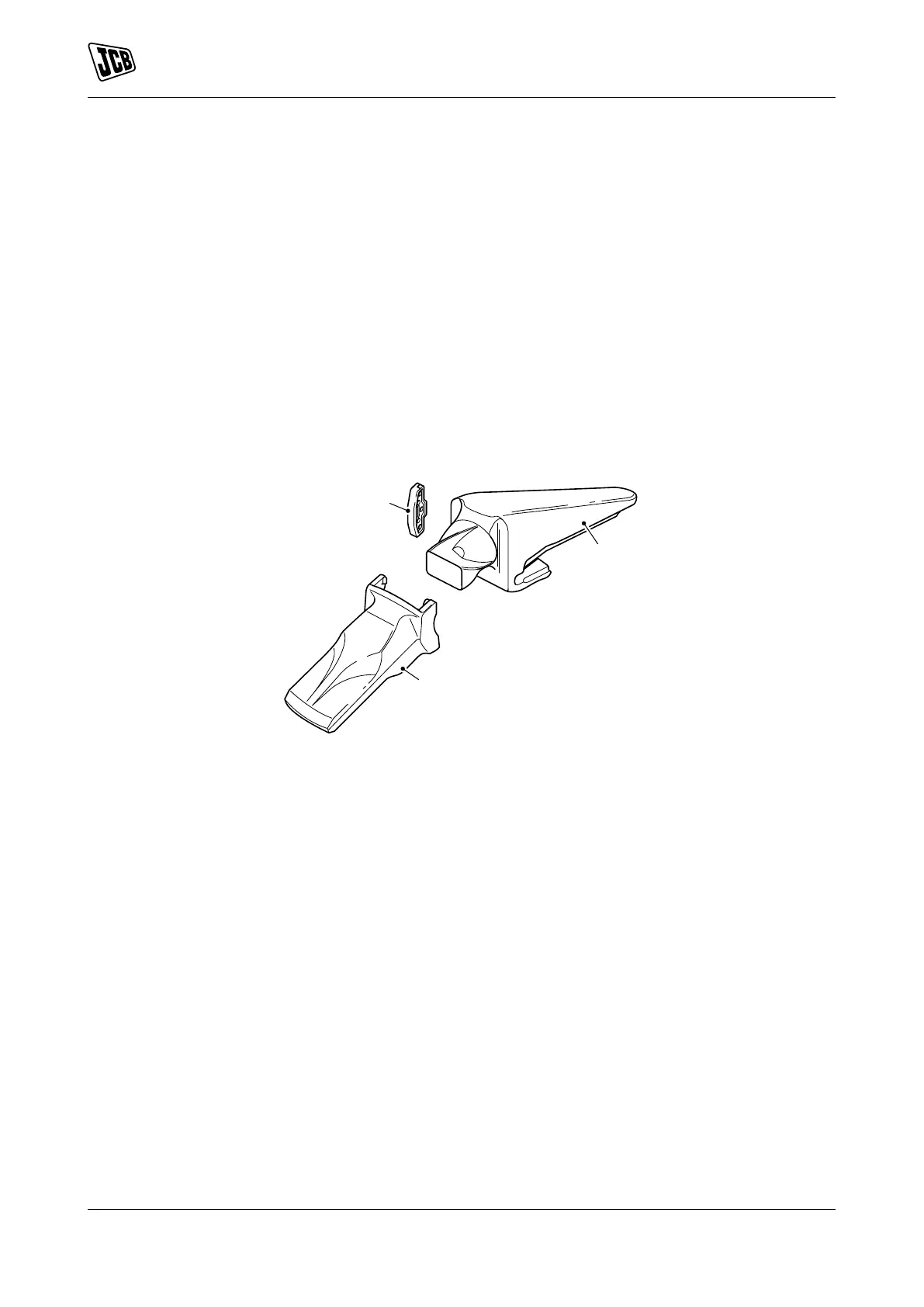

Figure 85.
A Adaptor B Tooth
C Locking pin
Removal
1. Move the bucket into position.
1.1. Make sure that the bucket is securely supported off the ground with sufficient space for the removal
of the locking pin.
2. Stop the engine.
3. Remove the ignition key.
4. Remove the locking pin.
4.1. Use a hammer and suitable drift, to carefully knock the locking pin down and out of its guide. Refer
to Figure 86.
