Technical Data

Static Dimensions

157 9821/6100-4 157

(For: 8018 CTS)

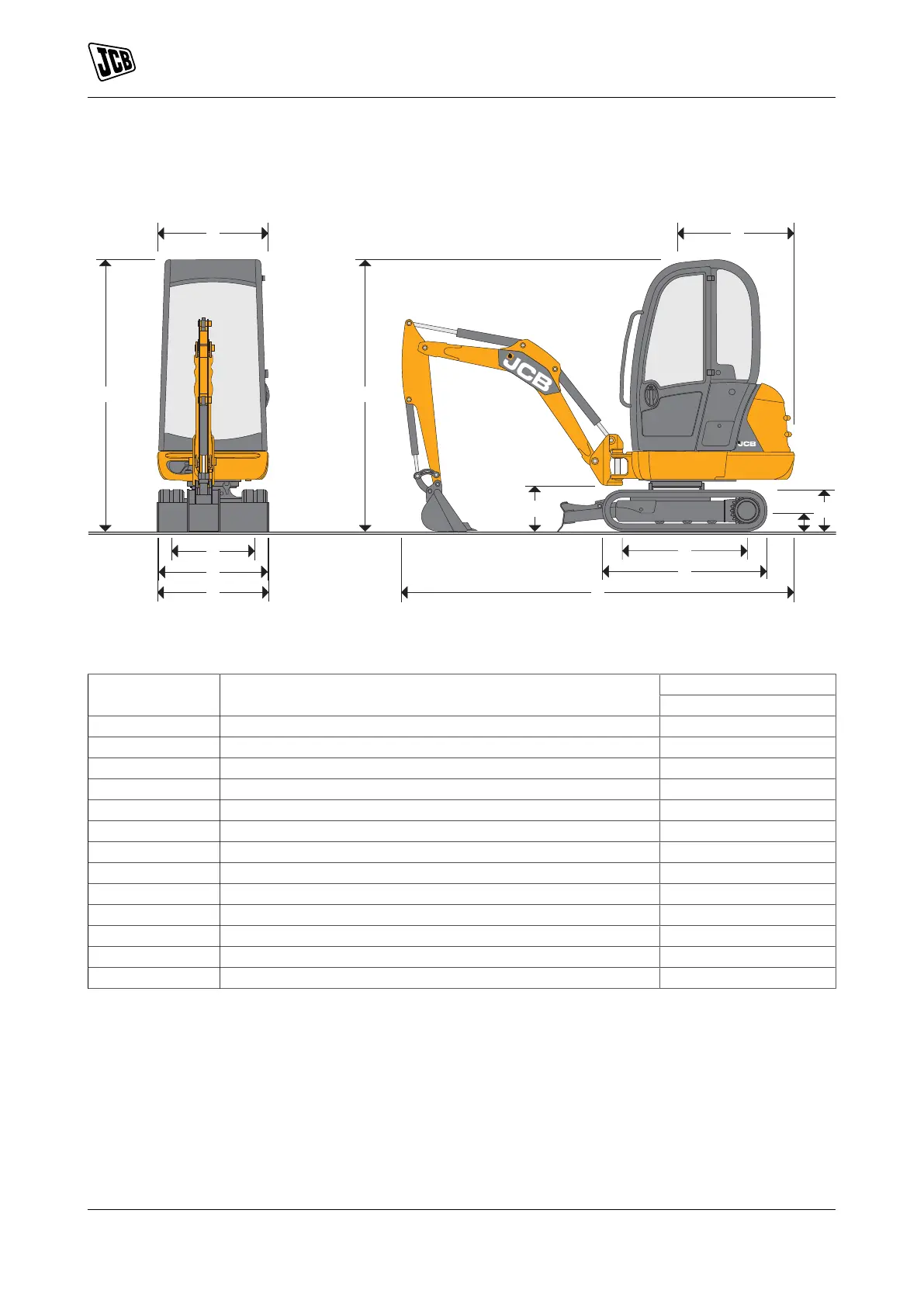

Figure 115.

Table 12. Machine Dimensions

8018 CTSDimension Description

A Sprocket idler centres 1,127

B Undercarriage (overall length) 1,484

C Kingpost clearance 394

D Tailswing radius 1,080

E Overall width 996

F Height over the cab 2,318

G Ground clearance 158

H Track gauge 750 to 1,110

I Width over the tracks - retracted 980

F Width over the tracks - extended 1,340

J Transport length - standard dipper 3,523

J Transport length - long dipper 3,467

J Transport length - gravemaster dipper 3,265
