jcb 8018 CTS User Manual

Technical Data
Performance Dimensions
166 9821/6100-4 166
(For: 8018 CTS)
Digging

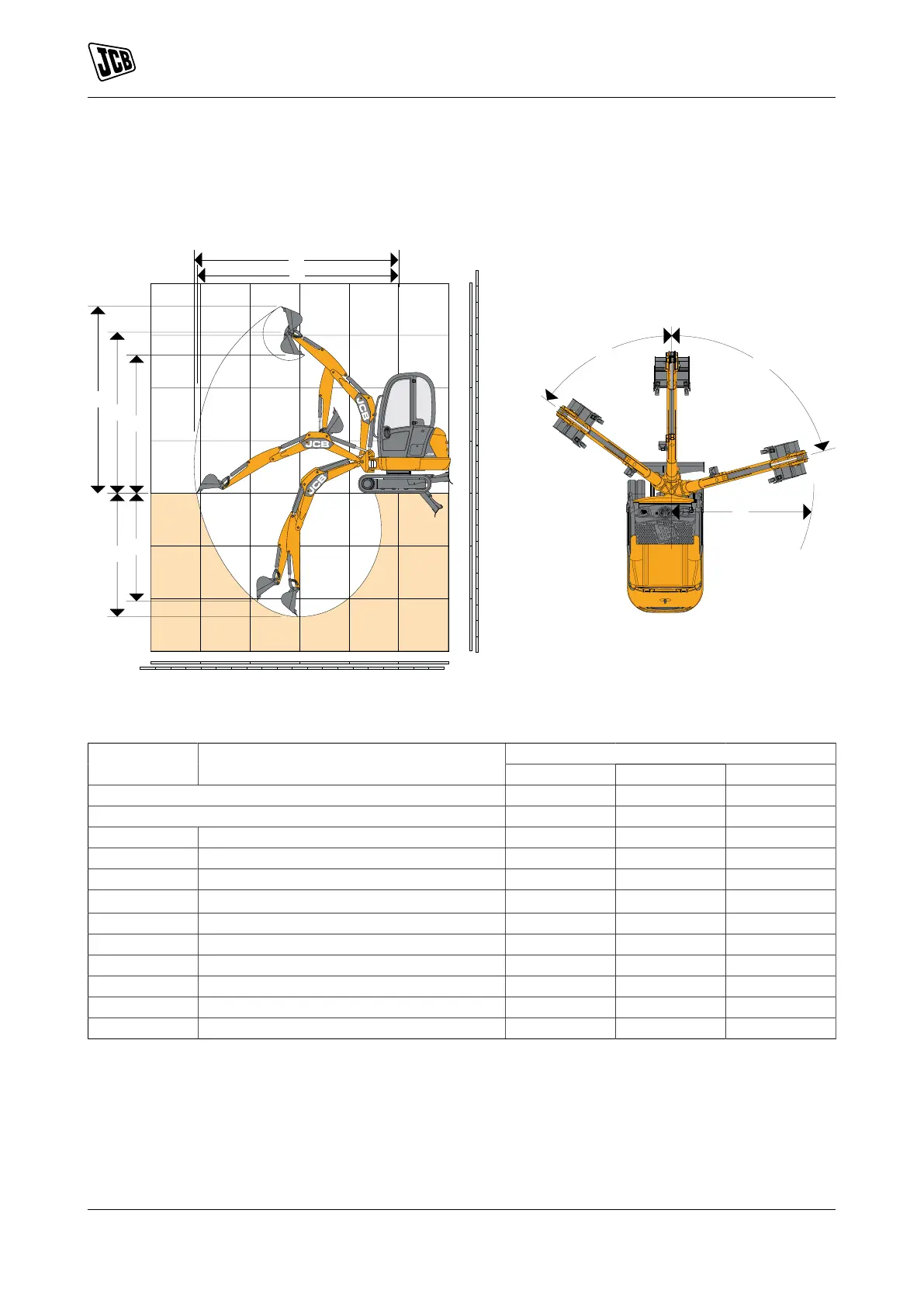

Figure 122.
0
2
4
6
8
10
12
14
16
0
0
2
4
6
8
10
12
14
16
-2
-4
-6
-8
-10
1
2
3
4
-1
-2
-3
1
2
3
Feet
Metres
4
-1
-2
5
F
C
E
G
D
B
A
H
I
J
Table 20. Machine Dimensions
8018 CTSDimension Description
mm mm mm
Boom length 1,807 1,807 1,807
Dipper length 1,161 1,261 1,500
A Max. digging reach 4,121 4,222 4,449
B Max. dumping reach on ground 4,073 4,170 4,401
C Max. digging depth - dozer up 2,343 2,442 2,682
C
Max. digging depth - dozer down
(1)
2,736 2,836 3,075
D Max. digging height 3,555 3,620 3,774
E Max. dump height 2,628 2,692 2,846
F Max. height to the dipper nose - pivot pin 3,054 3,118 3,272
G Max. vertical wall cut depth 2,053 2,148 2,376
H Minimum front swing radius - no offset 1,638 1,654 1,693
H Minimum front swing radius - fully offset 1,427 1,442 1,477
(1) Max. dig depth when dozer blade fully lowered.

jcb 8018 CTS Specifications

General

Brand	jcb
Model	8018 CTS
Category	Compact Excavator
Language	English
