jcb 8018 CTS User Manual

Technical Data
Performance Dimensions
168 9821/6100-4 168
(For: 8020 CTS)

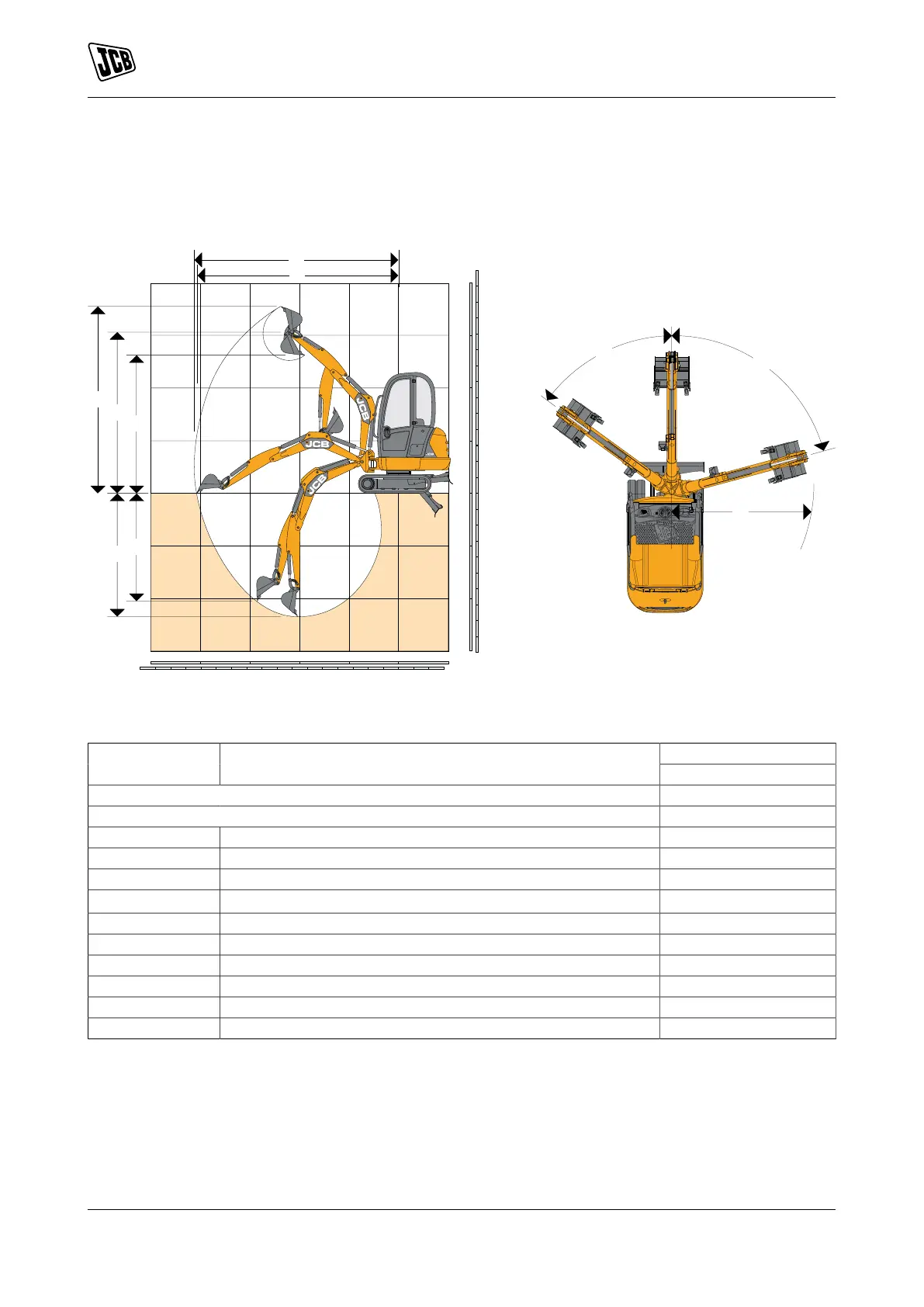

Digging
Figure 125.
0
2
4
6
8
10
12
14
16
0
0
2
4
6
8
10
12
14
16
-2
-4
-6
-8
-10
1
2
3
4
-1
-2
-3
1
2
3
Feet
Metres
4
-1
-2
5
F
C
E
G
D
B
A
H
I
J
Table 21. Machine Dimensions
8020 CTSDimension Description
mm
Boom length 1,899
Dipper length 1,261
A Max. digging reach 4,308
B Max. dumping reach on ground 4,252
C Max. digging depth - dozer up 2,504
C
Max. digging depth - dozer down
(1)
X (-)
D Max. digging height 3,689
E Max. dump height 2,779
F Max. height to the dipper nose - pivot pin 3,194
G Max. vertical wall cut depth 2,187
H Minimum front swing radius - no offset 1,737
H Minimum front swing radius - fully offset 1,519
(1) Max. dig depth when dozer blade fully lowered.
