jcb CT160 - Service Point Locations

01 - Machine
09 - Description
15 - Service Point Locations
01 - 23 9813/7750-1 01 - 23
15 - Service Point Locations
Introduction

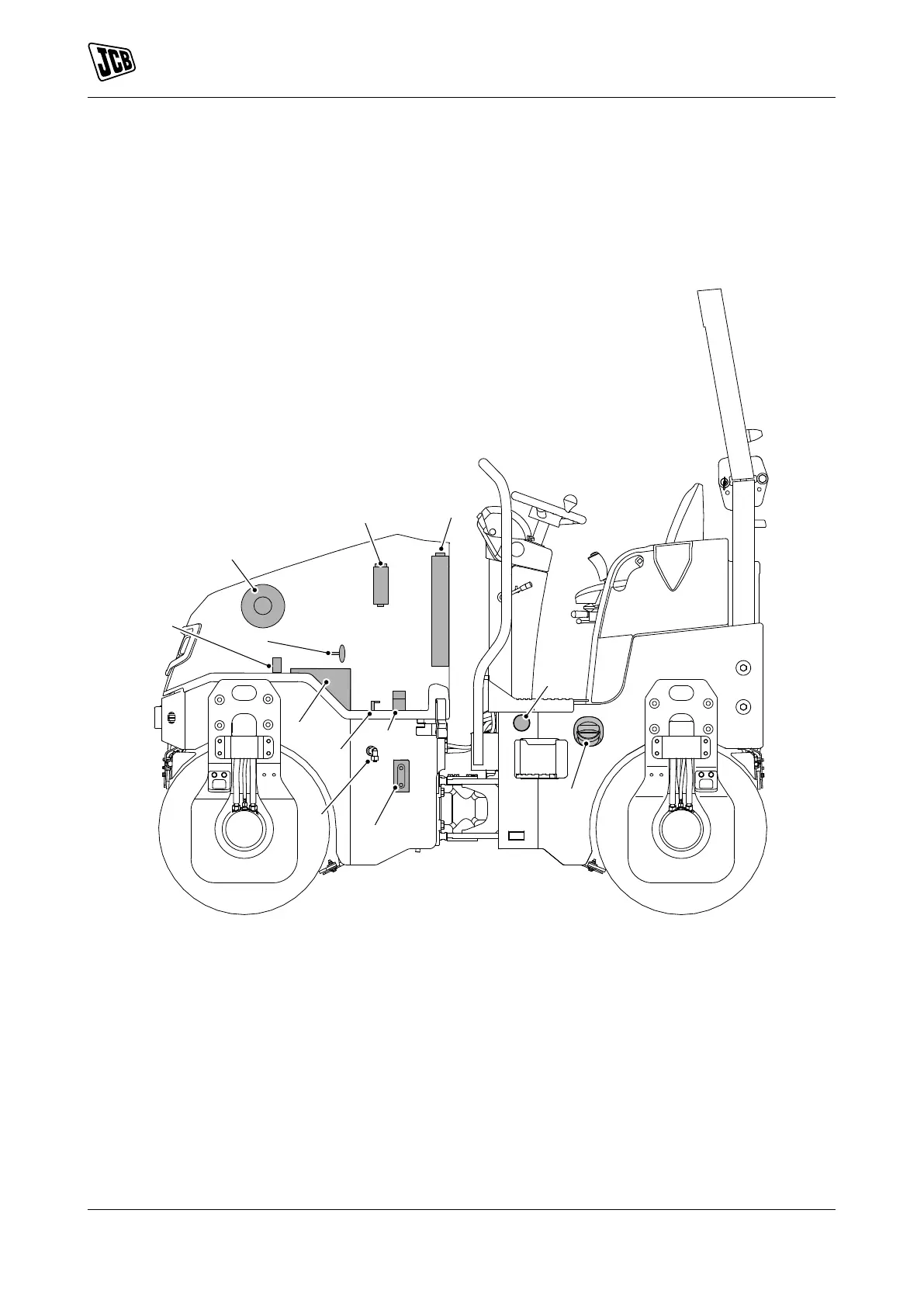

Figure 4.
G
F
E
C
B
A
D
J
K
L
M
H
A Diesel fuel filler cap B Hydraulic oil level indicator
C Hydraulic oil filler cap D Battery isolator
E Battery F Engine oil dipstick
G Air filter H Engine oil drain
J Water separator/fuel filter K Radiator
L Primary fuses M Fuel filter (inline)
