Maintenance
Electrical System
112
9831/0650-3
112

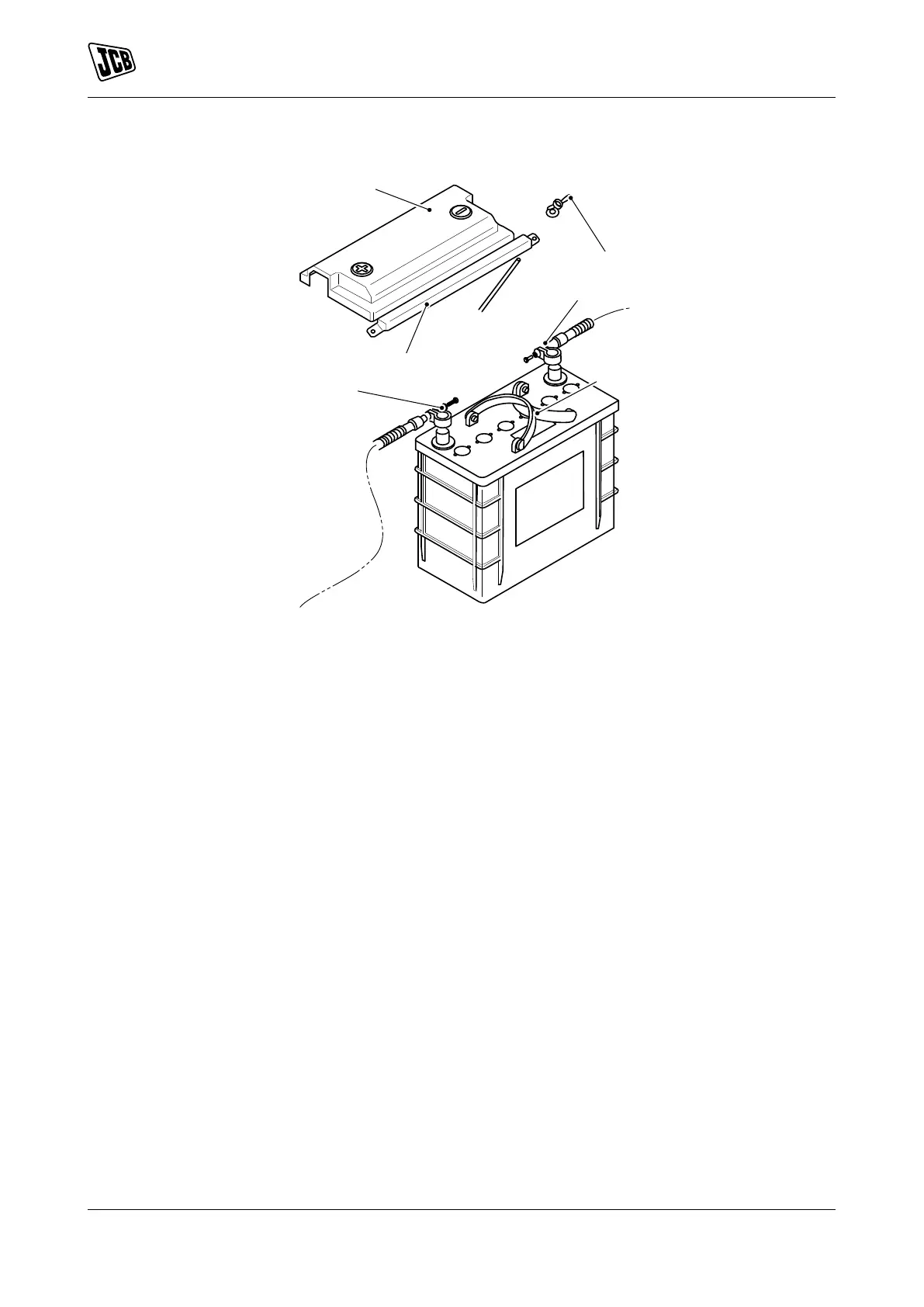

Figure 91.
F
A
E
B
D
C
A
Cover
B
Nut
C
Cable 1
D
Handle
E
Cable 2
F
Clamp
1.
Make the machine safe.
2.
Use the handles to put the battery into its compartment.
3.
Connect the cable 1 and the cable 2.
4.
Install the cover (if removed).
5.
Install the clamp.
6.
Install the two nut and the two washers.
7.
Check the battery terminals.
Refer to: Clean (Page 110).
