About the Product
Installation and Removal
18
9831/0650-3
18

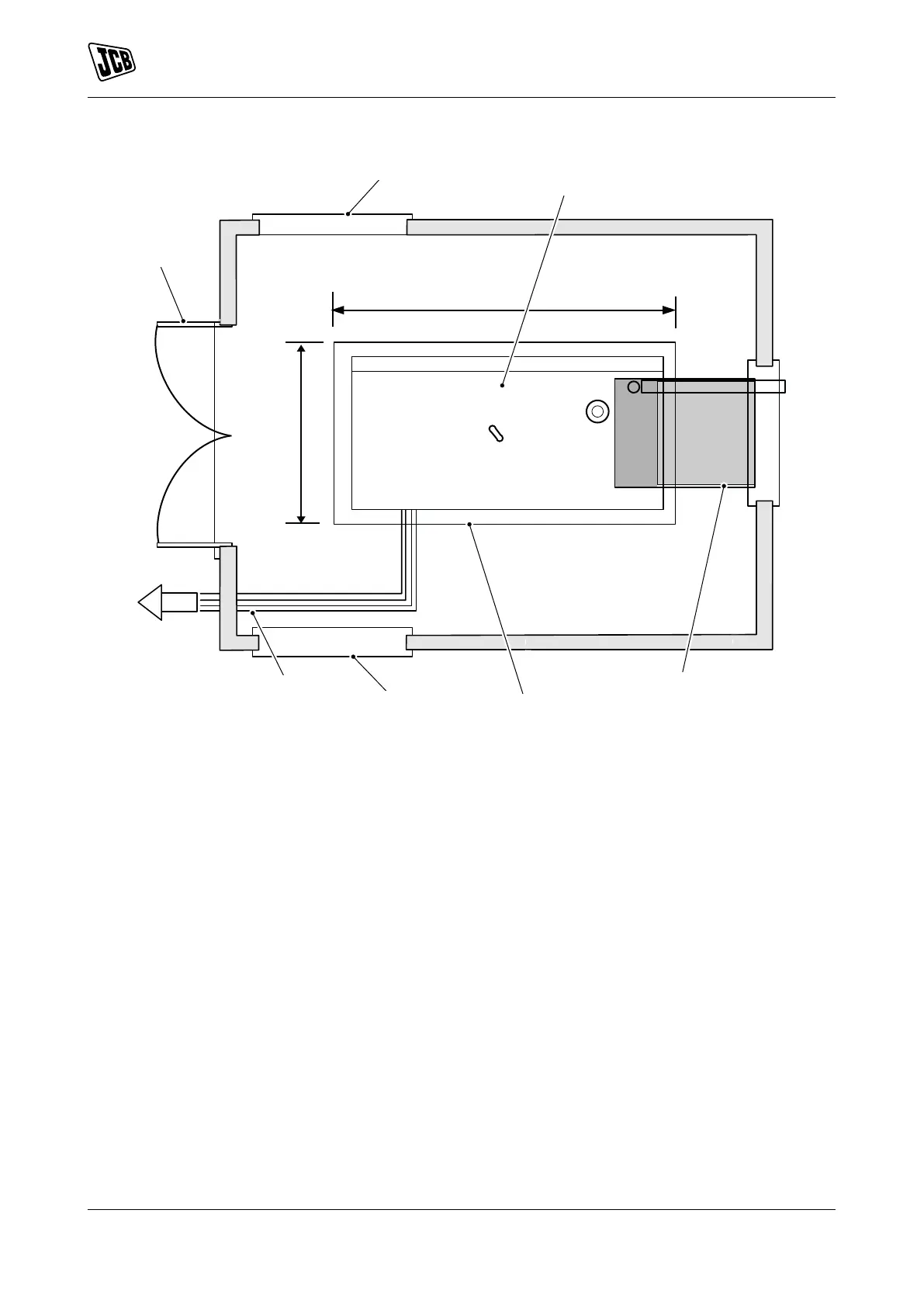

Figure 12. Static Soundproof Generator Set - Plan View
B
F
D
B
C
E
A
G
H
A
Generator set
B
Air inlet grill
C
Exhaust and hot air outlet duct
D
Cable Conduit
E
Access door
F
Concrete base
G
Generator length + 200mm
H
Generator width + 200mm
24
26
