jcb G20QS User Manual

Operation
Instruments
39 9831/0650-3 39

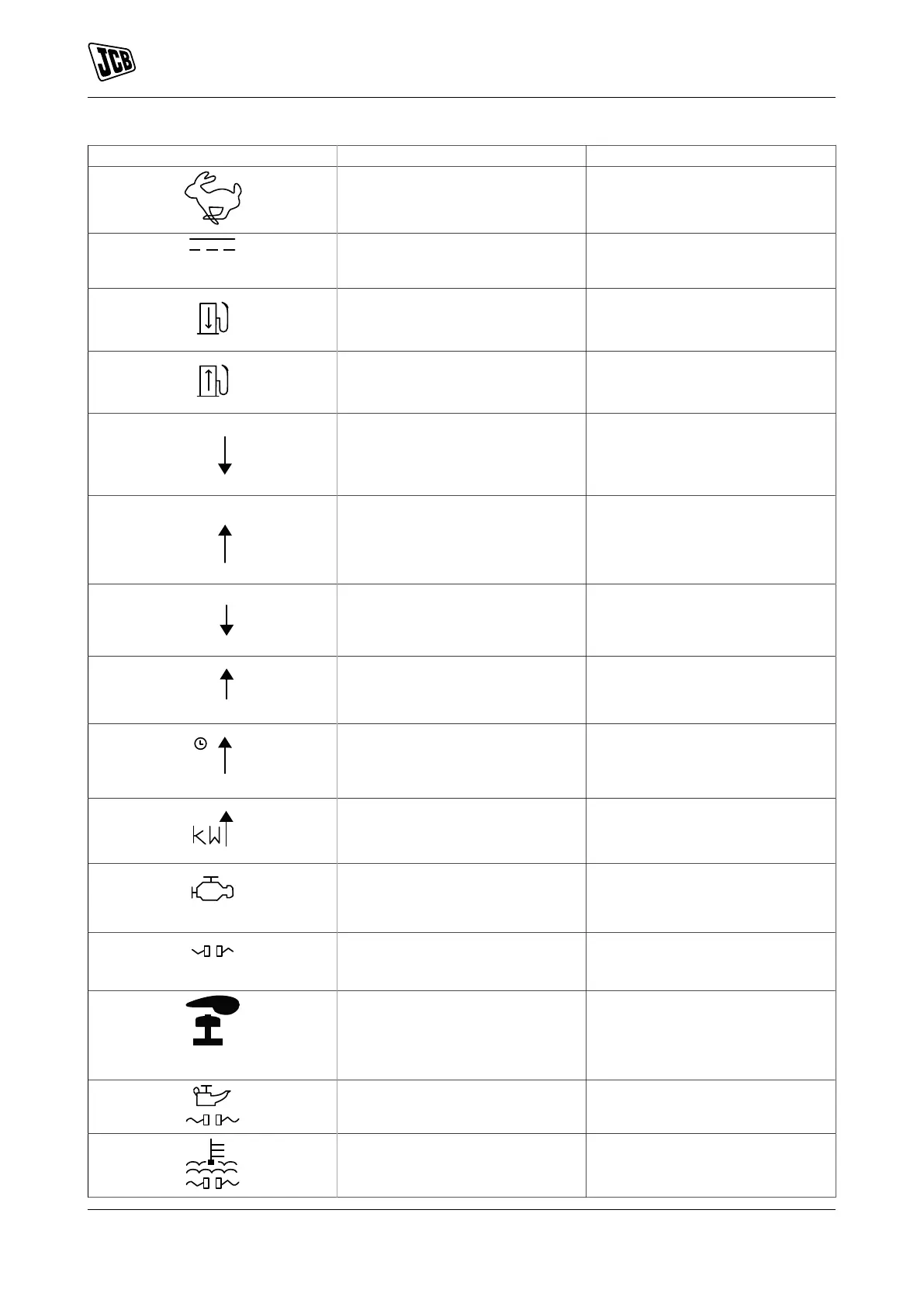

Icon Fault Description
Over Speed The engine speed has risen above
the over speed pre alarm setting.
Charge Failure The auxiliary charge alternator
voltage is low as measured from
the W/L terminal.
Low Fuel Level The level detected by the fuel lev-
el sensor is below the low fuel level
pre-set alarm setting.
High Fuel Level The level detected by the fuel level
sensor is above the high fuel level
pre-set alarm setting.
v
Generator Under Voltage The generator output voltage has
fallen below the pre-set alarm set-
ting. after the Safety On timer has
expired.
v
Generator Over Voltage The generator output voltage has
risen above the pre-set alarm set-
ting.
H
Z
Generator Under Frequency The generator output frequency
has fallen below the pre-set alarm
setting after the `Safety On' timer
has expired.
H
Z
Generator Over Frequency The generator output frequency
has risen above the pre-set alarm
setting.
A
Delayed Over Current The measured current has risen
above the configured trip level for a
configured duration.
kW Overload The measured kW has risen above
the configured trip level for a con-
figured duration.
ECM
CAN ECU Fault The engine ECU has detected an
alarm - check engine light Contact
Engine Manufacturer for support.
CAN
CAN Data Fail The module is configured for CAN
operation and does not detect data
on the engine CAN data link.
Emergency Stop The emergency stop button has
been depressed. This failsafe (nor-
mally closed to emergency stop)
input and immediately stops the
set should the signal be removed.
Oil Sender Open Circuit The oil pressure sensor has been
detected as being open circuit.
Coolant Temperature Sender
Open Circuit
The coolant temperature sensor
has been detected as being open
circuit.
