jcb G400RS User Manual

RS T4F Diesel Generator
|
G400RS 7

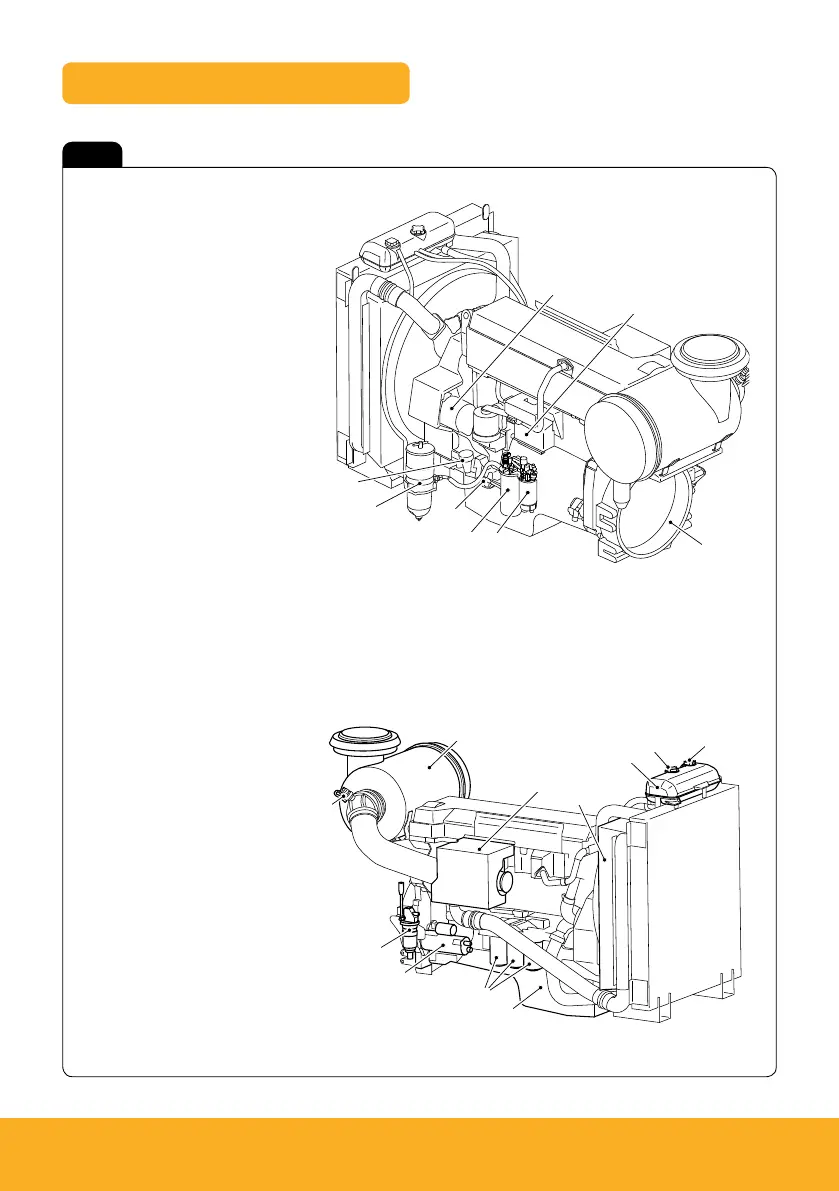

Key components – engine
A Coolant pressure cap
B Coolant filler cap
C Coolant expansion tank
D Radiator
E Turbocharger
F Air filter
G Air filter indicator
H Engine oil drain pump
J Starter motor
K Oil filter
L Oil sump
Fig 3
E
G
D
F
B
C
A
H
E
J
G
F
L
K
H
A
B
C
D
A Flywheel housing
B Fuel pre-filter
C Fuel filter
D Engine oil dipstick
E Main fuel filter
F Engine oil filler cap
G Alternator
H EMS (Electronic Monitoring
System) control unit
