jcb G45 - 3 Way Fuel Valve (WFV)

Attachments
Working with Attachments
64 9831/0650-3 64
3 Way Fuel Valve (WFV)

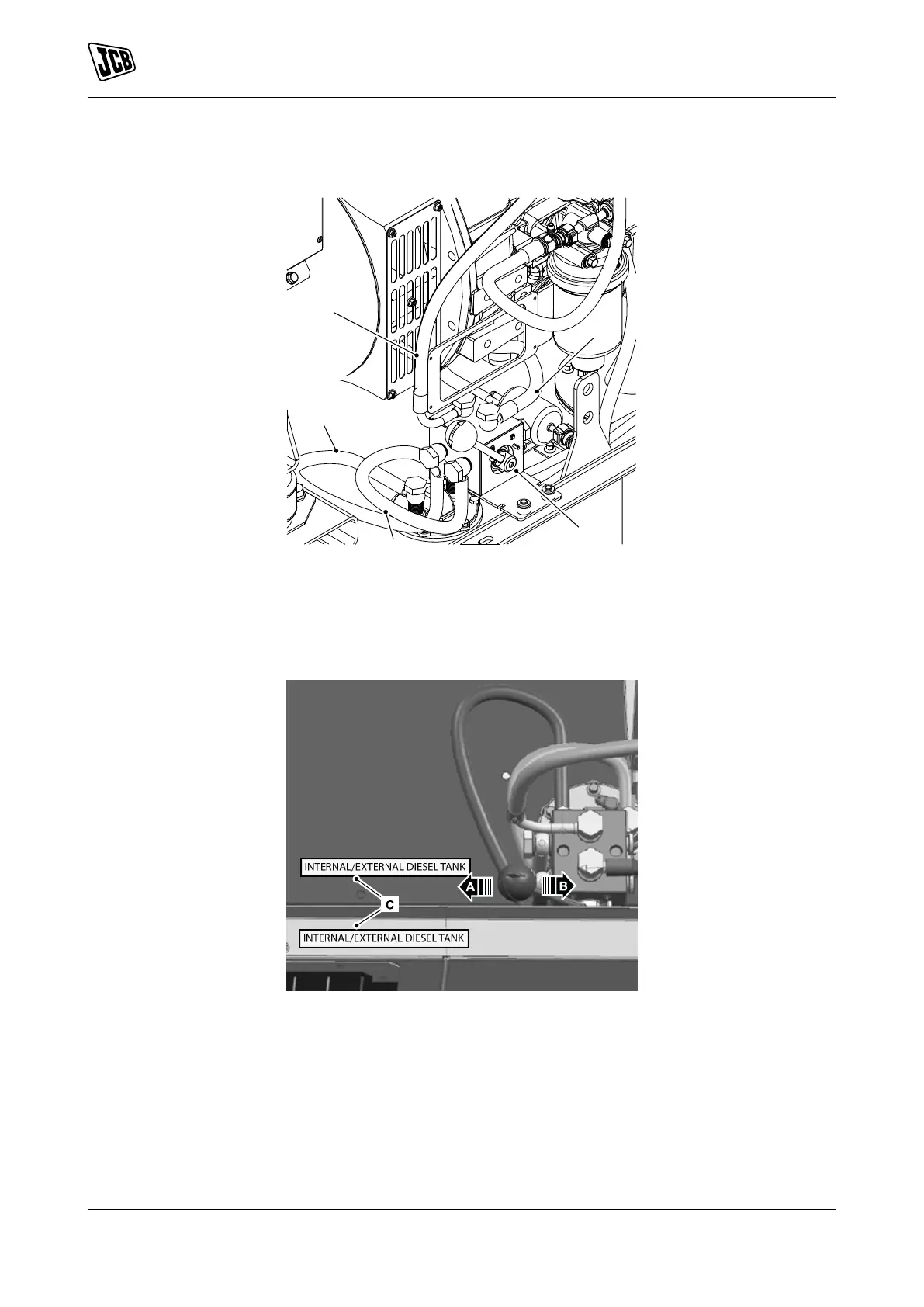

Figure 52.
B
A
E
D
C
A Return line (Engine return to 3WFV) B Forward line (3WFV to lift pump inlet)
C 3 way fuel valve D Return line (3WFV outlet to fuel tank)
E Forward line (Fuel tank suction to 3WFV)
Always refer to the direction label for the selection of internal /external tank. Refer to Figure 53.
Figure 53.
A Internal tank B External tank
C Direction label
