The optional 3-Way Fuel Valve allows the
generator to be connected to feed and return
to a remote bulk tank.
The selection lever dictates if the engine will feed
from either the base tank or bulk tank. This selection
lever should be fully engaged in the chosen position.
Please consult the manual for details of maximum
distances and acceptable elevation of bulk fuel tanks.

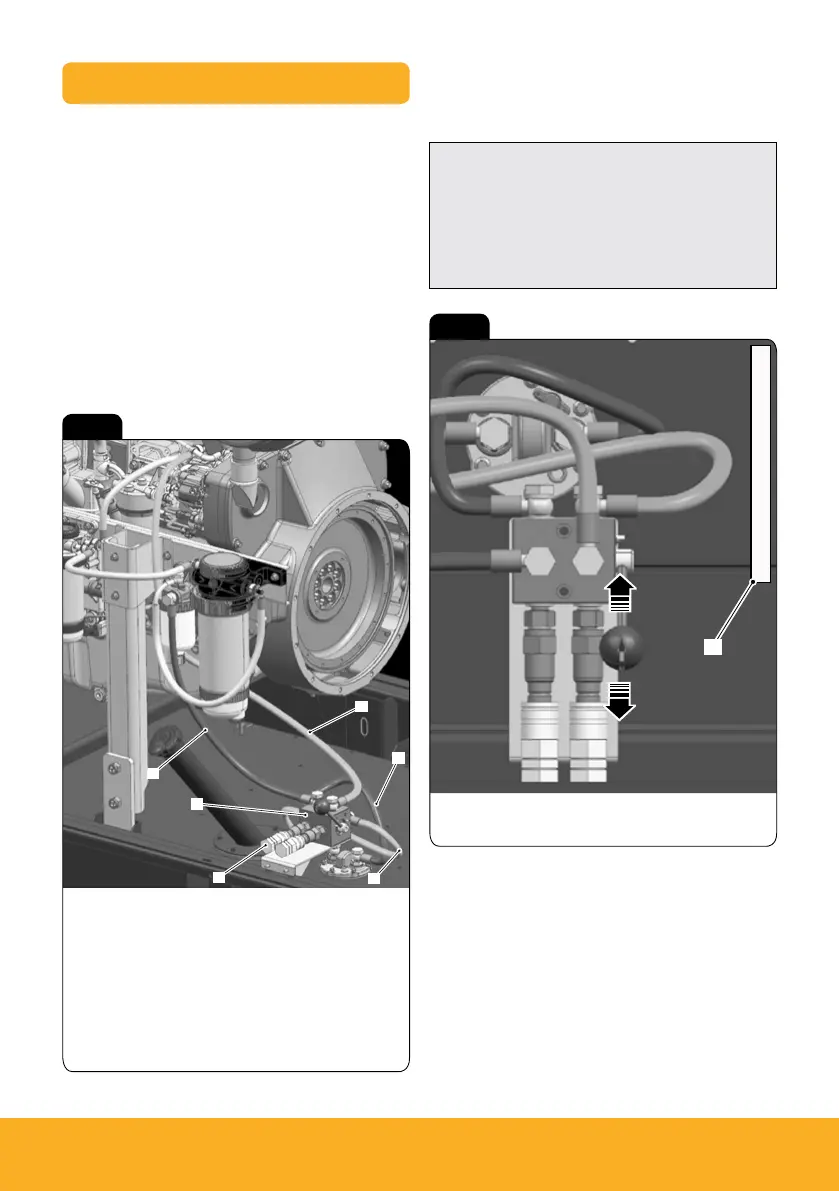

EXTERNAL/ I NTERNAL DI ESEL TANK
A
Fuel connections (where fitted)
A Engine to 3WFV return hose
B Forward hose
C Return hose
D Quick Release coupling (QRC)
E 3 way fuel valve (3WFV)
F 3WFV to water separator forward hose
A Direction selection
Fig 11
Fig 12
NOTE: Always check the position of
the valve is correct before starting
the machine to ensure the engine is
not starved of fuel.
