41 - 4
Dismantling (continued)

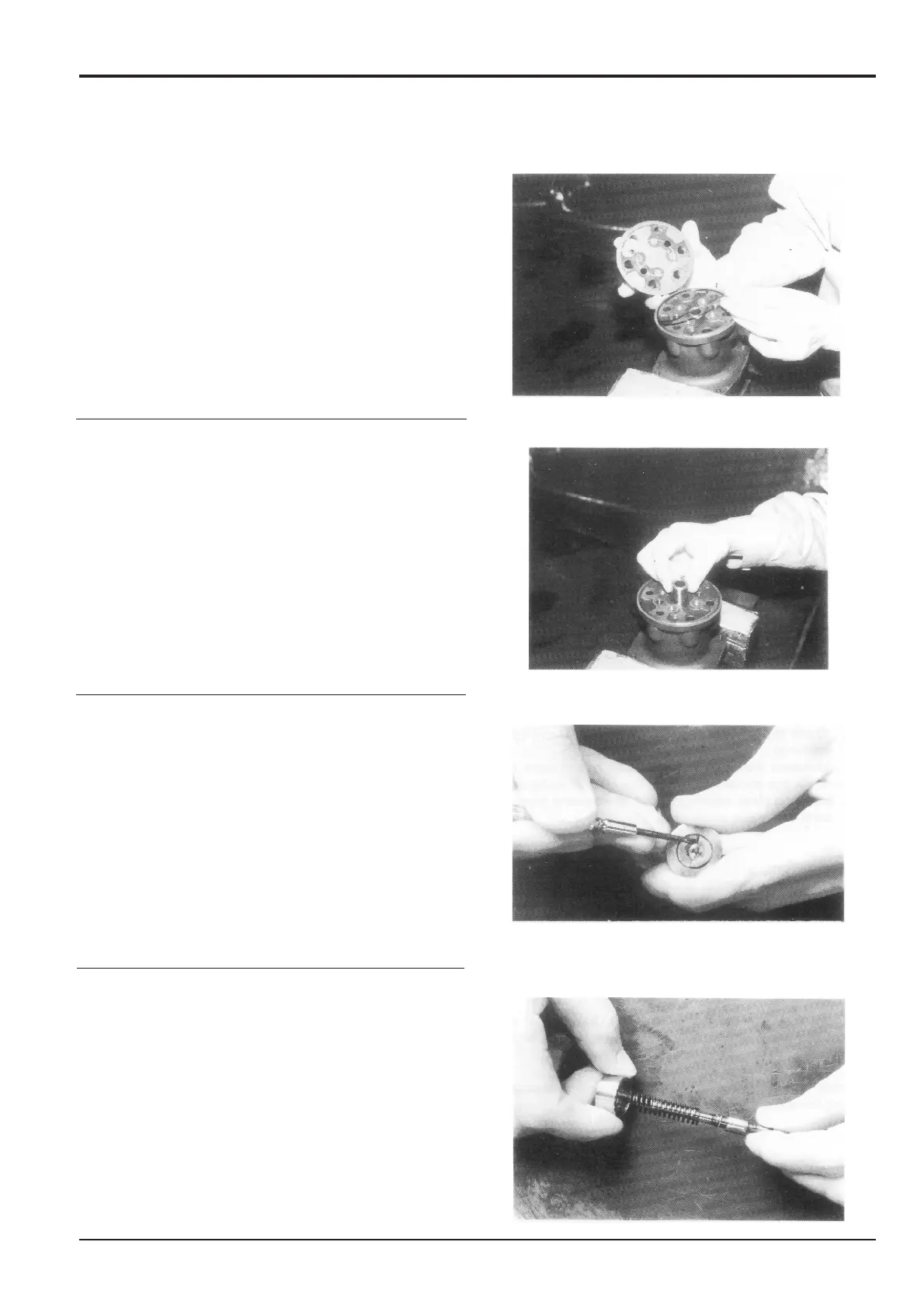

12. Remove the port plate (111) and 'O'-ring (122) from the
casing.
13. Remove the bushing (131) from the casing.
14. To disassemble the pressure reduction assembly, stand
the spool (201) on a level work bench, pull the spring
seat (216) down and remove the two semicircular
washers 1 (215) with a small screwdriver.
Note: Take care not to scratch the surface of the spool.
Do not pull down the spring seat by more than 6 mm.
15. Separate the spool (201), spring seat (216), spring (241)
and washer 2 (217).
Note: Keep the parts of the assembly together until
reassembly.
Section E
Hydraulics
9803/6400
Section E
41 - 4
Issue 1
Remote Control Valve JS200/JS240
