Dipper Ram (continued)

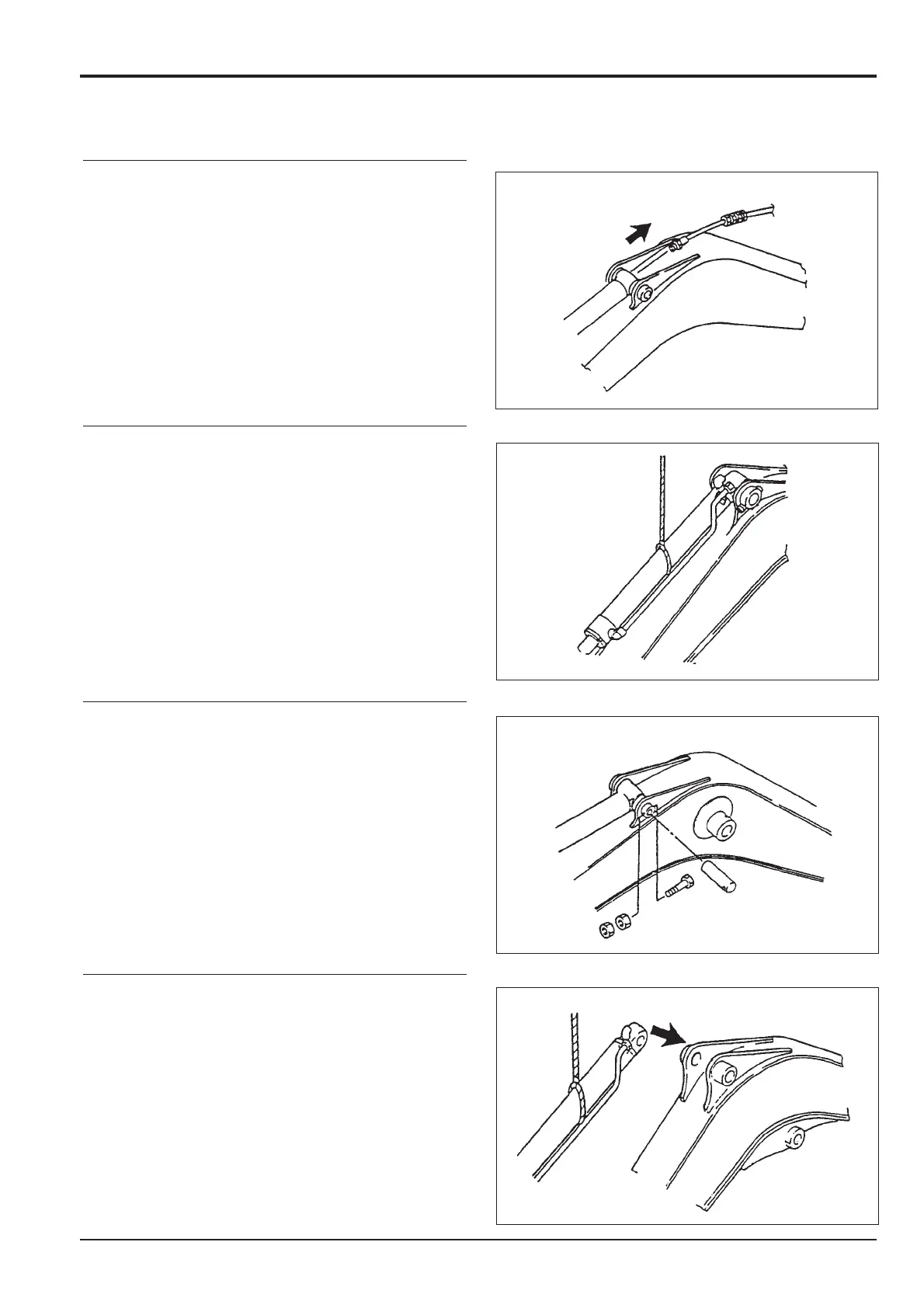

8. Remove the grease tube, from the Dipper ram.
9. Attach a sling and lift the Dipper ram.
10. Remove the nuts and bolts, push out the pin using a bar
and hammer. Lift the ram from the boom.
Installation
1. Attach a sling and lift the Dipper ram onto the boom.
73 - 3
