Slew Motor
*
13 Carry out the following procedure only when bearing 57
is damaged or badly worn, and dismantling is
necessary.

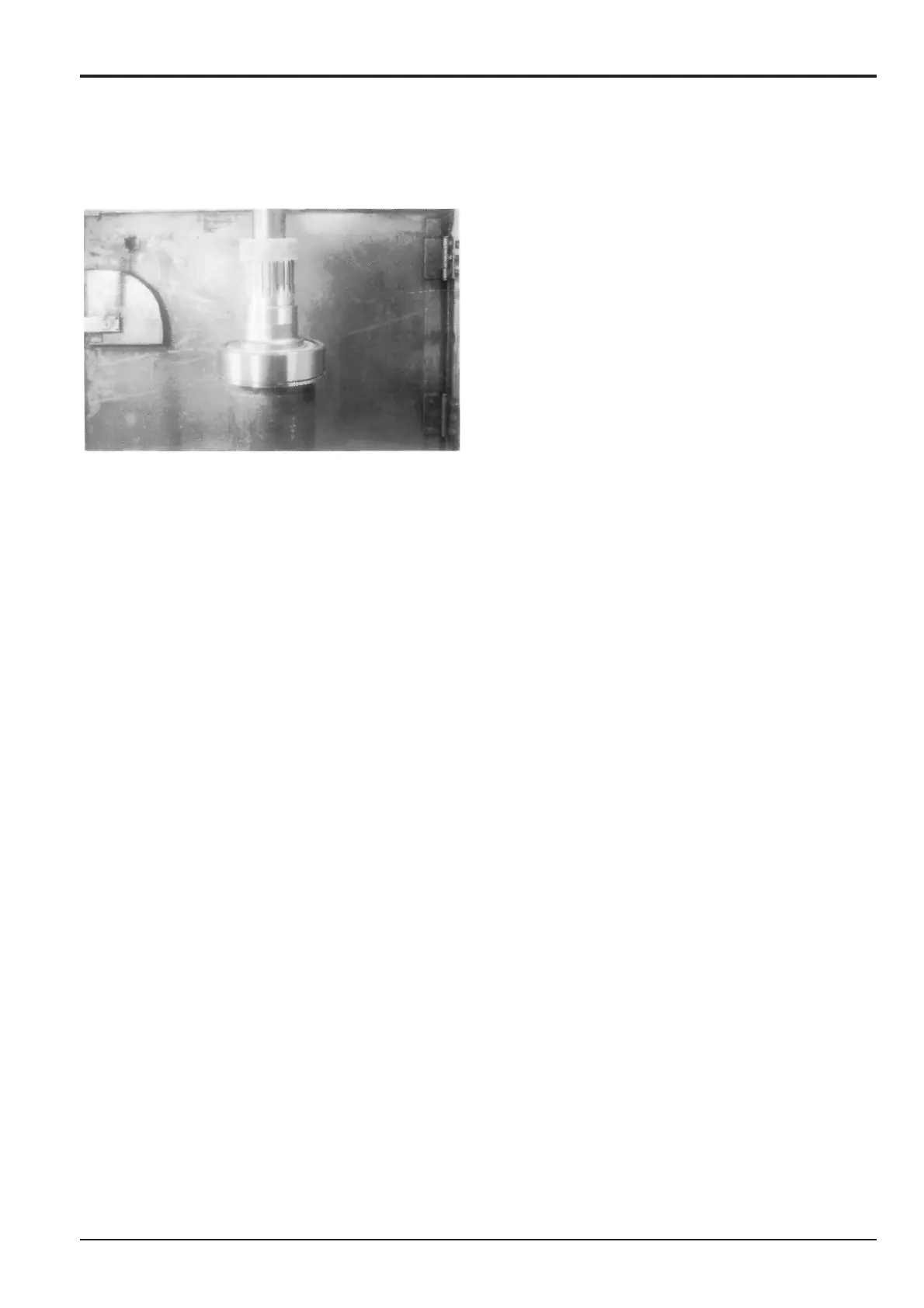

Support the self aligning roller bearing 57, then press
the motor end of shaft 53 to remove bearing 57, plate 56
and collar 54 from the shaft 53.
Reduction Gear
Dismantling (cont’d)
