9 - 3
Dismantling
(continued)

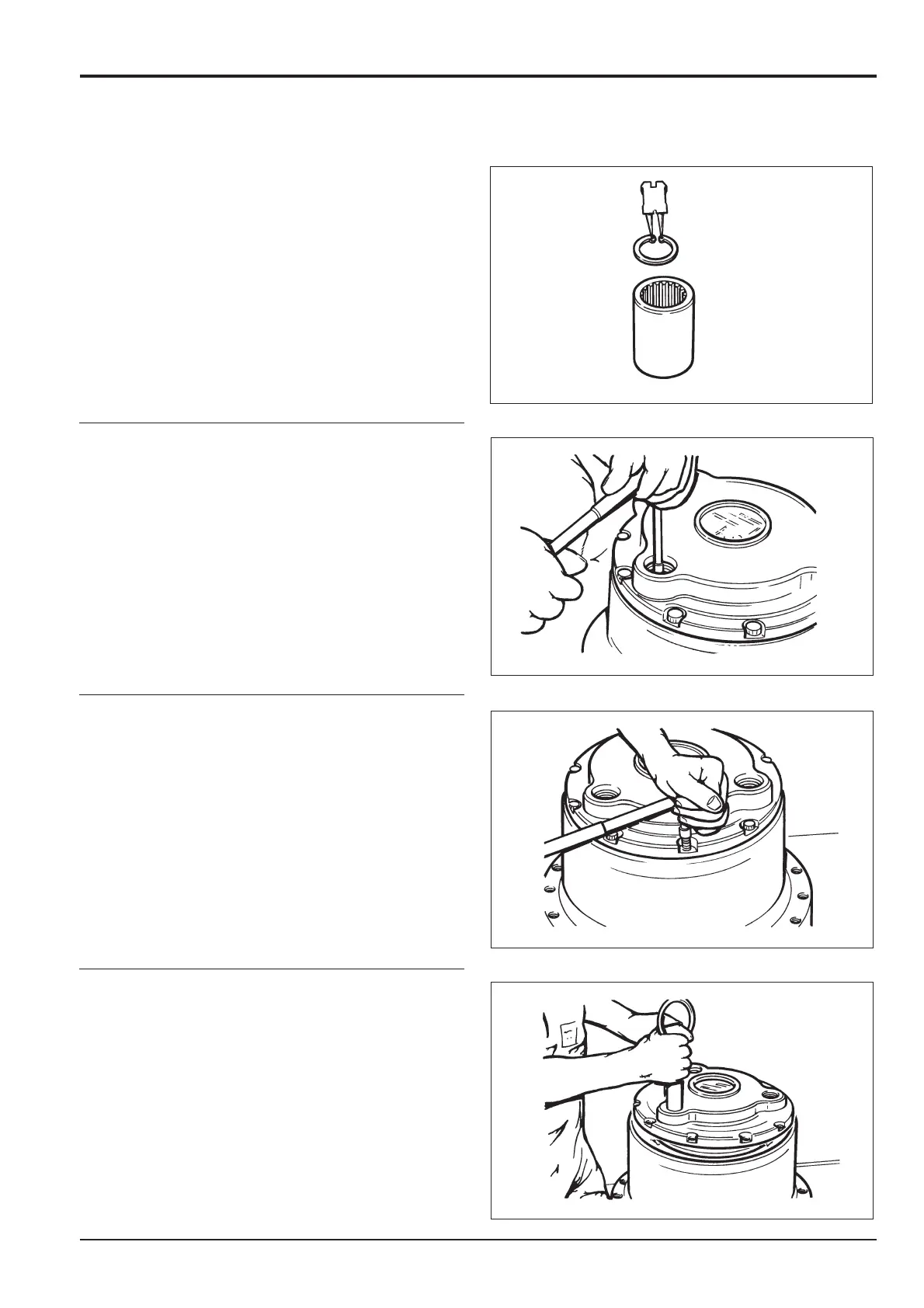

4.
Using pliers remove the (20) circlip, from the
(19) coupling.
5.
Turn the gearbox around, unscrew and remove the
(2) two plugs,
from the end of the (4) cover.
6.
Remove the (1) socket head screw.
7.
Remove the (4) end cover.
Note:
Scr
ews M22 x 1.5 can be inserted in the two open oil
plug holes to aid the cover removal.
Section F
T
ransmission
9803/6400
Section F
9 - 3
Issue 1
Gearbox
486
488
