10 - 2

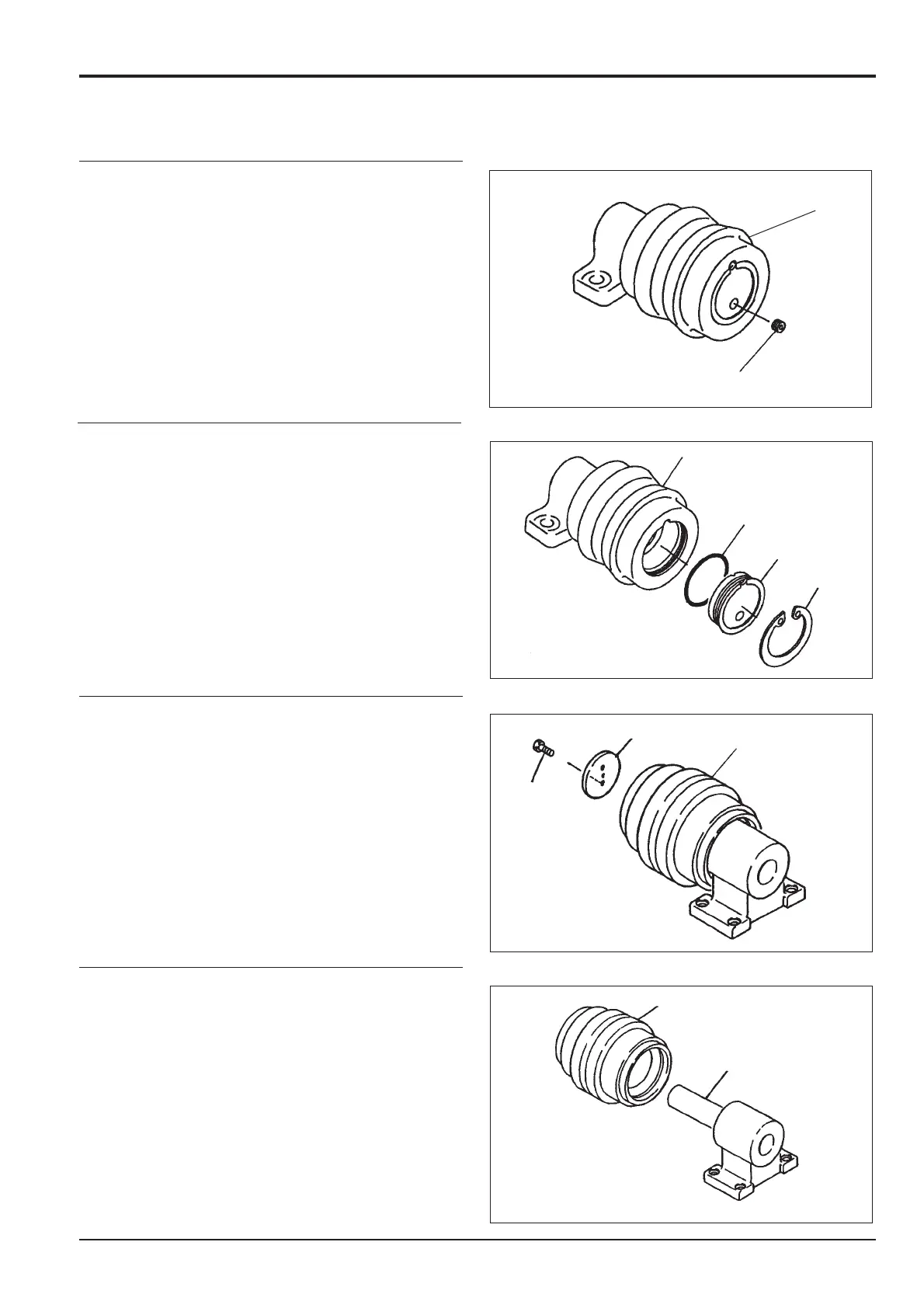

Dismantling (Two and Four bolt pedestal).
1. Clean the upper roller A with an appropriate detergent.
Remove the plug B from the cover and drain the oil.
2. Remove the retaining ring C, and remove cover D.
From cover D, remove 'O'-ring E and discard.
3. Remove bolt F, and the thrust plate G from the end of
the shaft.
4. Pull the upper roller A from the shaft H.
Section J
Track and Running Gear
9803/6400
Section J
10 - 2
Issue 1
Top Roller (continued)
B
A
A
E
D
C
F
G
A
A
H
