jcb S1930E User Manual

Operation
Battery Isolator
22 9831/3200-3 22
Battery Isolator
General
WARNING The batteries remain live even when the isolator key is removed.
Disconnect the Machine Electrics:
1. Turn the key switch to the off position.
2. Get access to the battery isolator.
Refer to: Access Apertures (Page 63).
3. Disconnect the battery isolator by pulling handle. Refer to Figure 13.
Connect the Machine Electrics:
1. Make sure the key switch is at off position.
2. Connect the battery isolator.

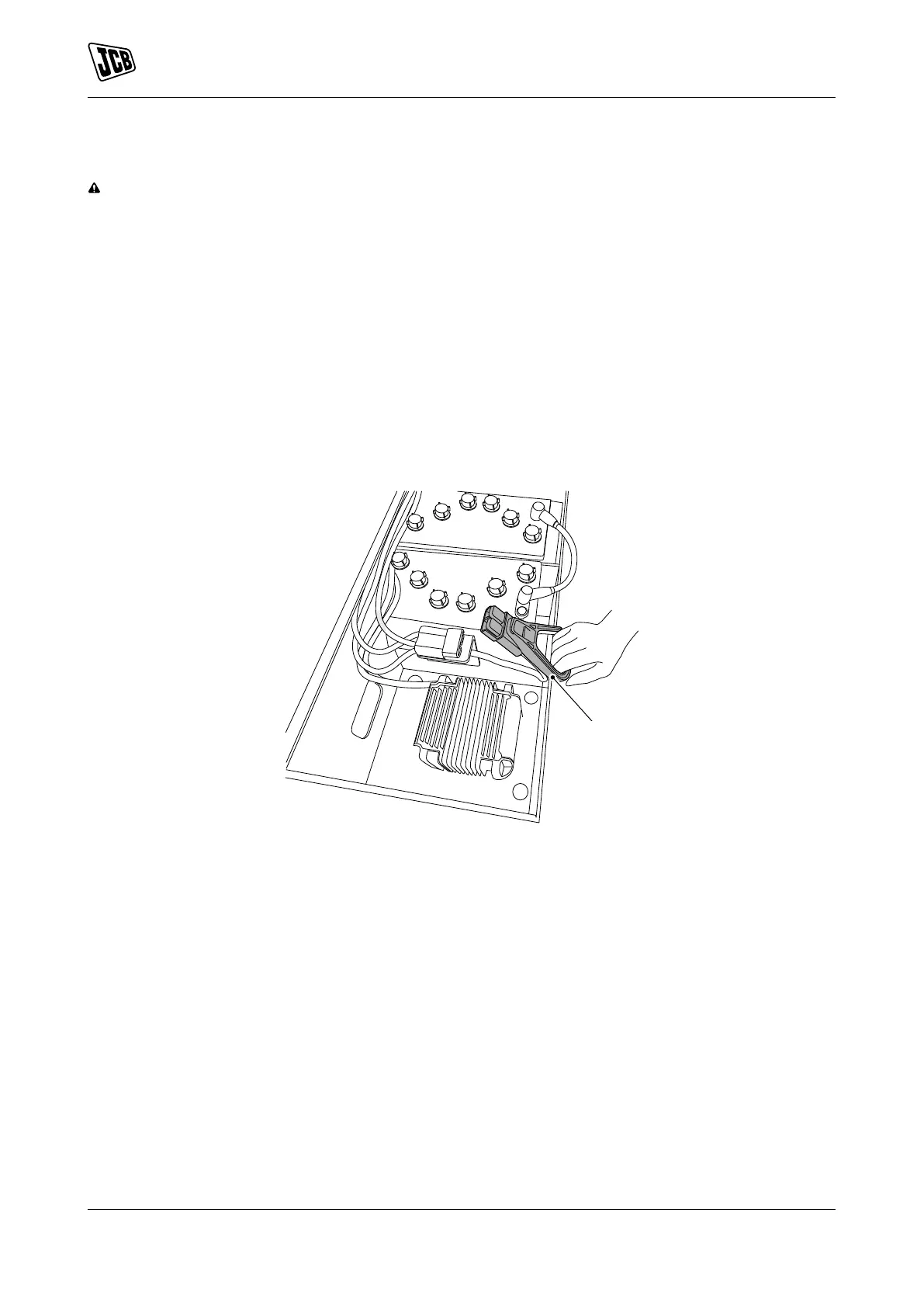

Figure 13. Lead Acid Battery
A
A Battery isolator

jcb S1930E Specifications

General

Power Source	Electric
Stowed Height	2.03m
Drive Speed - Elevated	0.8 km/h
Gradeability	25%
Tyre Type	Non-marking
Ground Clearance	0.1m
