Working with the Platform
34 9831/3200-3 34
Figure 21.
J
K
L
M

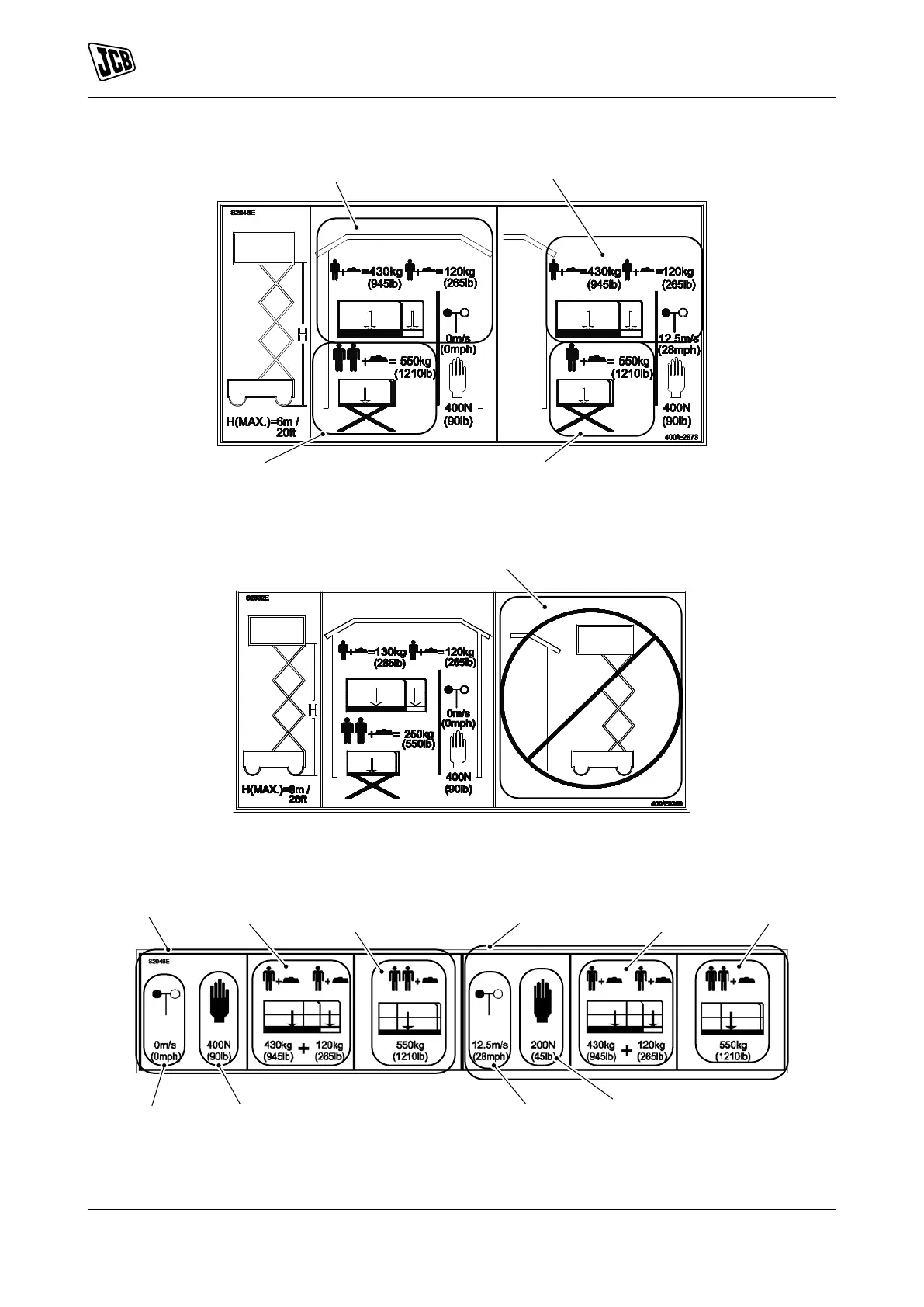

J Weight distribution on the extended platform K Weight distribution on the extended platform
L Weight distribution on the retracted platform M Weight distribution on the retracted platform
Figure 22.
A
A Not suitable for outdoor use
The decals are located at the entry point of the platform.
Figure 23.
B
A
D
C
E
F
H
G
K
J
A Indoor rating (at 0m/s wind speed) B Weight distribution on the extended platform
C Weight distribution on the retracted platform D Outdoor Rating (at 12.5m/s wind speed)
E Weight distribution on the extended platform F Weight distribution on the retracted platform
G Maximum manual force H Wind speed
