TH32006
Instruction & User Manual
m Check the condition of any markings and
ensure that they remain identical to the
original markings.
m Jacks must be maintained and repaired in
line with the manufacturer’s instructions.
Any maintenance and repair work must
be performed by qualified staff. No
modifications should be made that may
affect the jack’s compliance with safety
standards.
m Never use in a potentially explosive
atmosphere.
m Never use in strong winds.
m Never use in the rain.
m Never use in a dusty environment.
m The jack must be used within the following
application limits: temperature between
-20°C and +50°C.
m During use, the force required may exceed
400N: ask a second person for help.
SPECIFICATIONS
Max. Load
1500 kg
Min. Height
70 mm
Max. Height
610 mm
PRODUCT
DESCRIPTION
This Trolley Jack is designed to lift, but not
sustain, rated capacity loads. It is designed
to be used in conjunction with jack stands.
This Trolley Jack has a unique feature which
provides fast, no load lifts to the jacking point.
Intended use: To lift one axle of a vehicle
for the purpose of service and / or repair of
vehicle components. After lifting, loads must
be immediately supported by appropriately
rated jack stands. Check with vehicle owner’s
manual for proper jacking points.

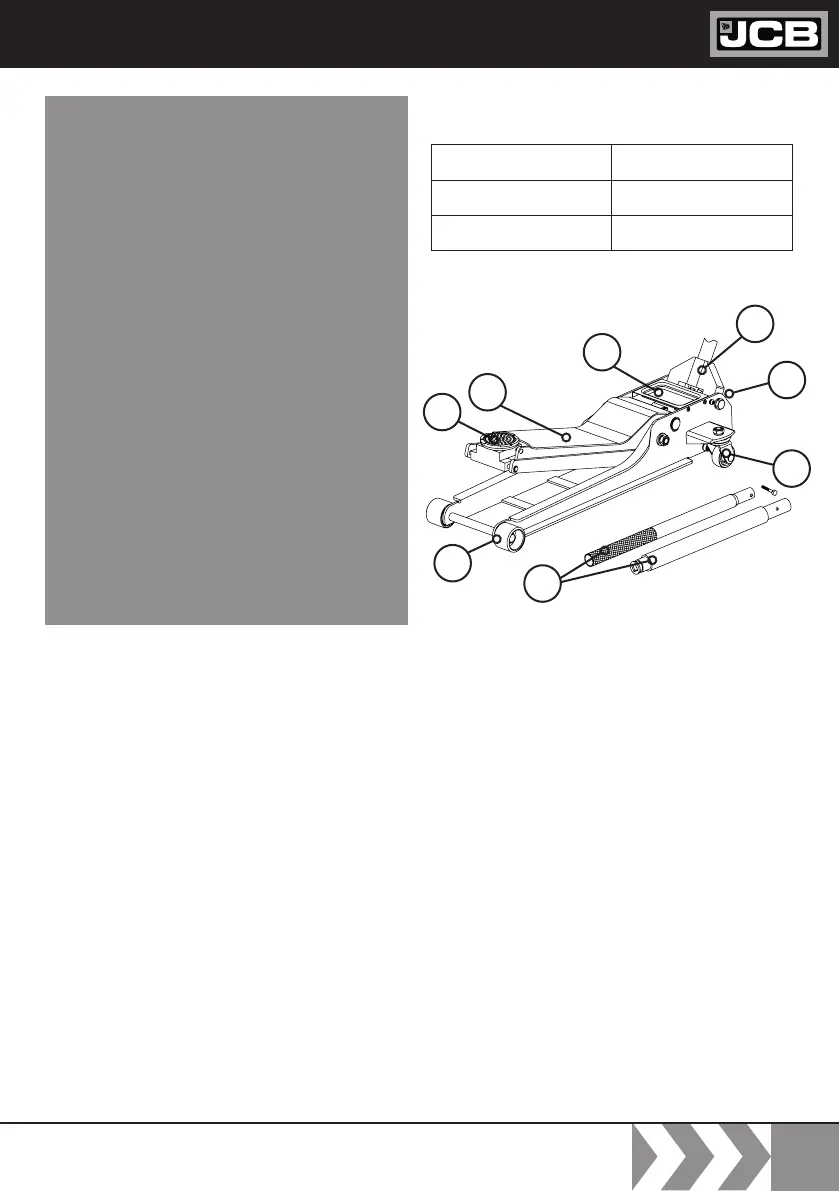

1.
RELEASE VALVE
2.
PUMP COVER PLATE
3.
LIFTING ARM
4.
SADDLE
5.
FRONT WHEEL
6.
HANDLE
7.
REAR CASTOR
8.
HANDLE SLEEVE
7
8
1
4
2
3
5
6
