CHAPTER 2 Operations and Maintenance
2 - 13

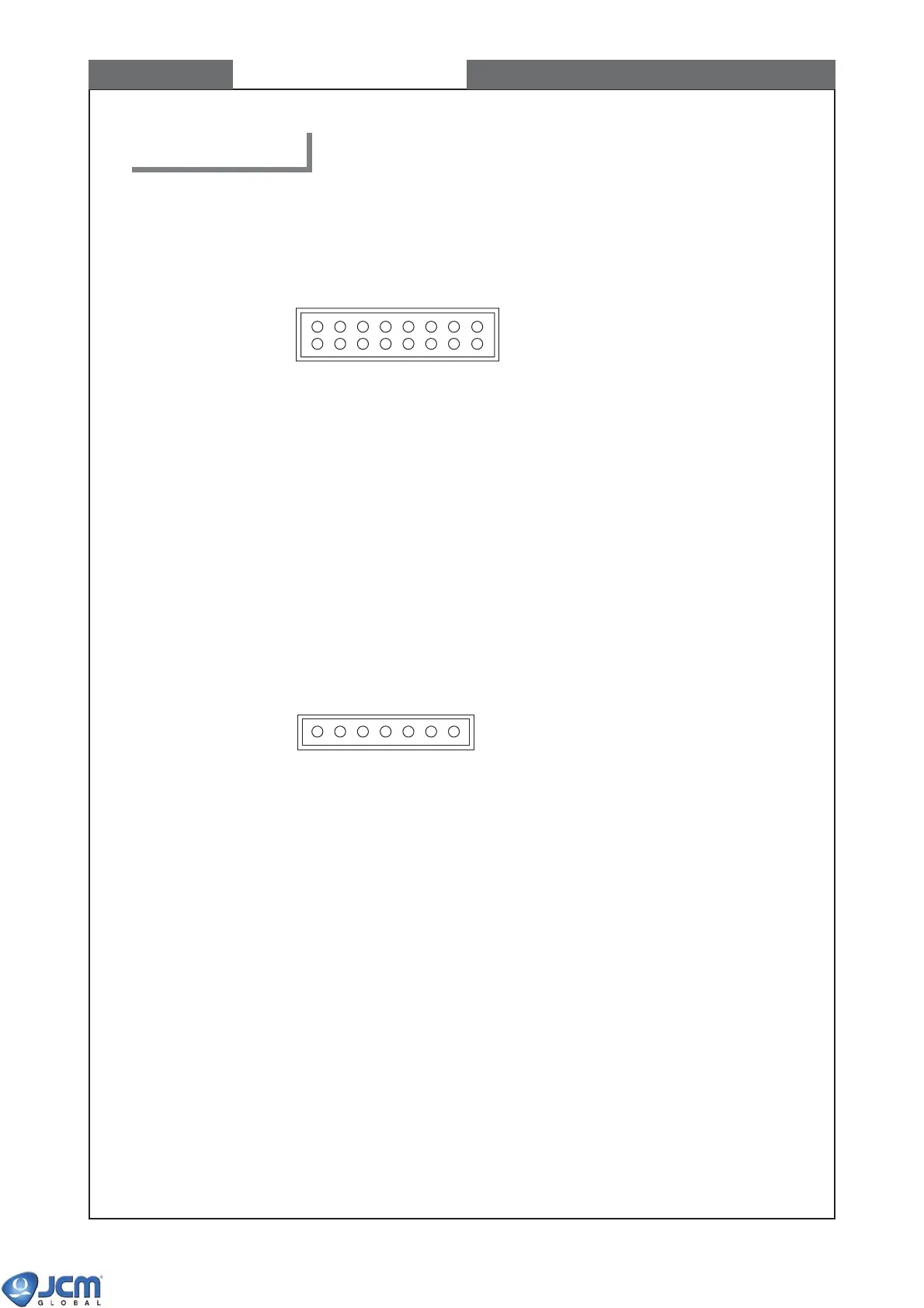

5-1 The interface connector and the mating connectors
(1) Acceptor's connector
Box type plug XG4C-1634 (OMRON)
(2) Mating connector 1
- XG5M-1635-N (OMRON)
- Contact (incorporated in the housing)
- Recommended wire: Non-bundled AWG26 to 28 UL1007
Mating connector 2
- MIL type socket XG4M-1630-T (OMRON)
- Recommended wire: 27 mm-pitch twisted flat cable AWG28 UL2651
5-2 The external display connector and the mating connector
(1) Acceptor's connector
Pin header S7B-ZR (JST)
(2) Mating connector
- Housing ZHR-7 (JST)
- Contact SZH-002T-P0.5
- Recommended wire AWG26 to 28 UL1061
16 2
15 1
CN2
1
CN2
7
5. Connector
