Fog Lamps
1. Access lamp through the lower fascia cutout.
2. Remove electrical connector from bulb.
3. Remove bulb from housing.
Rear Turn Signal And Backup Lamp
1.

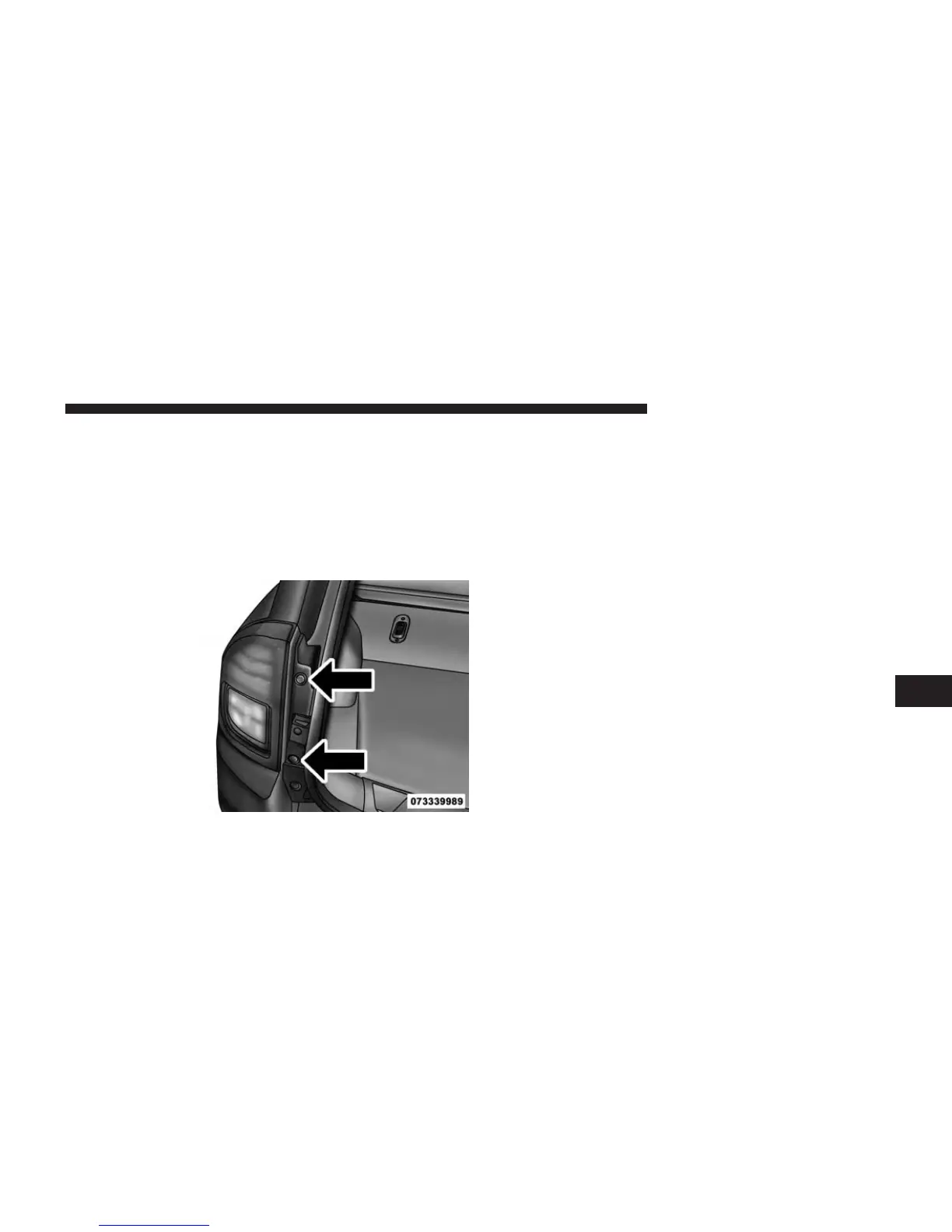

Remove the two push-pins from the taillamp housing.
2. Grasp the taillamp and pull firmly to disengage the
lamp from the aperture panel.
3. Twist and remove socket from lamp.
4. Remove bulb from socket and replace.
License Lamps
1. Use a screw driver to gently pry against the side of the
snap tab to remove the lamp from the liftgate.
2. Rotate the socket 1/4 turn counterclockwise.
3. Pull bulb from socket.
Center High-Mounted Stoplamp
This light is an LED assembly. See your authorized dealer
for replacement.
7
MAINTAINING YOUR VEHICLE 479
