326 SERVICING AND MAINTENANCE
3. Disconnect the electrical connector by
pushing the release.
4. Remove the rear body side tail lamp, sliding
it away from the back of the vehicle.
Body Side Tail Lamp
5. Replace the bulb as necessary by turning
and removing the bulb housing.
Reverse Side of Tail Lamp
6. Insert the new bulb, making sure it is
properly locked.
7. Reposition the rear body side lamp
assembly on the car.
8. Reconnect the electrical connector.
9. Reinstall the body side lamp making sure to
align the ball studs.
Body Side Tail Lamp
10. Install fasteners and tighten body side lamp
assembly.
11. Finally close the tailgate.
NOTE:
It is advised referring to an authorized dealer.

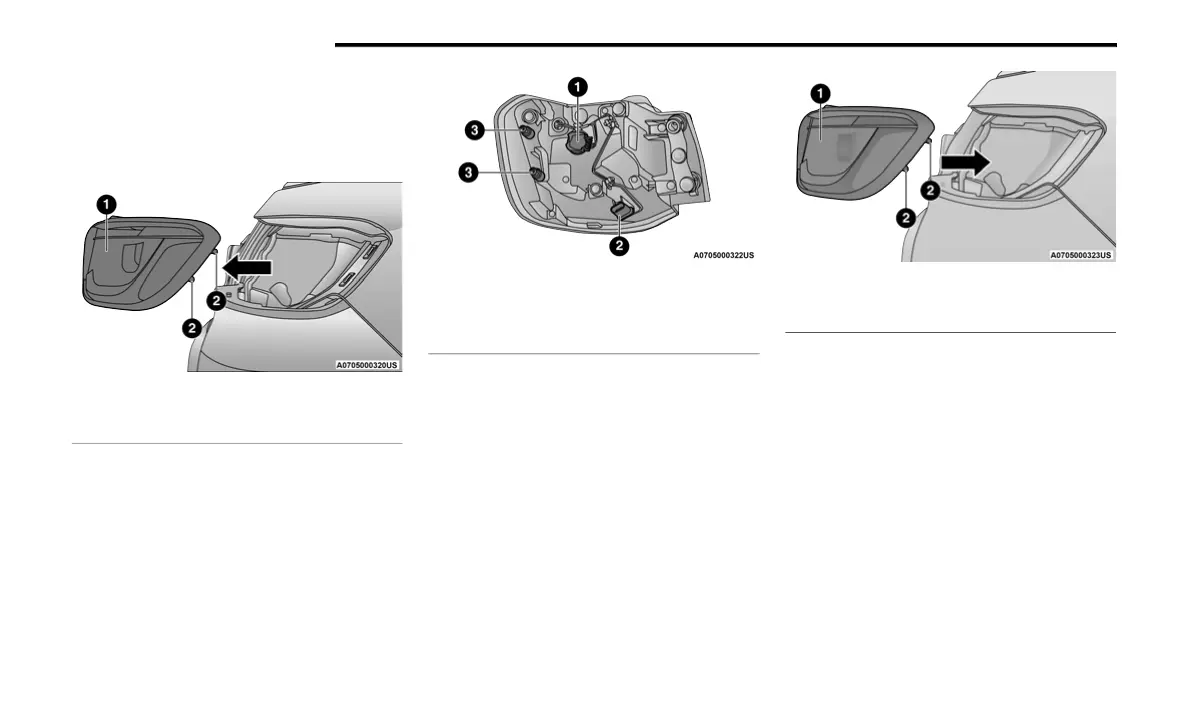

1 — Rear Body Side Tail Lamp
2 — Ball Stud
1 — Direction Indicator Bulb / Stop Lamp Bulb
2 — Electrical Connector
3 — Ball Studs
1 — Rear Body Side Tail Lamp
2 — Ball Stud
